Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 2 illustrations

Illustrations

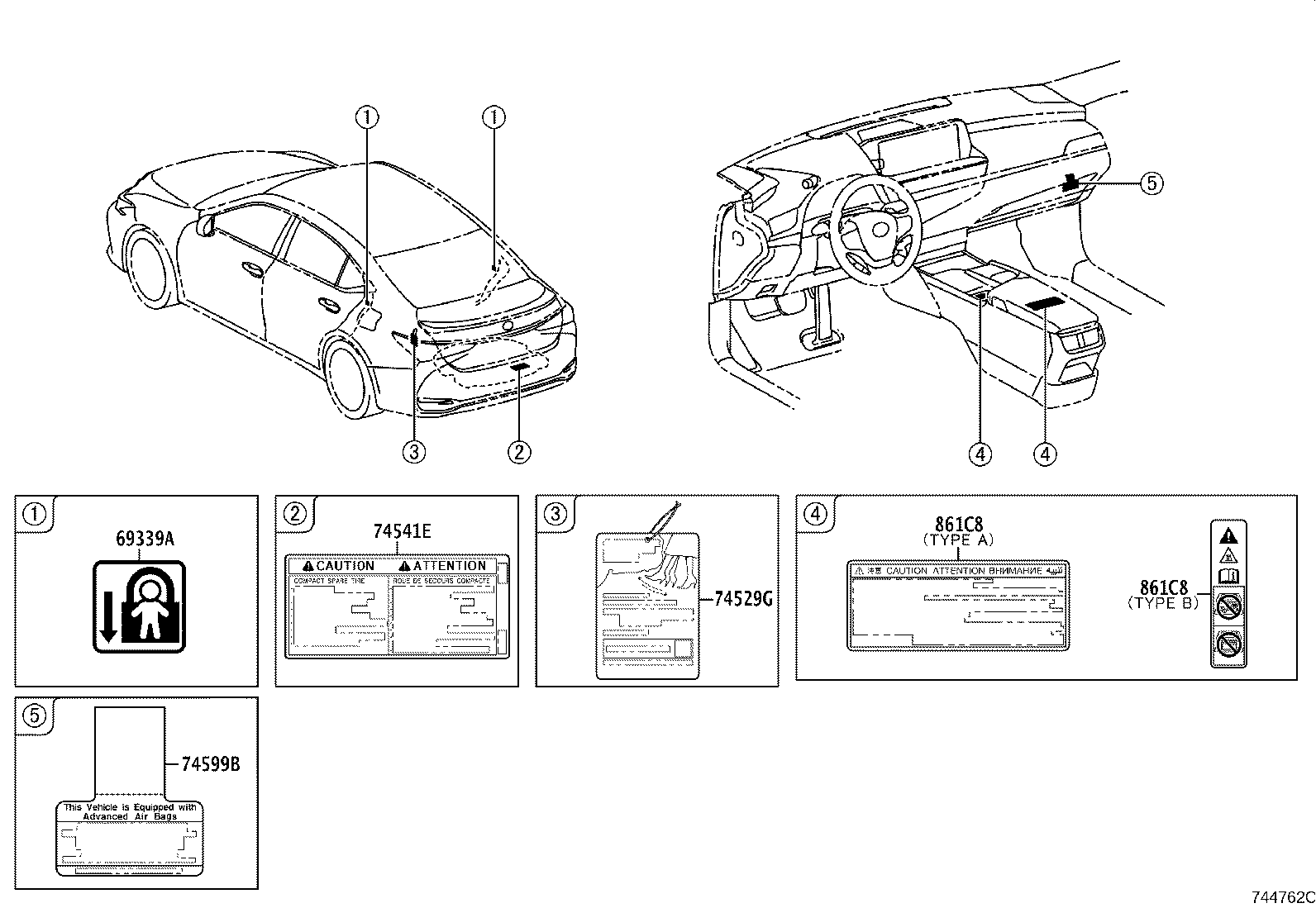

Figure 744761C 744761C 2018-06 → — Figure 744762C 744762C 2018-06 → —

Part groups

PNCDescription
11293D Label, Engine Caution
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
16793E Label, Cooling Fan Caution
69339A Plate, Child Protector Lock Caution
74514A Label, Certification Regulation Information
74529G Label, Back Door Caution
74541E Plate, Compact Spare Tire Caution
74559C Label, Fuel Information, NO.2
74596A Label, Side Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
861C8 Label, Mobile Wireless Charger Caution
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
