Toyota Lexus ES350/300H(Jpp
2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States
Supported model
Data version 2021-08
Radio Receiver & Amplifier & Condenser
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55217F | Retainer, Audio Amplifier |

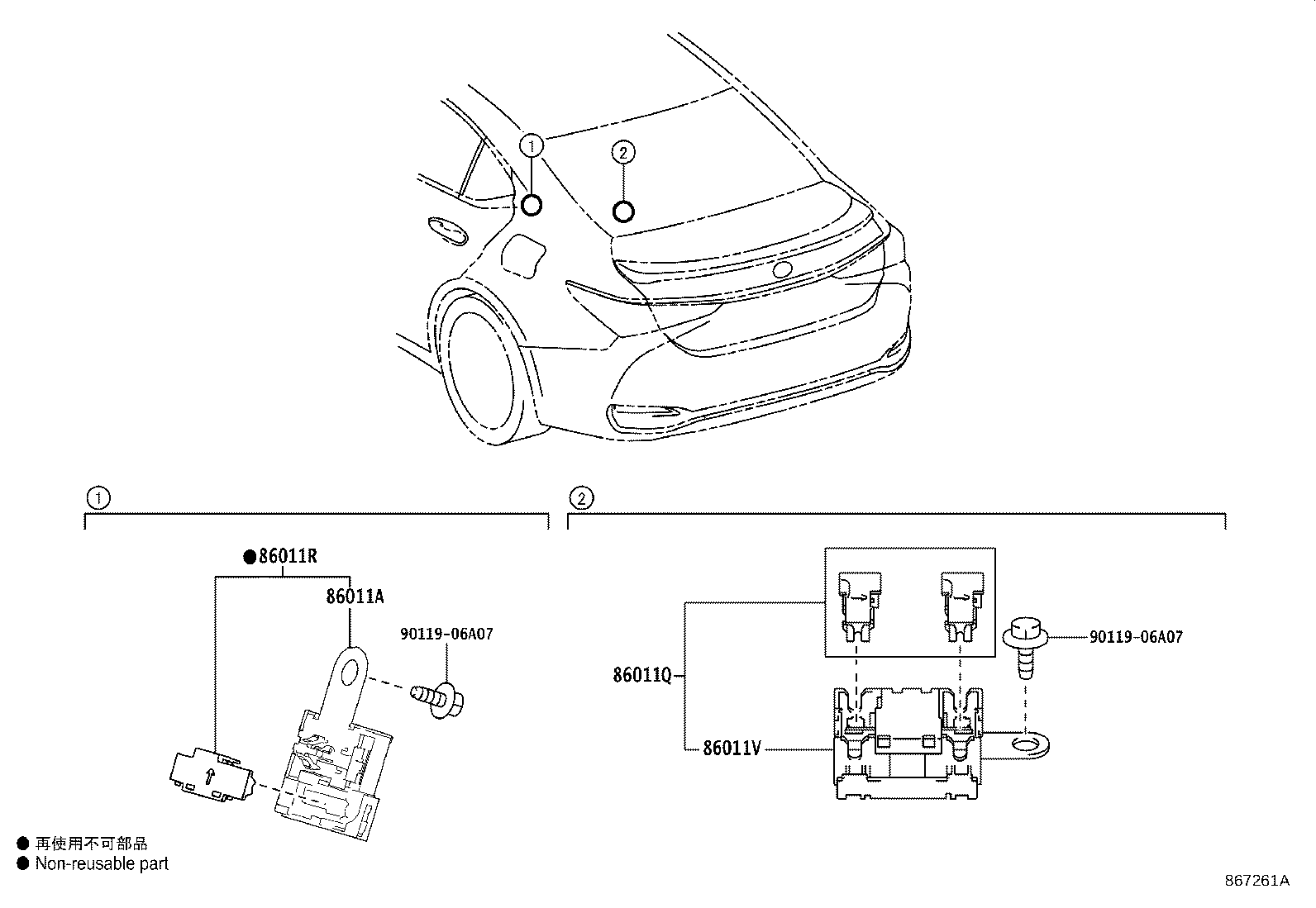

| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |
| 86011R | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |

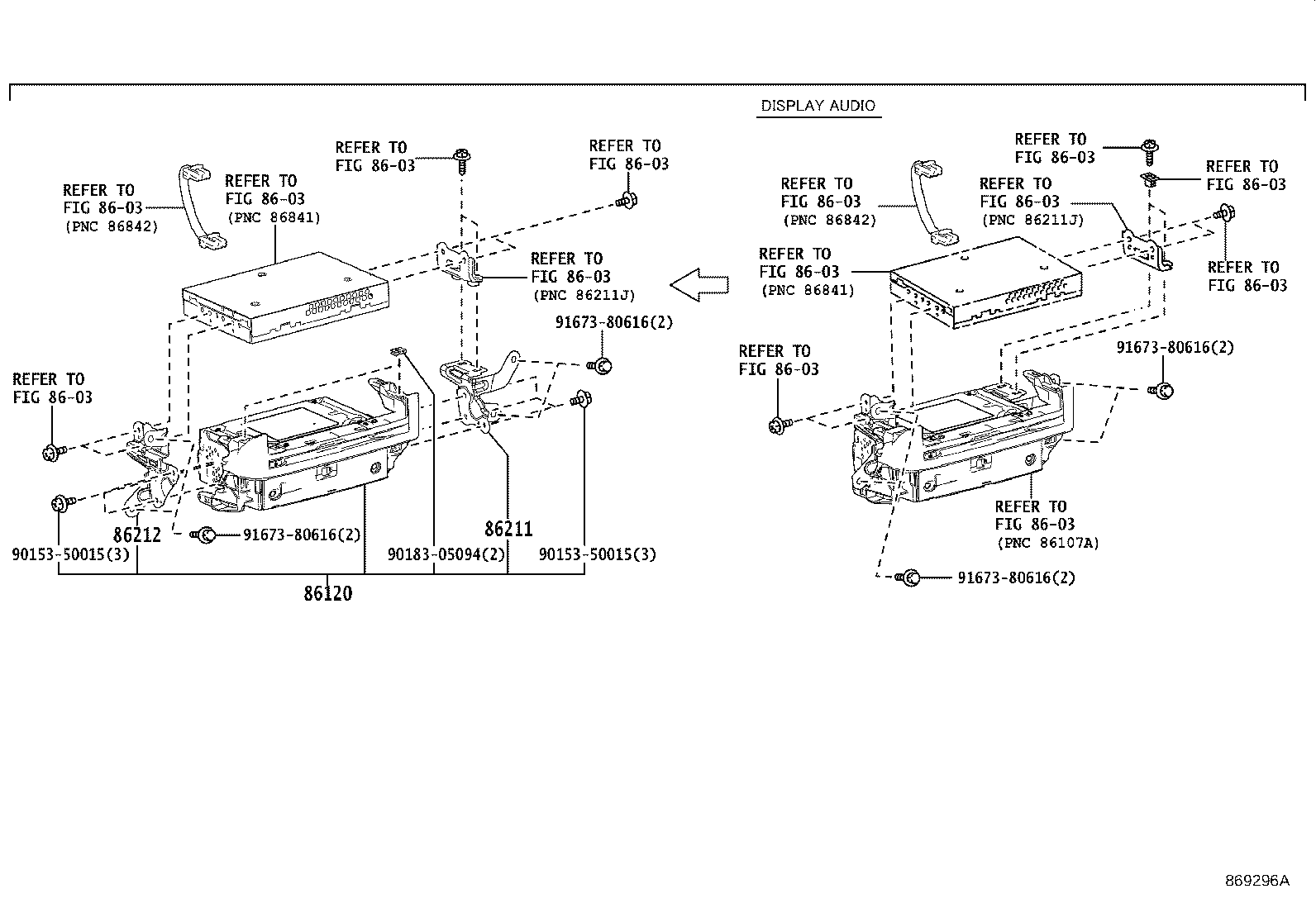

| 86120 | Receiver Assy, Radio |
| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86240 | Equalizer Assy,Stereo Component |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86844B | Retainer, Audio Amplifier Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
