Toyota Lexus ES350/300H(Jpp

2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

15 part groups · 4 illustrations

Illustrations

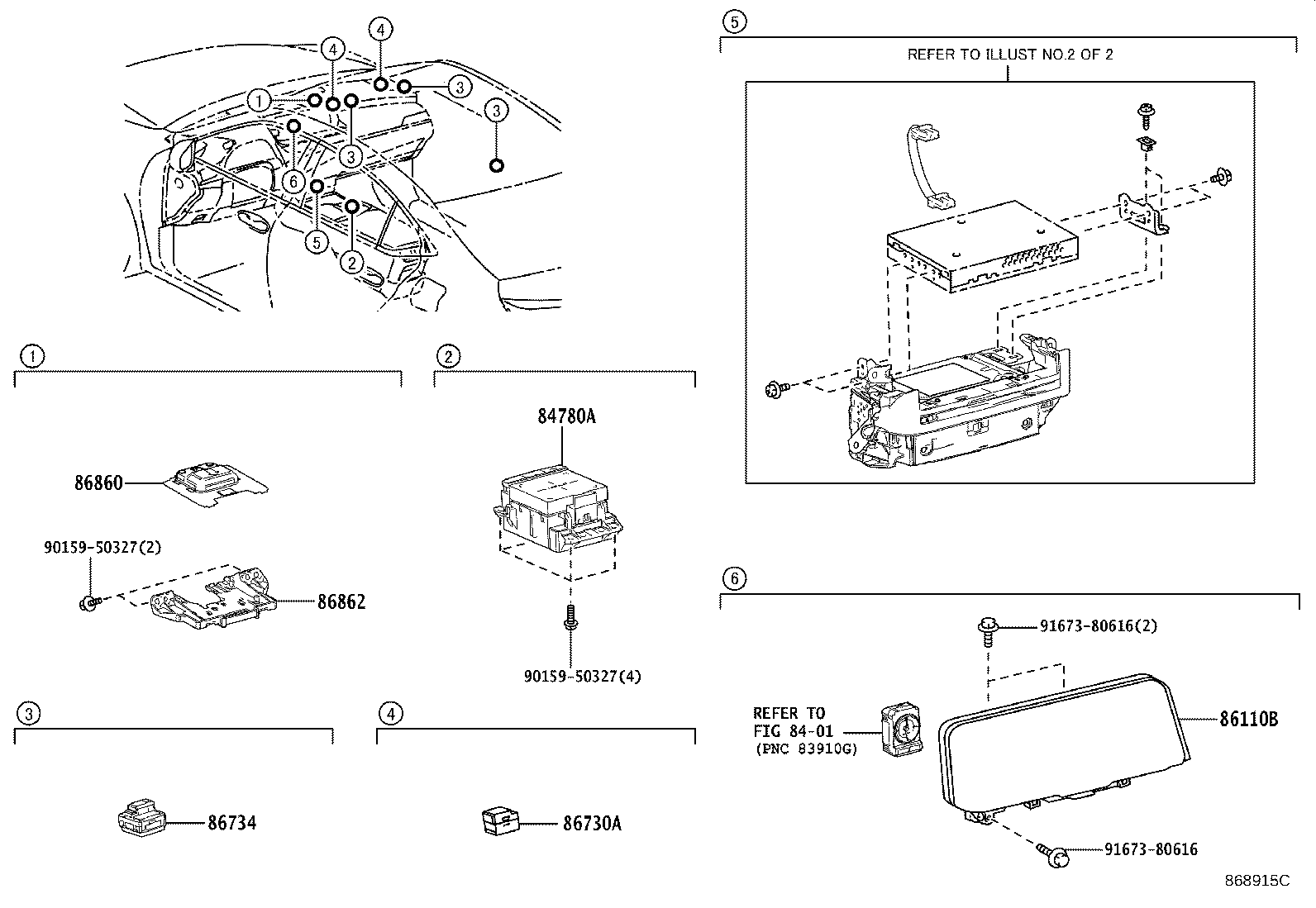

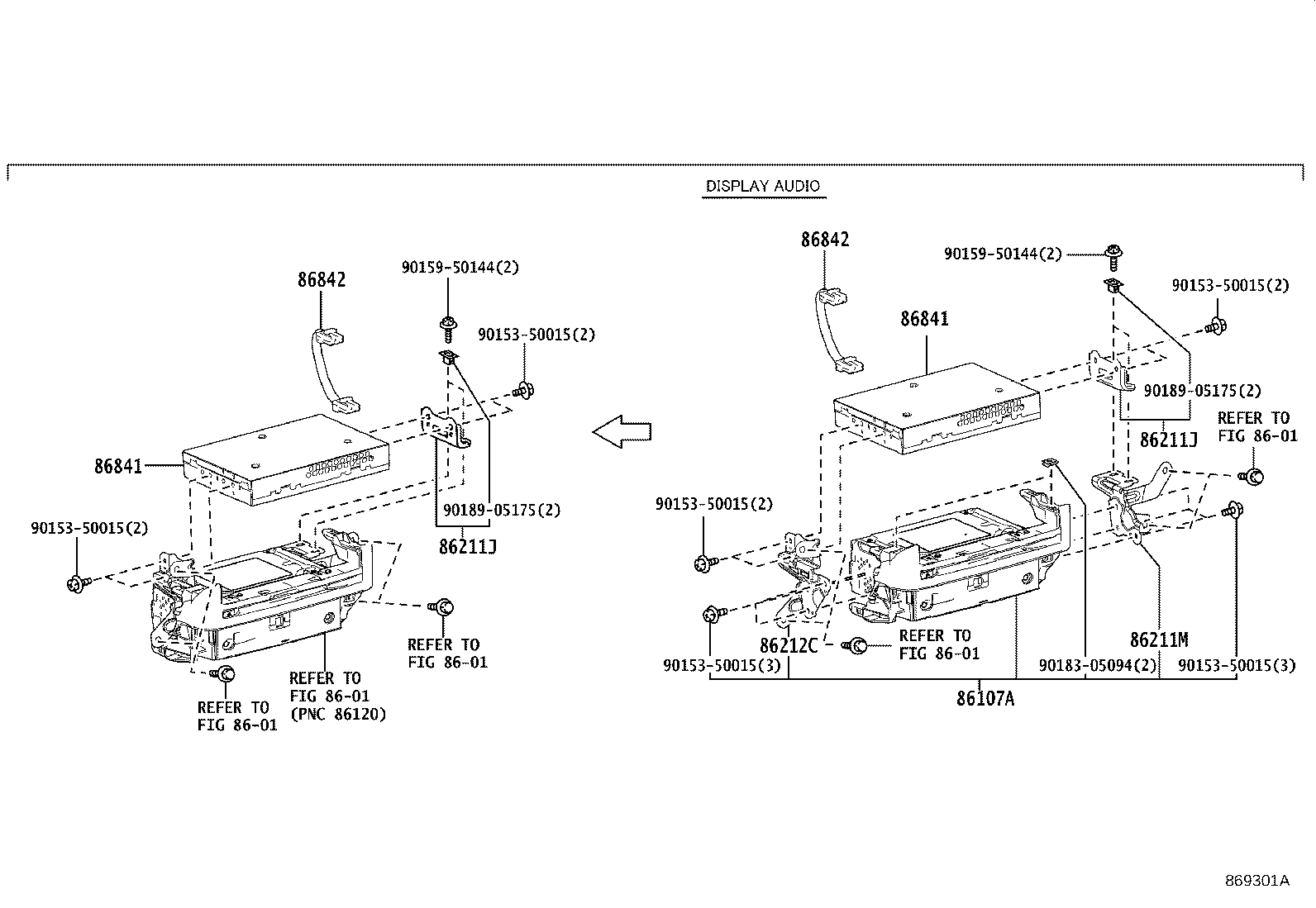

Figure 867280I 867280I 2018-06 → 2021-08 Figure 867280I 867280I 2018-06 → — Figure 868915C 868915C 2021-08 → — Figure 869301A 869301A 2021-08 → —

Part groups

PNCDescription
84780A Controller Assy, Remote Operation
86107A Receiver Sub-assy, Multi-media Module
86110B Multi-display Assy
86134A Parts, Multi-display
86211J Bracket, Radio Receiver, NO.1
86211M Bracket, Radio Receiver, NO.3
86212C Bracket, Radio Receiver, NO.2
86452 Panel, Sub-cluster Module, NO.1
86456 Cover, Multi-media Module
86730A Microphone Assy, Telephone
86734 Microphone, Active Noise Control
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
