Toyota Lexus ES350/300H(Jpp
2018-06 → present · chassis AXZH1#,GSZ10 · catalogue 2824A0 · United States
Supported model
Data version 2021-08
Heating & Air Conditioning - Compressor
7 part groups · 2 illustrations

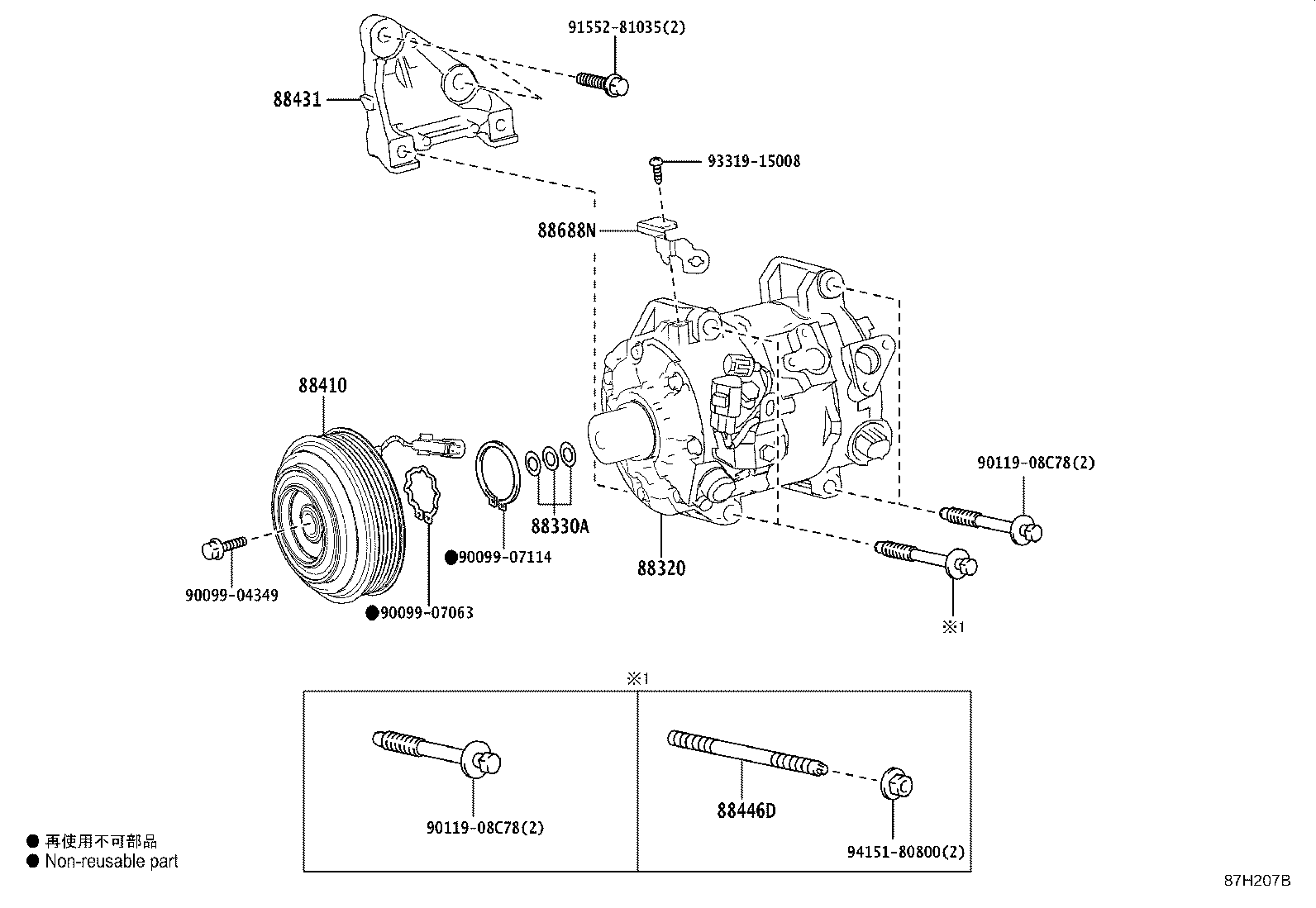

Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88446D | Bolt, Cooler |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
