Toyota Camry (NAP)

1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States

Discontinued model Data version 1992-05

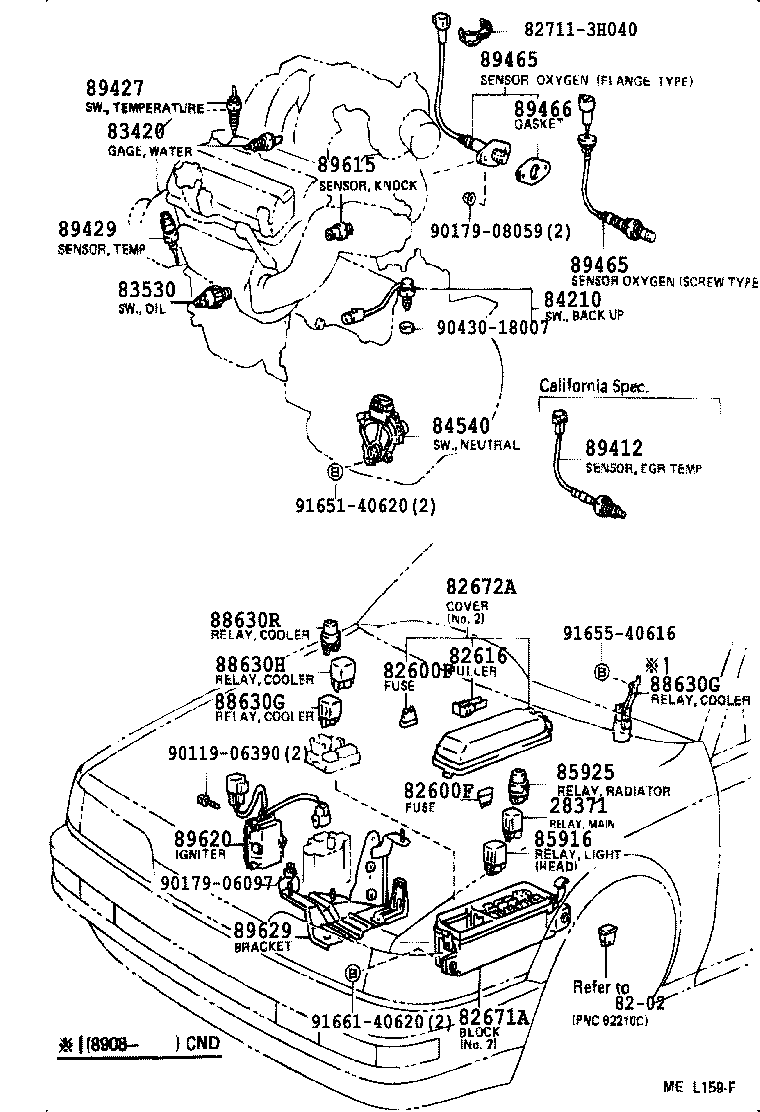

84B982 · 25 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
28371 — Relay, Ignition, NO.1
90987-04002 Relay, Ignition, NO.1
1989-09 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
82600F — Fuse, Fuse Block
90080-82012 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90080-82013 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90080-82014 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90080-82015 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90982-09002 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
90982-09003 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
90982-09004 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
90982-09005 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
82616 — Puller, Fuse
82616-12010 Puller, Fuse
1988-07 → 1991-09 ended
SV21,VZV21 —
82671A — Block, Junction
82671-14010 note Block, Junction
1988-07 → 1991-09 ended
SV21,VZV21 LE —
82671-20030 note Block, Junction
1988-07 → 1991-09 ended
SV21,VZV21 DX,STD —
82671-32030 note Block, Junction
1988-07 → 1991-09 ended
SV21,VZV21 —
82672A — Cover, Junction Block
82672-32050 note Cover, Junction Block
1988-07 → 1991-09 ended
SV21,VZV21 —
82672-32160 note Cover, Junction Block
1988-07 → 1989-06 ended
SV21 —
82672-32161 note Cover, Junction Block
1989-06 → 1991-09 ended
SV21,VZV21 —
82672-32200 note Cover, Junction Block
1988-07 → 1989-10 ended
SV21,VZV21 —
82672-32300 note Cover, Junction Block
1989-10 → 1991-09 ended
SV21,VZV21 —
83420 — Gage Assy, Water Temperature Sender
83420-16020 Gage Assy, Water Temperature Sender
1988-07 → 1991-09 ended
SV21 —
83420-20020 Gage Assy, Water Temperature Sender
1989-09 → 1991-09 ended
VZV21 —
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-30050 Switch Assy, Oil Pressure (FOR ENGINE)
1989-09 → 1991-02 ended
VZV21 —
83530-30051 Switch Assy, Oil Pressure (FOR ENGINE)
1991-02 → 1991-09 ended
VZV21 —
83530-30080 Switch Assy, Oil Pressure (FOR ENGINE)
1988-07 → 1991-09 ended
SV21 —
84210 — Switch Assy, Back-up Lamp
84210-12040 Switch Assy, Back-up Lamp
1988-07 → 1991-09 ended
SV21,VZV21 5F —
84540 — Switch Assy, Neutral Start
84540-32070 Switch Assy, Neutral Start
1988-07 → 1991-09 ended
SV21 4FC —
84540-32090 Switch Assy, Neutral Start
1989-09 → 1991-09 ended
VZV21 4FC —
85916 — Relay, Light Control
90987-02004 note Relay, Light Control
1988-07 → 1991-09 ended
SV21,VZV21 —
90987-02006 note Relay, Light Control
1988-07 → 1991-09 ended
SV21,VZV21 —
85925 — Relay, Radiator Fan
85925-32010 Relay, Radiator Fan
1989-09 → 1991-09 ended
VZV21 —
88630G — Relay Assy, Cooler
85926-30020 Relay Assy, Cooler
1988-07 → 1991-09 ended
SV21,VZV21 —
88630H — Relay Assy, Cooler
88630-32010 Relay Assy, Cooler
1988-07 → 1991-09 ended
SV21,VZV21 —
88630R — Relay Assy, Cooler, NO.3
90987-02004 Relay Assy, Cooler, NO.3
1988-07 → 1991-09 ended
SV21,VZV21 —
89412 — Sensor, E.G.R Gas Temperature
89412-12010 note Sensor, E.G.R Gas Temperature
1989-08 → 1991-09 ended
SV21 —
89412-12010 note Sensor, E.G.R Gas Temperature
1990-01 → 1991-09 ended
VZV21 —
89427 — Switch, Temperature Detect
89429-32020 Switch, Temperature Detect
1989-09 → 1991-09 ended
VZV21 —
89429 — Sensor, Oil Temperature
89429-16010 Sensor, Oil Temperature
1989-09 → 1991-09 ended
VZV21 —
89465 — Sensor, Oxygen
89465-29285 note Sensor, Oxygen
1989-09 → 1991-09 ended
VZV21 —
89465-32110 note Sensor, Oxygen
1989-08 → 1991-09 ended
SV21 —
89465-32120 note Sensor, Oxygen
1990-01 → 1991-09 ended
VZV21 —
89465-39145 note Sensor, Oxygen
1988-07 → 1989-08 ended
SV21 —
89465-39146 note Sensor, Oxygen
1989-08 → 1991-09 ended
SV21 —
89465-39205 note Sensor, Oxygen
1989-08 → 1991-09 ended
SV21 —
89466 — Gasket, Oxygen Sensor
89466-20020 Gasket, Oxygen Sensor
1988-10 → 1991-09 ended
SV21,VZV21 —
89466-30010 Gasket, Oxygen Sensor
1988-07 → 1988-10 ended
SV21 —
89615 — Sensor, Knock Control
89615-35040 Sensor, Knock Control
1989-09 → 1991-09 ended
VZV21 —
89620 — Igniter Assy
89620-32110 Igniter Assy
1989-09 → 1991-09 ended
VZV21 —
89621-32010 Igniter Assy
1988-07 → 1991-09 ended
SV21 —
89629 — Bracket, Igniter Assy
89629-32040 Bracket, Igniter Assy
1988-07 → 1991-09 ended
SV21 —
89629-32071 Bracket, Igniter Assy
1989-09 → 1991-09 ended
VZV21 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
