Toyota Camry (NAP)
1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States
Discontinued model
Data version 1992-05

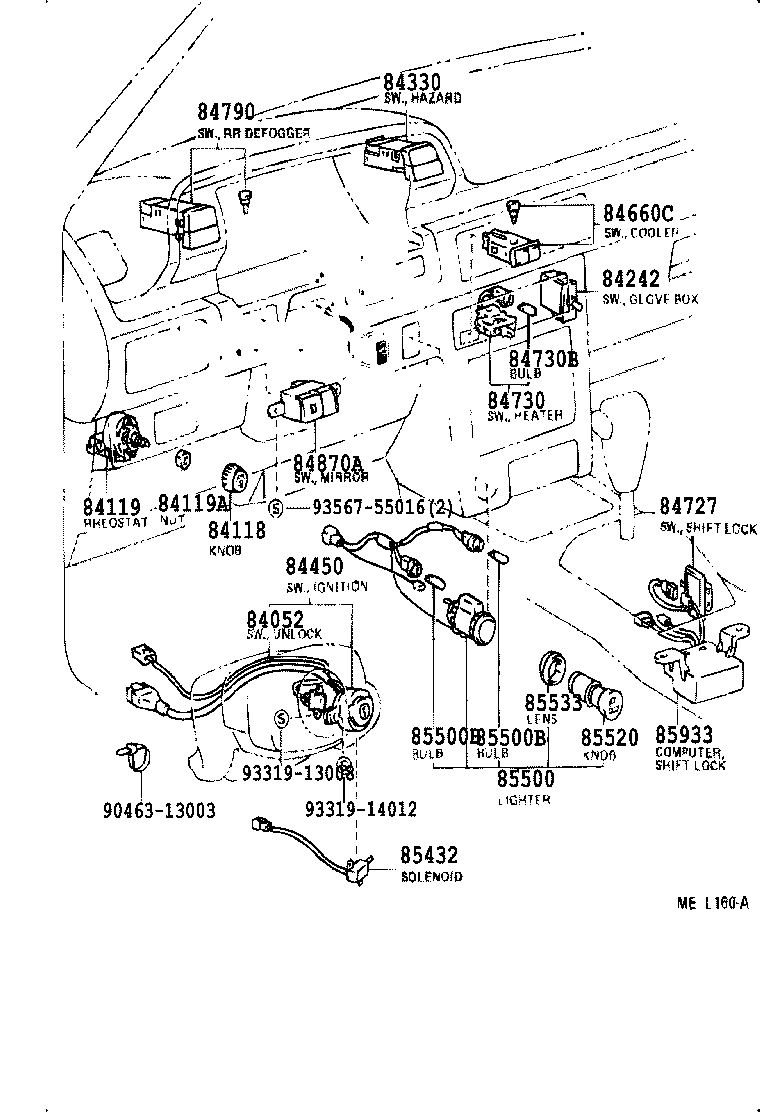

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-32010 |
Switch Assy, Un-lock Warning
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84118 — Knob, Light Control Rheostat | ||||
| 84118-20011 |
Knob, Light Control Rheostat
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84119 — Rheostat, Light Control | ||||
| 84119-03010 note |
Rheostat, Light Control
1989-08 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84119-32090 note |
Rheostat, Light Control
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84119A — Bolt OR Nut, Rheostat Control Set | ||||
| 90170-09167 |
Bolt OR Nut, Rheostat Control Set
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84242 — Switch, Glove Box Lamp | ||||
| 84242-20030 |
Switch, Glove Box Lamp
1988-07 → 1991-09
ended
|
SV21,VZV21 DX,LE | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-32160 note |
Switch Assy, Hazard Warning Signal
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84332-32180 |
Switch Assy, Hazard Warning Signal
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-32031 |
Switch Assy, Ignition OR Starter
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84660C — Switch, Cooler | ||||
| 84660-03010 |
Switch, Cooler
1988-07 → 1989-02
ended
|
SV21 DX,STD | — | |
| 84660-03011 |
Switch, Cooler
1989-02 → 1989-09
ended
|
SV21 DX,STD | — | |
| 84660-03012 |
Switch, Cooler
1989-09 → 1991-09
ended
|
SV21,VZV21 DX,STD | — | |
| 84727 — Switch, Shift Lock Control | ||||
| 84727-32010 |
Switch, Shift Lock Control
1988-07 → 1991-09
ended
|
SV21,VZV21 4FC | — | |
| 84730 — Switch Assy, Heater Blower | ||||
| 84732-32080 |
Switch Assy, Heater Blower
1988-07 → 1991-09
ended
|
SV21,VZV21 DX,STD | — | |
| 84730B — Bulb, Heater Blower Switch | ||||
| 81850-32160 note |
Bulb, Heater Blower Switch
1988-07 → 1991-09
ended
|
SV21,VZV21 DX,STD | — | |
| 84790 — Switch Assy, Rear Window Defogger | ||||
| 84790-03010 note |
Switch Assy, Rear Window Defogger
1989-08 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84790-32150 note |
Switch Assy, Rear Window Defogger
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-32070-B0 note |
Switch Assy, Outer Mirror
1988-07 → 1991-09
ended
|
SV21,VZV21 LE | — | |
| 84870-32070-D0 note |
Switch Assy, Outer Mirror
1988-07 → 1991-09
ended
|
SV21,VZV21 LE | — | |
| 84870-32070-E0 note |
Switch Assy, Outer Mirror
1988-07 → 1991-09
ended
|
SV21,VZV21 LE | — | |
| 84870-32070-J0 note |
Switch Assy, Outer Mirror
1988-07 → 1991-09
ended
|
SV21,VZV21 LE | — | |
| 85432 — Solenoid, Key Interlock | ||||
| 85432-32020 |
Solenoid, Key Interlock
1988-07 → 1991-09
ended
|
SV21,VZV21 4FC | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-03010 note |
Lighter Assy, Cigarette
1989-08 → 1991-09
ended
|
SV21,VZV21 | — | |
| 85500-32061 note |
Lighter Assy, Cigarette
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 90981-11014 note |
Bulb, Cigarette Lighter
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 85520 — Knob And Element Assy, Cigarette Lighter | ||||
| 85520-20080 |
Knob And Element Assy, Cigarette Lighter
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 85533 — Lens, Cigarette Lighter Indicator | ||||
| 85533-32010 |
Lens, Cigarette Lighter Indicator
1988-07 → 1991-09
ended
|
SV21,VZV21 | — | |
| 85933 — Computer, Shift Lock Control | ||||
| 85933-32010 |
Computer, Shift Lock Control
1988-07 → 1991-09
ended
|
SV21,VZV21 4FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
