Toyota Camry (NAP)

1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

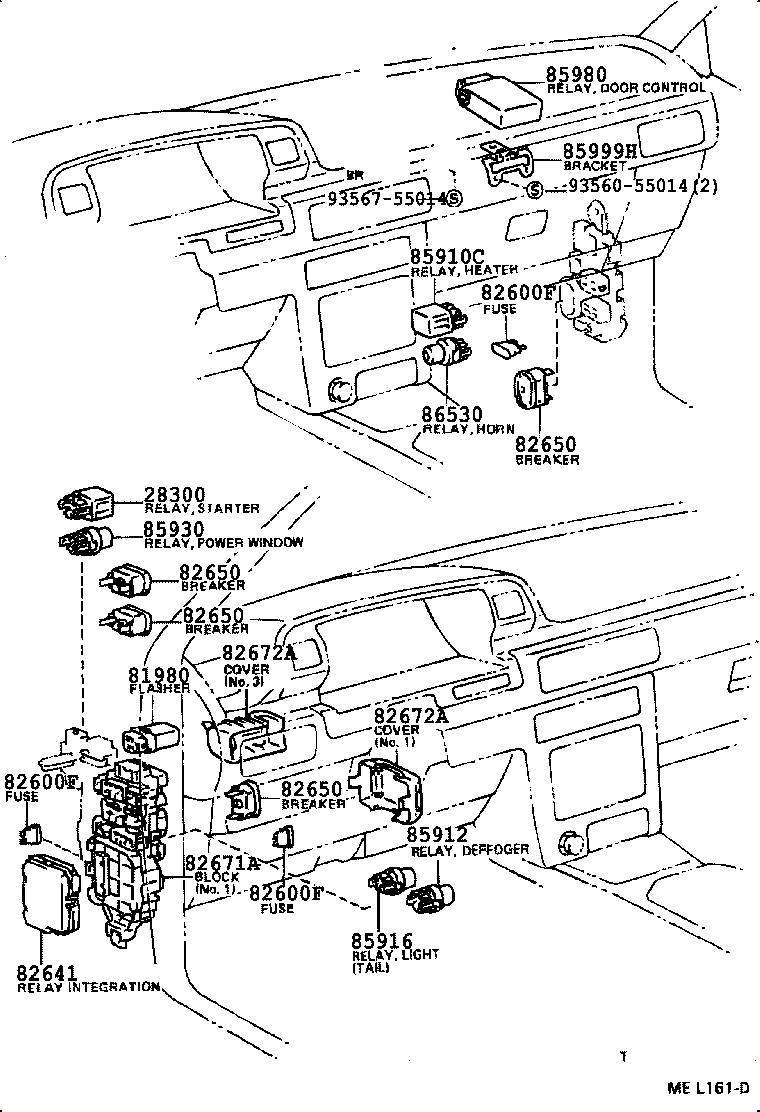

Exploded illustration 84B984 85980 — RELAY ASSY, DOOR CONTROL (5 parts) 85999H — BRACKET, RELAY (3 parts) 9356055014 — not listed in this catalogue 9356755014 — not listed in this catalogue 85910C — RELAY ASSY (FOR HEATER BLOWER MOTOR) (1 parts) 82600F — FUSE, FUSE BLOCK (8 parts) 86530 — RELAY ASSY, HORN (1 parts) 82650 — BREAKER ASSY, WIRING CIRCUIT, NO.1 (3 parts) 28300 — RELAY ASSY, STARTER (1 parts) 85930 — RELAY ASSY, POWER WINDOW (1 parts) 82650 — BREAKER ASSY, WIRING CIRCUIT, NO.1 (3 parts) 82650 — BREAKER ASSY, WIRING CIRCUIT, NO.1 (3 parts) 82672A — COVER, JUNCTION BLOCK (5 parts) 81980 — FLASHER ASSY, TURN SIGNAL (1 parts) 82672A — COVER, JUNCTION BLOCK (5 parts) 82600F — FUSE, FUSE BLOCK (8 parts) 82650 — BREAKER ASSY, WIRING CIRCUIT, NO.1 (3 parts) 85912 — RELAY, DEFOGGER (1 parts) 82671A — BLOCK, JUNCTION (3 parts) 82600F — FUSE, FUSE BLOCK (8 parts) 85916 — RELAY, LIGHT CONTROL (2 parts) 82641 — RELAY, INTEGRATION NO.1 (9 parts)
84B984 · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
28300 — Relay Assy, Starter
28300-16010 Relay Assy, Starter
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 5F —
81980 — Flasher Assy, Turn Signal
81980-12070 Flasher Assy, Turn Signal
1988-07 → 1991-09 ended
SV21,VZV21 —
82600F — Fuse, Fuse Block
90080-82012 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90080-82013 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90080-82014 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90080-82015 note Fuse, Fuse Block
1989-10 → 1991-09 ended
SV21,VZV21 —
90982-09002 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
90982-09003 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
90982-09004 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
90982-09005 note Fuse, Fuse Block
1988-07 → 1989-10 ended
SV21,VZV21 —
82641 — Relay, Integration NO.1
82641-24010 Relay, Integration NO.1
1990-09 → 1991-09 ended
SV21,VZV21 DX —
82641-32010 note Relay, Integration NO.1
1990-03 → 1991-09 ended
SV21,VZV21 DX —
82641-32010 Relay, Integration NO.1
1990-03 → 1990-09 ended
SV21,VZV21 DX —
82641-32020 Relay, Integration NO.1
1988-07 → 1990-01 ended
SV21,VZV21 LE —
82641-32021 Relay, Integration NO.1
1990-01 → 1991-09 ended
SV21,VZV21 LE —
82641-32030 note Relay, Integration NO.1
1989-08 → 1990-03 ended
SV21,VZV21 DX —
82641-32030 Relay, Integration NO.1
1989-08 → 1990-03 ended
SV21,VZV21 DX —
82641-32030 note Relay, Integration NO.1
1988-07 → 1989-08 ended
SV21 DX —
82641-32030 Relay, Integration NO.1
1988-07 → 1989-08 ended
SV21 DX —
82650 — Breaker Assy, Wiring Circuit, NO.1
82650-20011 note Breaker Assy, Wiring Circuit, NO.1
1988-07 → 1991-09 ended
SV21,VZV21 —
82650-20011 note Breaker Assy, Wiring Circuit, NO.1
1990-09 → 1991-09 ended
SV21,VZV21 LE —
82650-20020 note Breaker Assy, Wiring Circuit, NO.1
1988-07 → 1991-09 ended
SV21,VZV21 —
82671A — Block, Junction
82671-14010 note Block, Junction
1988-07 → 1991-09 ended
SV21,VZV21 LE —
82671-20030 note Block, Junction
1988-07 → 1991-09 ended
SV21,VZV21 DX,STD —
82671-32030 note Block, Junction
1988-07 → 1991-09 ended
SV21,VZV21 —
82672A — Cover, Junction Block
82672-32050 note Cover, Junction Block
1988-07 → 1991-09 ended
SV21,VZV21 —
82672-32160 note Cover, Junction Block
1988-07 → 1989-06 ended
SV21 —
82672-32161 note Cover, Junction Block
1989-06 → 1991-09 ended
SV21,VZV21 —
82672-32200 note Cover, Junction Block
1988-07 → 1989-10 ended
SV21,VZV21 —
82672-32300 note Cover, Junction Block
1989-10 → 1991-09 ended
SV21,VZV21 —
85910C — Relay Assy (FOR HEATER BLOWER MOTOR)
90987-04002 Relay Assy (FOR HEATER BLOWER MOTOR)
1988-07 → 1991-09 ended
SV21,VZV21 —
85912 — Relay, Defogger
90987-02004 Relay, Defogger
1988-07 → 1991-09 ended
SV21,VZV21 —
85916 — Relay, Light Control
90987-02004 note Relay, Light Control
1988-07 → 1991-09 ended
SV21,VZV21 —
90987-02006 note Relay, Light Control
1988-07 → 1991-09 ended
SV21,VZV21 —
85930 — Relay Assy, Power Window
90987-02004 Relay Assy, Power Window
1988-07 → 1991-09 ended
SV21,VZV21 DX,LE —
85980 — Relay Assy, Door Control
85980-32060 Relay Assy, Door Control
1988-07 → 1989-01 ended
SV21 LE —
85980-32060 Relay Assy, Door Control
1988-07 → 1989-08 ended
SV21 DX —
85980-32060 Relay Assy, Door Control
1989-01 → 1989-08 ended
SV21 LE —
85980-32090 Relay Assy, Door Control
1989-08 → 1991-09 ended
SV21,VZV21 LE —
85980-32090 Relay Assy, Door Control
1989-08 → 1991-09 ended
SV21,VZV21 DX —
85999H — Bracket, Relay
85999-32030 Bracket, Relay
1988-07 → 1989-01 ended
SV21 LE —
85999-32030 Bracket, Relay
1988-07 → 1991-09 ended
SV21,VZV21 DX —
85999-32030 Bracket, Relay
1989-01 → 1991-09 ended
SV21,VZV21 LE —
86530 — Relay Assy, Horn
90987-02004 Relay Assy, Horn
1988-07 → 1991-09 ended
SV21,VZV21 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
