Toyota Camry (NAP)

1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

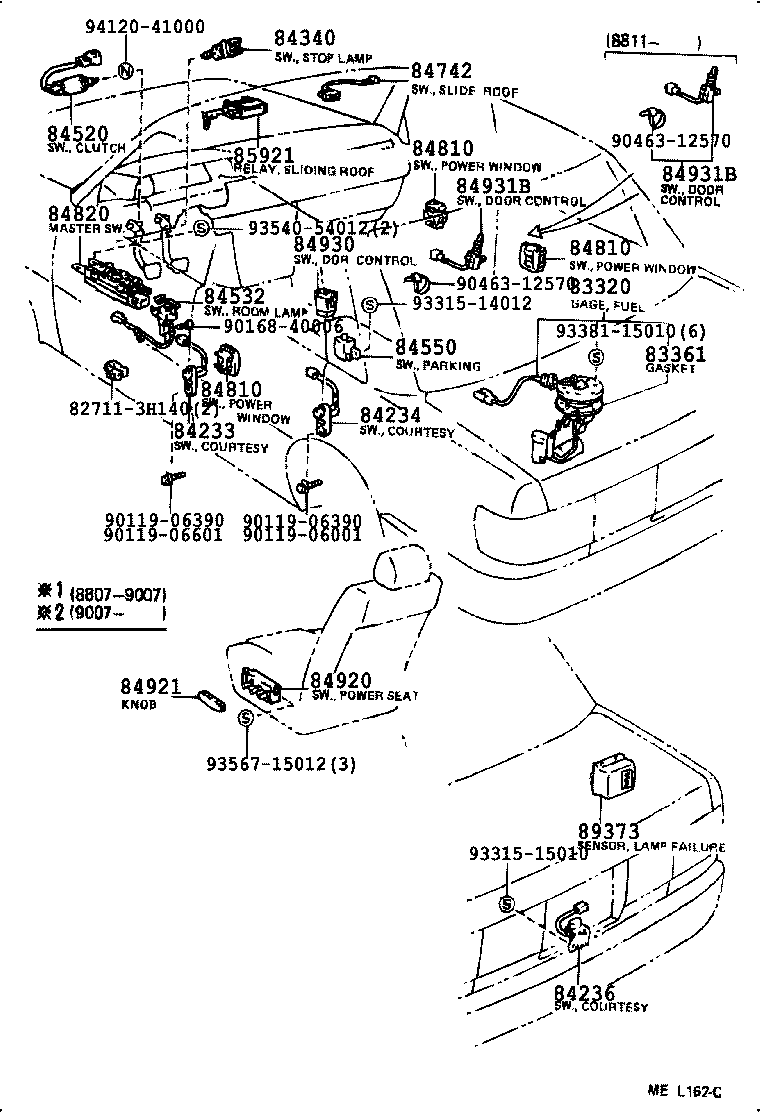

Exploded illustration 84B985 9412041000 — not listed in this catalogue 84340 — SWITCH ASSY, STOP LAMP (2 parts) 84742 — SWITCH, SLIDE ROOF LIMIT (1 parts) 84520 — SWITCH ASSY, CLUTCH START (2 parts) 9046312570 — not listed in this catalogue 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (16 parts) 85921 — RELAY, SLIDING ROOF CONTROL (1 parts) 84931B — SWITCH, DOOR CONTROL (5 parts) 84931B — SWITCH, DOOR CONTROL (5 parts) 84820 — MASTER SWITCH ASSY, POWER WINDOW REGULATOR (3 parts) 9354054012 — not listed in this catalogue 84930 — SWITCH ASSY, DOOR CONTROL (3 parts) 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (16 parts) 9046312570 — not listed in this catalogue 83320 — GAGE ASSY, FUEL SENDER (2 parts) 84532 — SWITCH, ROOM LAMP RETAINER (3 parts) 9331514012 — not listed in this catalogue 9016840006 — not listed in this catalogue 9338115010 — not listed in this catalogue 84550 — SWITCH ASSY, PARKING BRAKE (1 parts) 83361 — GASKET, FUEL SENDER GAGE (1 parts) 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (16 parts) 827113H140 — not listed in this catalogue 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (2 parts) 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (2 parts) 9011906390 — not listed in this catalogue 9011906390 — not listed in this catalogue 9011906601 — not listed in this catalogue 9011906001 — not listed in this catalogue 84920 — SWITCH ASSY, POWER SEAT (1 parts) 84921 — KNOB, POWER SEAT SWITCH (8 parts) 9356715012 — not listed in this catalogue 89373 — SENSOR, LAMP FAILURE INDICATOR (1 parts) 9331515010 — not listed in this catalogue 84236 — SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM) (1 parts)
84B985 · 21 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
83320 — Gage Assy, Fuel Sender
83320-39785 Gage Assy, Fuel Sender
1988-07 → 1991-09 ended
SV21,VZV21 —
83320-39795 note Gage Assy, Fuel Sender
1988-07 → 1991-09 ended
SV21 LE —
83361 — Gasket, Fuel Sender Gage
83361-32020 Gasket, Fuel Sender Gage
1988-07 → 1991-09 ended
SV21,VZV21 —
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84231-32020 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1988-07 → 1990-07 ended
SV21,VZV21 —
84231-32070 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1990-07 → 1991-09 ended
SV21,VZV21 —
84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84231-12070 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1990-07 → 1991-09 ended
SV21,VZV21 —
84231-24010 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1988-07 → 1990-07 ended
SV21,VZV21 —
84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84231-20110 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1988-07 → 1991-09 ended
SV21,VZV21 —
84340 — Switch Assy, Stop Lamp
84340-22100 note Switch Assy, Stop Lamp
1988-07 → 1991-09 ended
SV21,VZV21 —
84340-30030 Switch Assy, Stop Lamp
1988-07 → 1991-09 ended
SV21,VZV21 —
84520 — Switch Assy, Clutch Start
84520-32020 Switch Assy, Clutch Start
1988-07 → 1990-03 ended
SV21,VZV21 5F —
84520-32021 Switch Assy, Clutch Start
1990-03 → 1991-09 ended
SV21,VZV21 5F —
84532 — Switch, Room Lamp Retainer
84532-32030 Switch, Room Lamp Retainer
1988-07 → 1990-03 ended
SV21,VZV21 LE —
84532-32030 Switch, Room Lamp Retainer
1990-03 → 1990-04 ended
SV21,VZV21 DX,LE —
84532-32030 Switch, Room Lamp Retainer
1990-04 → 1991-09 ended
SV21,VZV21 LE —
84550 — Switch Assy, Parking Brake
84550-12060 Switch Assy, Parking Brake
1988-07 → 1991-09 ended
SV21,VZV21 —
84742 — Switch, Slide Roof Limit
84742-32010 Switch, Slide Roof Limit
1990-11 → 1991-09 ended
SV21,VZV21 DX,LE —
84810 — Switch Assy, Power Window Regulator
84810-03010 note Switch Assy, Power Window Regulator
1989-08 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-03020-B0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-03020-D0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-03020-E0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-03020-J0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-32060-B0 note Switch Assy, Power Window Regulator
1988-07 → 1989-09 ended
SV21 DX,LE —
84810-32060-B0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-32060-D0 note Switch Assy, Power Window Regulator
1988-07 → 1989-09 ended
SV21 DX,LE —
84810-32060-D0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-32060-E0 note Switch Assy, Power Window Regulator
1988-07 → 1989-09 ended
SV21 DX,LE —
84810-32060-E0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-32060-J0 note Switch Assy, Power Window Regulator
1988-07 → 1989-09 ended
SV21 DX,LE —
84810-32060-J0 note Switch Assy, Power Window Regulator
1989-09 → 1991-09 ended
SV21,VZV21 DX,LE —
84810-32070 note Switch Assy, Power Window Regulator
1988-07 → 1988-10 ended
SV21 DX,LE —
84810-32080 note Switch Assy, Power Window Regulator
1988-10 → 1989-08 ended
SV21 DX,LE —
84810-32080 note Switch Assy, Power Window Regulator
1989-08 → 1991-09 ended
SV21,VZV21 DX,LE —
84820 — Master Switch Assy, Power Window Regulator
84820-03010 note Master Switch Assy, Power Window Regulator
1989-08 → 1991-09 ended
SV21,VZV21 DX,LE —
84820-32150 Master Switch Assy, Power Window Regulator
1988-07 → 1989-08 ended
SV21 DX,LE —
84820-32150 note Master Switch Assy, Power Window Regulator
1989-08 → 1991-09 ended
SV21,VZV21 DX,LE —
84920 — Switch Assy, Power Seat
84922-14020 Switch Assy, Power Seat
1988-07 → 1991-09 ended
SV21,VZV21 LE —
84921 — Knob, Power Seat Switch
84921-30030-B0 note Knob, Power Seat Switch
1988-07 → 1989-06 ended
SV21 LE —
84921-30030-D0 note Knob, Power Seat Switch
1988-07 → 1989-06 ended
SV21 LE —
84921-30030-E0 note Knob, Power Seat Switch
1988-07 → 1989-06 ended
SV21 LE —
84921-30030-J0 note Knob, Power Seat Switch
1988-07 → 1989-06 ended
SV21 LE —
84921-32010-B0 note Knob, Power Seat Switch
1989-06 → 1991-09 ended
SV21,VZV21 LE —
84921-32010-D0 note Knob, Power Seat Switch
1989-06 → 1991-09 ended
SV21,VZV21 LE —
84921-32010-E0 note Knob, Power Seat Switch
1989-06 → 1991-09 ended
SV21,VZV21 LE —
84921-32010-J0 note Knob, Power Seat Switch
1989-06 → 1991-09 ended
SV21,VZV21 LE —
84930 — Switch Assy, Door Control
84930-03010 note Switch Assy, Door Control
1989-08 → 1991-09 ended
SV21,VZV21 DX,LE —
84930-32040 Switch Assy, Door Control
1988-07 → 1989-08 ended
SV21 DX,LE —
84930-32040 note Switch Assy, Door Control
1989-08 → 1991-09 ended
SV21,VZV21 DX,LE —
84931B — Switch, Door Control
84931-32040 Switch, Door Control
1988-07 → 1988-11 ended
SV21 LE —
84931-32040 Switch, Door Control
1988-07 → 1988-11 ended
SV21 DX —
84931-39015 Switch, Door Control
1988-11 → 1989-01 ended
SV21 LE —
84931-39015 Switch, Door Control
1988-11 → 1991-09 ended
SV21,VZV21 DX —
84931-39015 Switch, Door Control
1989-01 → 1991-09 ended
SV21,VZV21 LE —
85921 — Relay, Sliding Roof Control
85921-32010 Relay, Sliding Roof Control
1990-11 → 1991-09 ended
SV21,VZV21 DX,LE —
89373 — Sensor, Lamp Failure Indicator
89373-32120 Sensor, Lamp Failure Indicator
1988-07 → 1991-09 ended
SV21,VZV21 DX,LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
