Toyota Camry (NAP)

1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

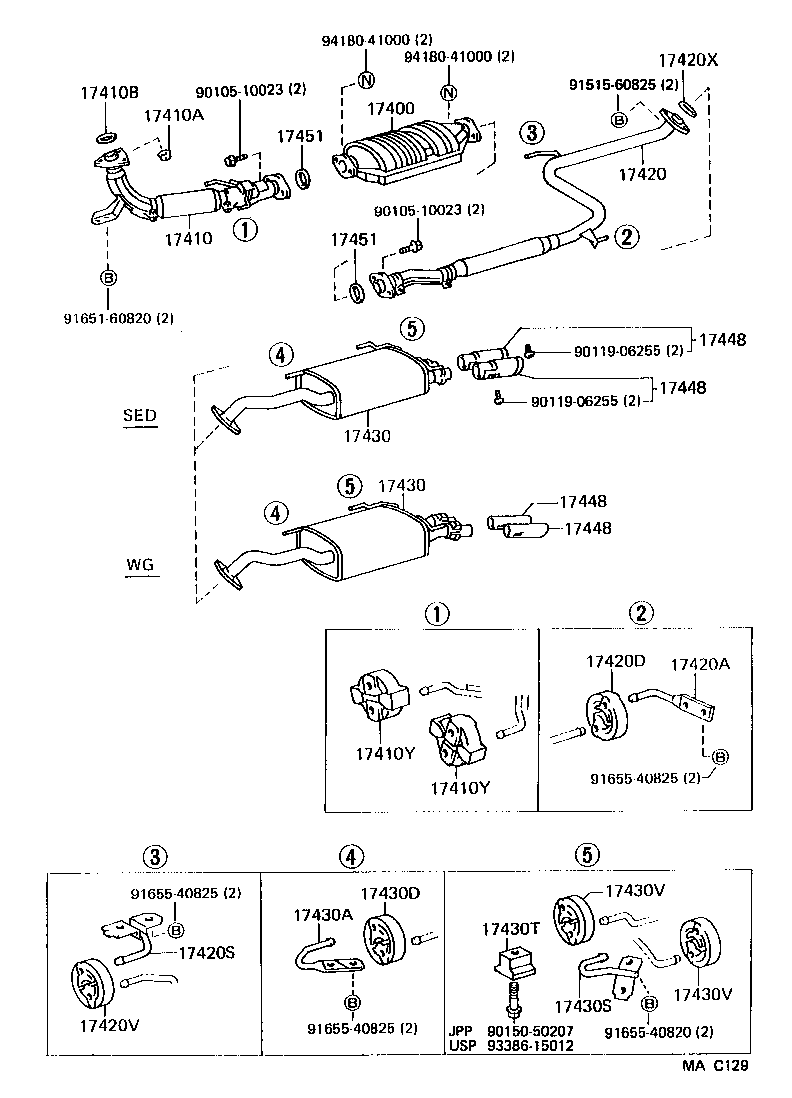

Exploded illustration MAC129 9418041000 — not listed in this catalogue 9418041000 — not listed in this catalogue 17420X — GASKET, EXHAUST PIPE, CENTER (4 parts) 9151560825 — not listed in this catalogue 9010510023 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (1 parts) 17400 — CONVERTER ASSY, W/CATALYST (2 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17451 — GASKET, EXHAUST PIPE (5 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (12 parts) 9010510023 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (9 parts) 17451 — GASKET, EXHAUST PIPE (5 parts) 9165160820 — not listed in this catalogue 17448 — BAFFLE, TAILPIPE (2 parts) 9011906255 — not listed in this catalogue 17448 — BAFFLE, TAILPIPE (2 parts) 9011906255 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (8 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (8 parts) 17448 — BAFFLE, TAILPIPE (2 parts) 17448 — BAFFLE, TAILPIPE (2 parts) 17420D — BOLT OR RING, EXHAUST PIPE CENTER, FRONT (3 parts) 17420A — BRACKET, EXHAUST PIPE CENTER, FRONT (1 parts) 17410Y — BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) (3 parts) 9165540825 — not listed in this catalogue 17410Y — BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) (3 parts) 17430V — BOLT OR RING, EXHAUST TAILPIPE (FOR REAR) (2 parts) 17430D — BOLT OR RING, EXHAUST TAILPIPE (FOR FRONT) (2 parts) 9165540825 — not listed in this catalogue 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (1 parts) 17430T — CUSHION, EXHAUST TAILPIPE (FOR REAR) (1 parts) 17420S — BRACKET, EXHAUST PIPE CENTER, REAR (1 parts) 17430V — BOLT OR RING, EXHAUST TAILPIPE (FOR REAR) (2 parts) 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (1 parts) 17420V — BOLT OR RING, EXHAUST PIPE CENTER, REAR (3 parts) 9165540825 — not listed in this catalogue 9015050207 — not listed in this catalogue 9165540820 — not listed in this catalogue 9338615012 — not listed in this catalogue
MAC129 · 26 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
17400 — Converter Assy, W/Catalyst
18450-62050 Converter Assy, W/Catalyst
1989-09 → 1991-09 ended
2VZFE VZV21 —
18450-62060 note Converter Assy, W/Catalyst
1989-10 → 1991-09 ended
2VZFE VZV21 —
17410 — Pipe Assy, Exhaust, Front
17410-03010 Pipe Assy, Exhaust, Front
1988-07 → 1989-10 ended
3SFE SV21 —
17410-03011 Pipe Assy, Exhaust, Front
1989-10 → 1991-04 ended
3SFE SV21 —
17410-03012 Pipe Assy, Exhaust, Front
1991-04 → 1991-09 ended
3SFE SV21 —
17410-07010 Pipe Assy, Exhaust, Front
1989-09 → 1989-10 ended
2VZFE VZV21 —
17410-07011 Pipe Assy, Exhaust, Front
1989-10 → 1991-03 ended
2VZFE VZV21 —
17410-07012 Pipe Assy, Exhaust, Front
1991-03 → 1991-04 ended
2VZFE VZV21 —
17410-07013 Pipe Assy, Exhaust, Front
1991-04 → 1991-05 ended
2VZFE VZV21 —
17410-07014 Pipe Assy, Exhaust, Front
1991-05 → 1991-09 ended
2VZFE VZV21 —
17410-74501 note Pipe Assy, Exhaust, Front
1989-10 → 1991-09 ended
3SFE SV21 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17410B — Gasket, Exhaust Pipe
90917-06042 Gasket, Exhaust Pipe
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17410Y — Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17565-03030 Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
1989-09 → 1991-09 ended
3SFE SV21 —
17565-11100 Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
1988-07 → 1989-09 ended
3SFE SV21 —
17565-62010 Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
1989-09 → 1991-09 ended
2VZFE VZV21 —
17420 — Pipe Assy, Exhaust, Center
17420-03010 Pipe Assy, Exhaust, Center
1988-07 → 1989-10 ended
3SFE SV21 —
17420-03011 Pipe Assy, Exhaust, Center
1989-10 → 1991-09 ended
3SFE SV21 —
17420-07010 Pipe Assy, Exhaust, Center
1989-09 → 1989-10 ended
2VZFE VZV21 —
17420-07011 Pipe Assy, Exhaust, Center
1989-10 → 1991-03 ended
2VZFE VZV21 —
17420-07012 Pipe Assy, Exhaust, Center
1991-03 → 1991-05 ended
2VZFE VZV21 —
17420-07013 Pipe Assy, Exhaust, Center
1991-05 → 1991-09 ended
2VZFE VZV21 —
17420-07020 note Pipe Assy, Exhaust, Center
1989-10 → 1990-01 ended
2VZFE VZV21 —
17420-07021 note Pipe Assy, Exhaust, Center
1990-01 → 1991-05 ended
2VZFE VZV21 —
17420-07022 note Pipe Assy, Exhaust, Center
1991-05 → 1991-09 ended
2VZFE VZV21 —
17420-62030 note Pipe Assy, Exhaust, Center
1989-10 → 1990-02 ended
2VZFE VZV21 —
17420-62031 note Pipe Assy, Exhaust, Center
1990-02 → 1991-09 ended
2VZFE VZV21 —
17420-74371 note Pipe Assy, Exhaust, Center
1989-10 → 1991-09 ended
3SFE SV21 —
17420A — Bracket, Exhaust Pipe Center, Front
17572-63050 Bracket, Exhaust Pipe Center, Front
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17420D — Bolt OR Ring, Exhaust Pipe Center, Front
17565-03030 Bolt OR Ring, Exhaust Pipe Center, Front
1989-09 → 1991-09 ended
3SFE SV21 —
17565-11100 Bolt OR Ring, Exhaust Pipe Center, Front
1988-07 → 1989-09 ended
3SFE SV21 —
17565-62010 Bolt OR Ring, Exhaust Pipe Center, Front
1989-09 → 1991-09 ended
2VZFE VZV21 —
17420S — Bracket, Exhaust Pipe Center, Rear
17507-63030 Bracket, Exhaust Pipe Center, Rear
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17420V — Bolt OR Ring, Exhaust Pipe Center, Rear
17565-03030 Bolt OR Ring, Exhaust Pipe Center, Rear
1989-09 → 1991-09 ended
3SFE SV21 —
17565-11100 Bolt OR Ring, Exhaust Pipe Center, Rear
1988-07 → 1989-09 ended
3SFE SV21 —
17565-62010 Bolt OR Ring, Exhaust Pipe Center, Rear
1989-09 → 1991-09 ended
2VZFE VZV21 —
17420X — Gasket, Exhaust Pipe, Center
90917-06045 Gasket, Exhaust Pipe, Center
1991-04 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
90917-06046 Gasket, Exhaust Pipe, Center
1989-09 → 1989-10 ended
2VZFE VZV21 —
90917-06047 Gasket, Exhaust Pipe, Center
1988-07 → 1989-10 ended
3SFE SV21 —
90917-06047 Gasket, Exhaust Pipe, Center
1989-10 → 1991-04 ended
3SFE,2VZFE SV21,VZV21 —
17430 — Pipe Assy, Exhaust, Tail
17430-03010 Pipe Assy, Exhaust, Tail
1988-07 → 1989-10 ended
3SFE SV21 —
17430-03011 Pipe Assy, Exhaust, Tail
1989-10 → 1991-03 ended
3SFE SV21 —
17430-03012 Pipe Assy, Exhaust, Tail
1991-03 → 1991-05 ended
3SFE SV21 —
17430-03013 Pipe Assy, Exhaust, Tail
1991-05 → 1991-09 ended
3SFE SV21 —
17430-07010 Pipe Assy, Exhaust, Tail
1989-09 → 1989-10 ended
2VZFE VZV21 —
17430-07011 Pipe Assy, Exhaust, Tail
1989-10 → 1991-03 ended
2VZFE VZV21 —
17430-07012 Pipe Assy, Exhaust, Tail
1991-03 → 1991-05 ended
2VZFE VZV21 —
17430-07013 Pipe Assy, Exhaust, Tail
1991-05 → 1991-09 ended
2VZFE VZV21 —
17430A — Bracket, Exhaust Tailpipe(FOR FRONT)
17563-63080 Bracket, Exhaust Tailpipe(FOR FRONT)
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17430D — Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17565-03060 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1989-09 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17565-55020 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1988-07 → 1989-09 ended
3SFE SV21 —
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17509-63060 Bracket, Exhaust Tailpipe (FOR REAR)
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17430T — Cushion, Exhaust Tailpipe (FOR REAR)
17591-03010 Cushion, Exhaust Tailpipe (FOR REAR)
1988-07 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17430V — Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17565-03070 Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1989-09 → 1991-09 ended
3SFE,2VZFE SV21,VZV21 —
17565-63120 Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1988-07 → 1989-09 ended
3SFE SV21 —
17448 — Baffle, Tailpipe
17448-41050 Baffle, Tailpipe
1988-07 → 1991-09 ended
3SFE SV21 LE —
17448-79025 Baffle, Tailpipe
1989-09 → 1991-09 ended
2VZFE VZV21 —
17451 — Gasket, Exhaust Pipe
90917-06045 Gasket, Exhaust Pipe
1991-04 → 1991-09 ended
3SFE SV21 —
90917-06045 Gasket, Exhaust Pipe
1991-04 → 1991-09 ended
2VZFE VZV21 —
90917-06046 Gasket, Exhaust Pipe
1989-09 → 1989-10 ended
2VZFE VZV21 —
90917-06047 Gasket, Exhaust Pipe
1988-07 → 1991-04 ended
3SFE SV21 —
90917-06047 Gasket, Exhaust Pipe
1989-10 → 1991-04 ended
2VZFE VZV21 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
