Toyota Camry (NAP)

1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

20 part groups · 2 illustrations

Illustrations

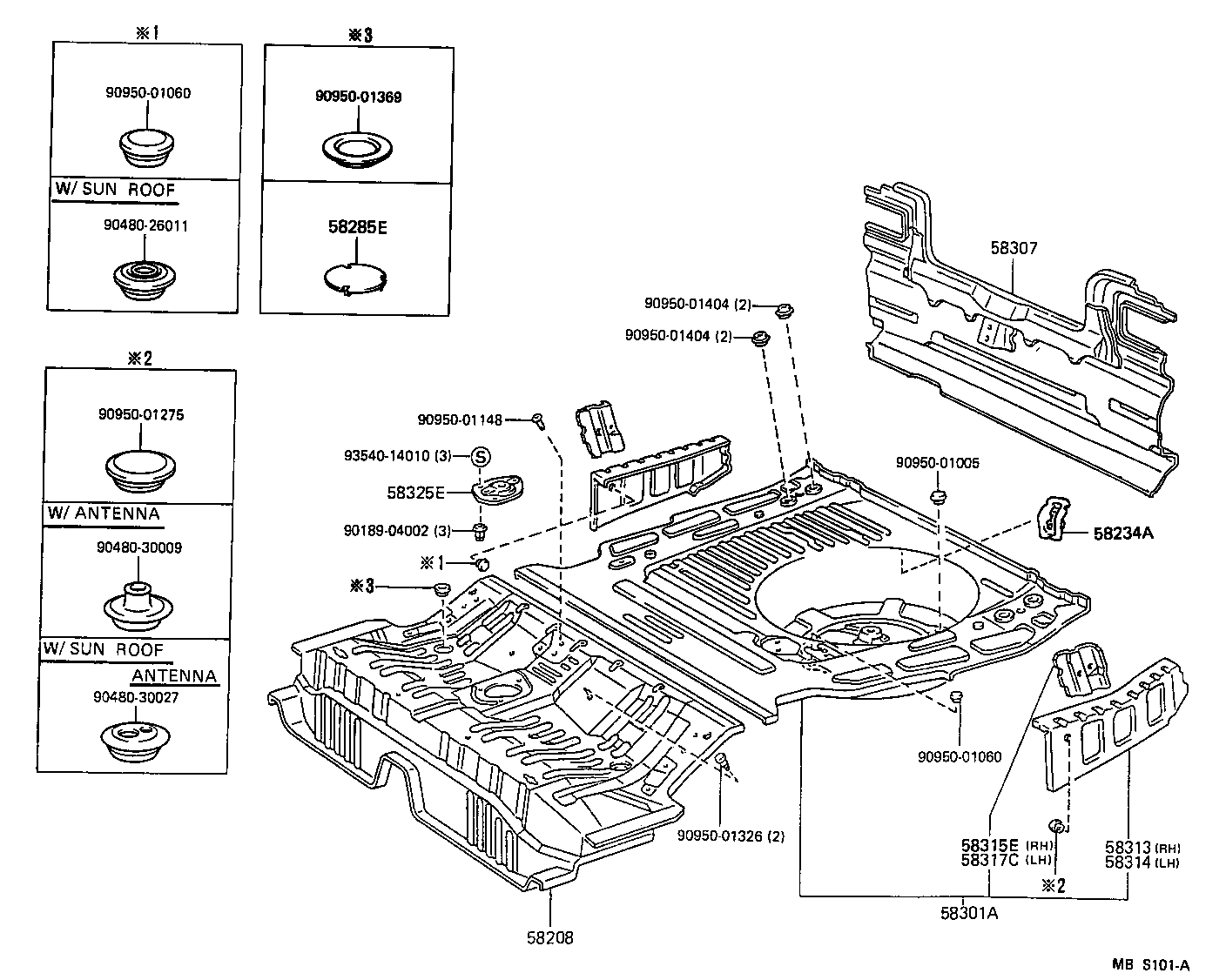

Figure MBN957 MBN957 1988-07 → — Figure MBS101A MBS101A 1988-07 → —

Part groups

PNCDescription
57206A Member Sub-assy, Front Floor Cross, NO.2
58027A Reinforce Sub-assy, Seat Belt Anchor
58102A Reinforcement Sub-assy, Front Floor
58111 Pan, Front Floor
58131A Bracket, Front Floor Heat Insulator, NO.1
58171 Reinforcement, Parking Brake Base
58207 Bracket Sub-assy, Parking Brake Cable, NO.1
58208 Pan, Center Floor
58234A Bracket, Exhaust Pipe Mounting, Inner
58285E Cover, Center Floor Hole
58301A Panel Sub-assy, Rear Floor
58307 Panel Sub-assy, Body Lower Back
58313 Panel, Rear Floor Side, RH
58314 Panel, Rear Floor Side, LH
58315E Extension Rear Floor Side Panel, Front RH
58317C Extension, Rear Floor Side Panel, Rear LH
58325E Cover, Rear Floor Service Hole
58367 Bracket, Fuel Tube Clamp
58369B Bracket, Fuel Tube, NO.3
58396A Bracket, Wire Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
