Toyota Camry (NAP)
1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States
Discontinued model
Data version 1992-05

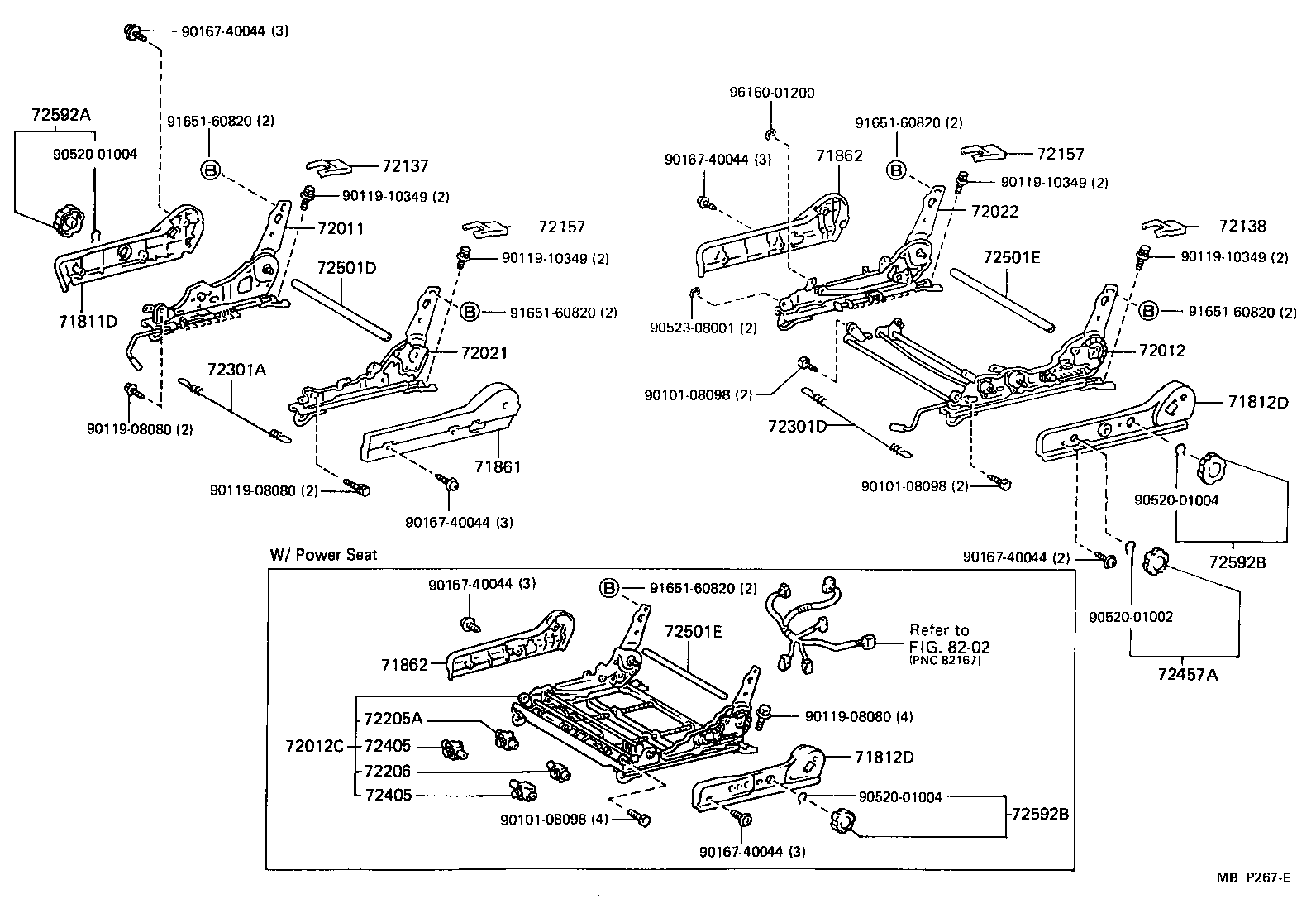

Front Seat & Seat Track
44 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71563A | Pad, Front Seatback Side, RH |
| 71564A | Pad, Front Seatback Side, LH |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71705B | Cap(FOR FRONT SEATBACK BOARD) |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72022 | Adjuster Sub-assy, Front Seat, Inner LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72205A | Housing Sub-assy, Power Seat, NO.1 |
| 72206 | Housing Sub-assy, Power Seat, NO.2 |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72405 | Housing Sub-assy, Front Seat Vertical |
| 72457A | Knob, Seat Adjuster |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72592A | Knob,Reclining Adjuster, RH |
| 72592B | Knob,Reclining Adjuster, LH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
