Toyota Camry (NAP)
1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States
Discontinued model
Data version 1992-05

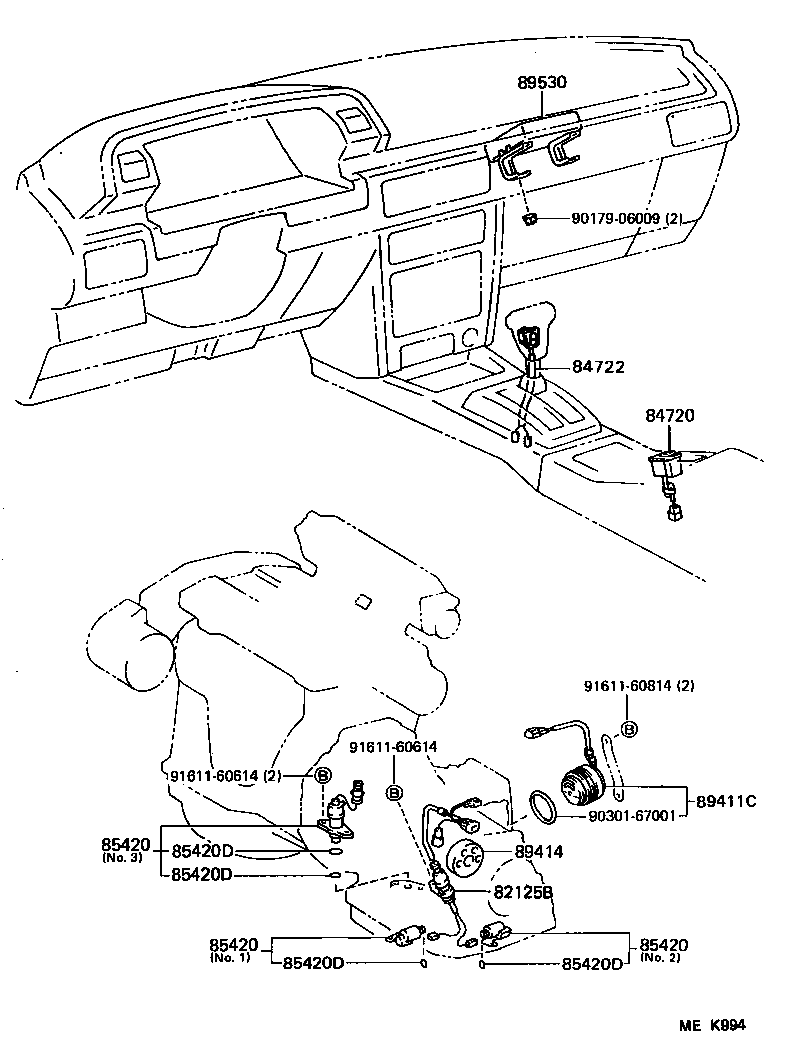

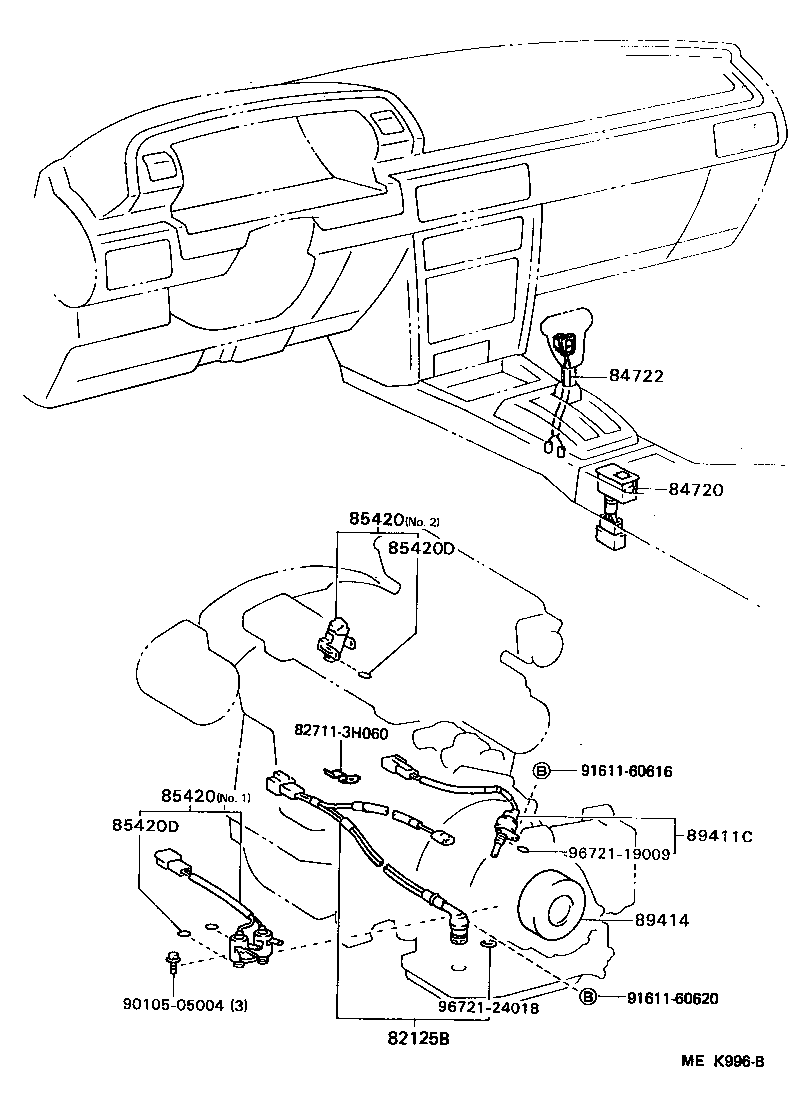

Overdrive & Electronic Controlled Transmission
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125B | Wire, Transmission |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85425A | Ring, O (FOR OVERDRIVE SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89427A | Switch, Temperature |
| 89530 | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
