Toyota Camry (NAP)

1988-07 → 1991-09 · chassis SV2#,VZV21 · catalogue 283440 · United States

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

3 part groups · 2 illustrations

Illustrations

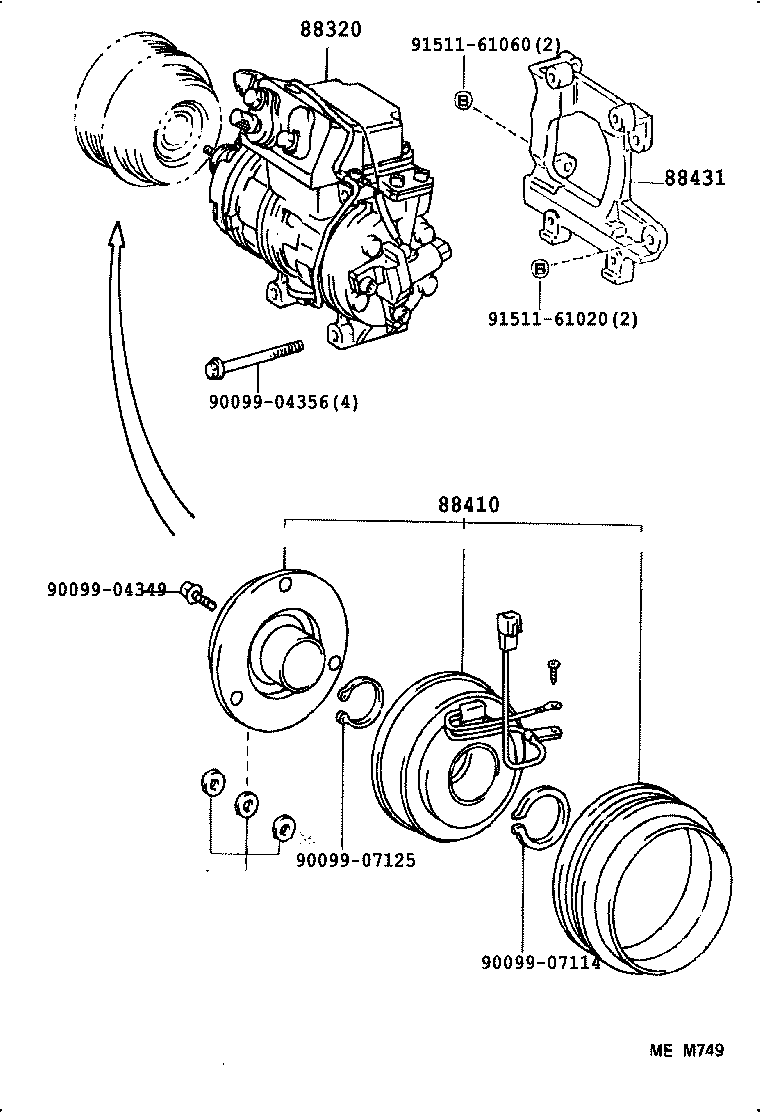

Figure 87B821 87B821 1988-07 → — Figure 87B822 87B822 1989-09 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
