Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

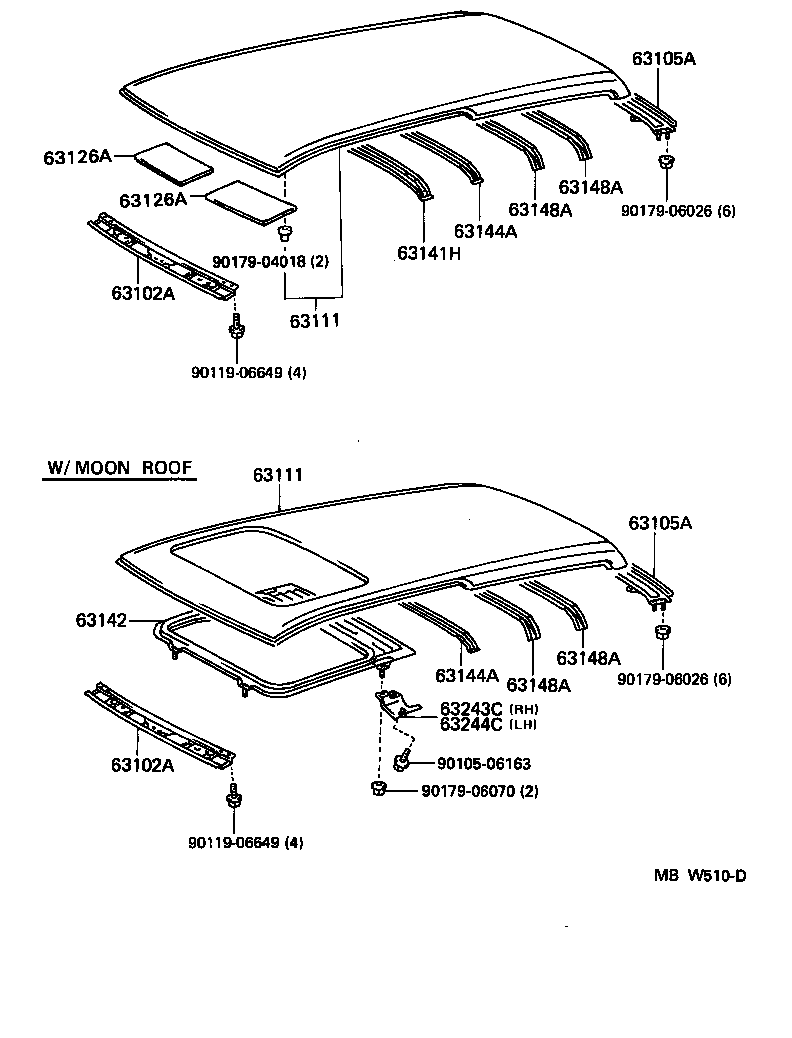

Exploded illustration MBW510D 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (1 parts) 63126A — DAMPER, WINDSHIELD HEADER PANEL (1 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 63126A — DAMPER, WINDSHIELD HEADER PANEL (1 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 9017906026 — not listed in this catalogue 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (7 parts) 63141H — REINFORCEMENT, ROOF PANEL, CENTER (4 parts) 9017904018 — not listed in this catalogue 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (1 parts) 63111 — PANEL, ROOF (17 parts) 9011906649 — not listed in this catalogue 63111 — PANEL, ROOF (17 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (1 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (3 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (7 parts) 9017906026 — not listed in this catalogue 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (3 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (3 parts) 9010506163 — not listed in this catalogue 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (1 parts) 9017906070 — not listed in this catalogue 9011906649 — not listed in this catalogue
MBW510D · 18 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-06010 Panel Sub-assy, Windshield Header
1991-09 → 1996-07 ended
MCV10,SXV10,VCV10 NAP —
63105A — Frame Sub-assy, Back Door Opening
63105-06010 Frame Sub-assy, Back Door Opening
1992-03 → 1996-08 ended
MCV10,SXV10,VCV10 NAP WG —
63111 — Panel, Roof
63111-06010 Panel, Roof
1991-09 → 1994-08 ended
MCV10,SXV10,VCV10 NAP SED (LE,SE) —
63111-06010 Panel, Roof
1994-08 → 1996-07 ended
MCV10,SXV10 NAP SED (LE,SE,XLE) —
63111-06010 Panel, Roof
1994-02 → 1996-07 ended
MCV10,SXV10 NAP SED DX +1 —
63111-06020 note Panel, Roof
1994-08 → 1996-07 ended
MCV10,SXV10 NAP SED (LE,SE,XLE) —
63111-06020 note Panel, Roof
1991-09 → 1994-08 ended
VCV10 NAP SED (LE,SE);MCV10,SXV10 +3 —
63111-06020 Panel, Roof
1991-09 → 1994-08 ended
MCV10,SXV10,VCV10 NAP XLE —
63111-06040 Panel, Roof
1992-03 → 1994-10 ended
MCV10,SXV10,VCV10 NAP WG LE —
63111-06050 note Panel, Roof
1992-03 → 1994-10 ended
MCV10,SXV10,VCV10 NAP WG LE —
63111-06180 Panel, Roof
1994-10 → 1996-07 ended
MCV10,SXV10 NAP WG LE —
63111-06190 note Panel, Roof
1994-10 → 1996-07 ended
MCV10,SXV10 NAP WG LE —
63111-06900 note Panel, Roof
1991-09 → 1996-07 ended
MCV10,SXV10,VCV10 NAP SED DX —
63111-06901 Panel, Roof
1992-03 → 1994-08 ended
SXV10 NAP WG DX —
63111-06909 Panel, Roof
1994-08 → 1995-08 ended
SXV10 NAP WG DX —
63111-33010 note Panel, Roof
1991-09 → 1996-07 ended
MCV10,SXV10,VCV10 NAP SED DX —
63111-AA010 Panel, Roof
1993-09 → 1996-07 ended
MCV10,SXV10 NAP CP (LE,SE) —
63111-AA020 note Panel, Roof
1993-09 → 1996-07 ended
MCV10,SXV10 NAP CP (LE,SE) —
63111-AA900 Panel, Roof
1993-09 → 1996-07 ended
SXV10 NAP CP DX —
63126A — Damper, Windshield Header Panel
63126-32010 Damper, Windshield Header Panel
1991-09 → 1992-04 ended
SXV10,VCV10 NAP (DX,LE) —
63141H — Reinforcement, Roof Panel, Center
63141-06010 Reinforcement, Roof Panel, Center
1992-03 → 1996-07 ended
MCV10,SXV10,VCV10 NAP WG —
63141-33010 Reinforcement, Roof Panel, Center
1991-09 → 1992-06 ended
SXV10,VCV10 NAP SED (DX,LE) —
63141-33011 Reinforcement, Roof Panel, Center
1994-08 → 1996-07 ended
MCV10,SXV10 NAP (CP,SED) —
63141-33011 Reinforcement, Roof Panel, Center
1992-06 → 1994-08 ended
MCV10,SXV10,VCV10 NAP (CP,SED) (DX,LE,SE) —
63142 — Reinforcement, Roof Panel, NO.2
63142-06010 Reinforcement, Roof Panel, NO.2
1992-03 → 1996-07 ended
MCV10,SXV10,VCV10 NAP WG LE —
63142-33900 Reinforcement, Roof Panel, NO.2
1991-09 → 1994-08 ended
MCV10 E) NAP CP +7 —
63142-33900 Reinforcement, Roof Panel, NO.2
1994-08 → 1996-07 ended
MCV10,SXV10 NAP (CP,SED) (LE,SE,XLE) —
63144A — Reinforcement, Roof Panel, NO.4
63144-06010 Reinforcement, Roof Panel, NO.4
1992-03 → 1996-07 ended
MCV10,SXV10,VCV10 NAP WG —
63144-33010 Reinforcement, Roof Panel, NO.4
1991-09 → 1994-08 ended
MCV10,SXV10,VCV10 NAP SED (DX,LE,SE) —
63144-33010 Reinforcement, Roof Panel, NO.4
1994-08 → 1996-07 ended
MCV10,SXV10 NAP SED —
63144-33030 Reinforcement, Roof Panel, NO.4
1991-09 → 1994-08 ended
MCV10,SXV10,VCV10 NAP XLE —
63144-33030 note Reinforcement, Roof Panel, NO.4
1991-09 → 1994-08 ended
VCV10 NAP SED (LE,SE);MCV10,SXV10 +3 —
63144-33030 note Reinforcement, Roof Panel, NO.4
1994-08 → 1996-07 ended
MCV10,SXV10 NAP SED (LE,SE,XLE) —
63144-AA010 Reinforcement, Roof Panel, NO.4
1993-09 → 1996-07 ended
MCV10,SXV10 NAP CP —
63148A — Reinforcement, Roof Panel, NO.7
63148-06010 Reinforcement, Roof Panel, NO.7
1992-03 → 1996-07 ended
MCV10,SXV10,VCV10 NAP WG —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-33010 Bracket, Sliding Roof Housing Center Mounting, RH
1991-09 → 1994-08 ended
MCV10 E) NAP CP +7 —
63243-33010 Bracket, Sliding Roof Housing Center Mounting, RH
1994-08 → 1996-07 ended
MCV10,SXV10 NAP (CP,SED) (LE,SE,XLE) —
63243-33030 Bracket, Sliding Roof Housing Center Mounting, RH
1992-03 → 1996-07 ended
MCV10,SXV10,VCV10 NAP WG LE —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-33010 Bracket, Sliding Roof Housing Center Mounting, LH
1991-09 → 1994-08 ended
MCV10 E) NAP CP +7 —
63244-33010 Bracket, Sliding Roof Housing Center Mounting, LH
1994-08 → 1996-07 ended
MCV10,SXV10 NAP (CP,SED) (LE,SE,XLE) —
63244-33030 Bracket, Sliding Roof Housing Center Mounting, LH
1992-03 → 1996-07 ended
MCV10,SXV10,VCV10 NAP WG LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
