Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

28 part groups · 4 illustrations

Illustrations

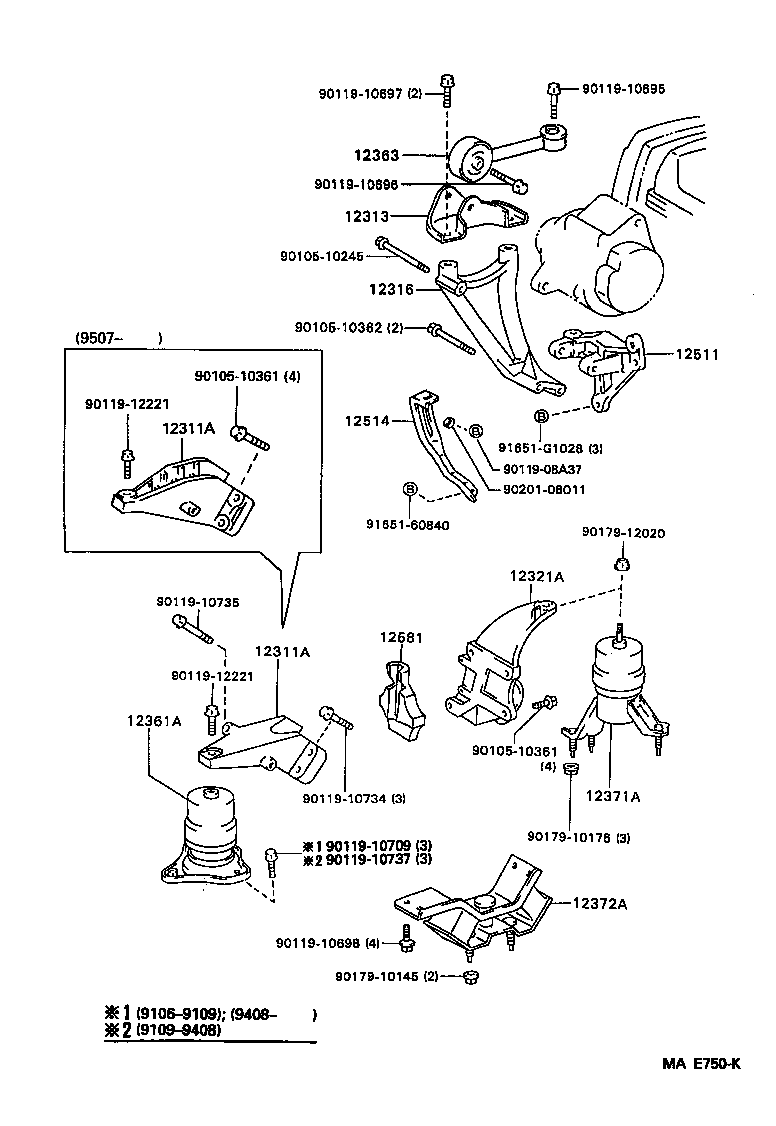

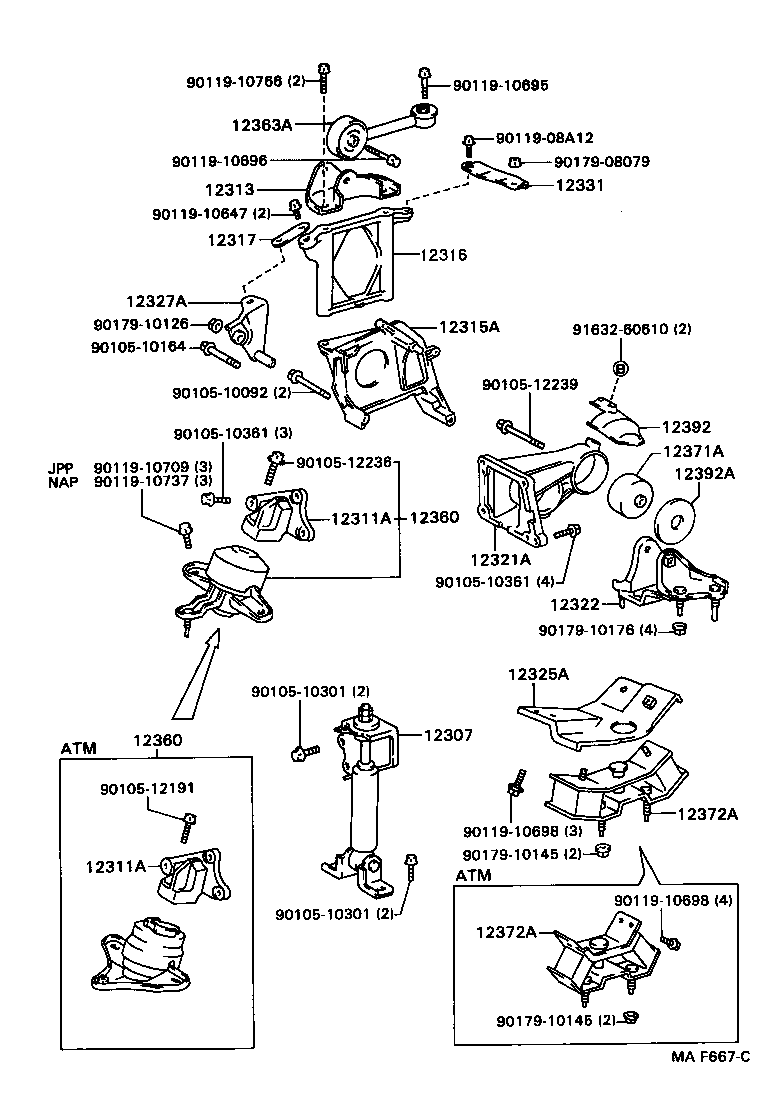

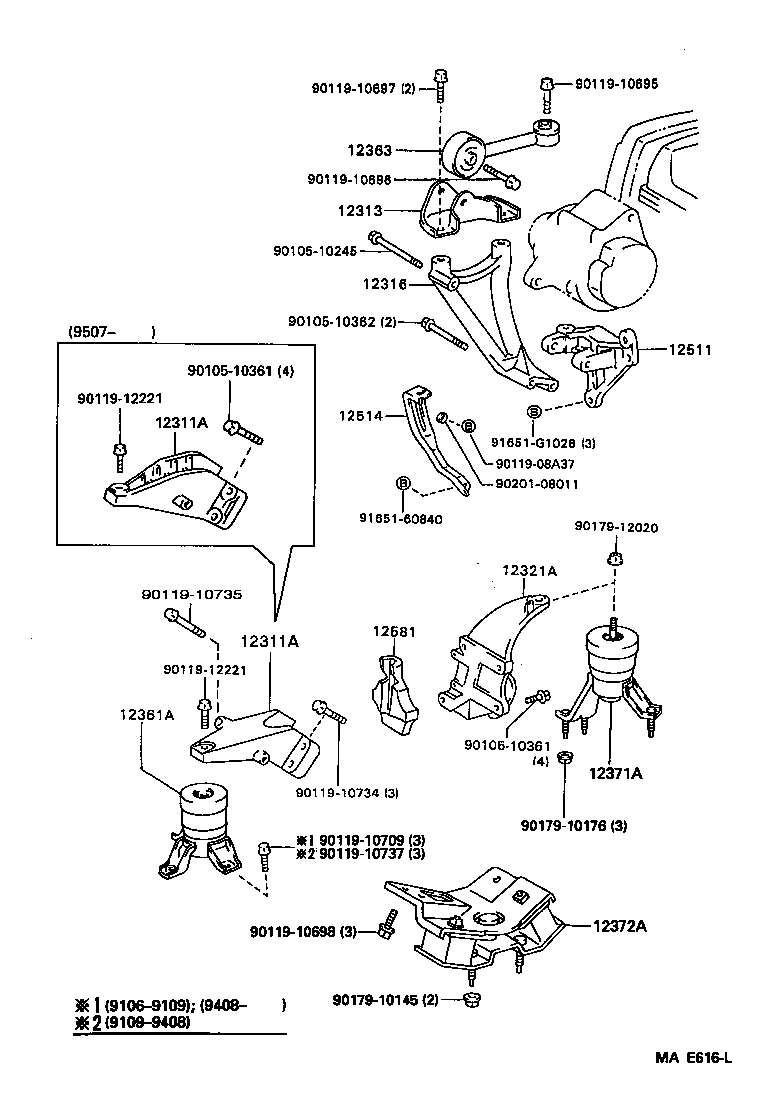

Figure MAG648H MAG648H 1993-08 → — Figure MAE750K MAE750K 1991-06 → — Figure MAE616L MAE616L 1991-06 → — Figure MAF667C MAF667C 1991-09 → 1993-09

Part groups

PNCDescription
12307 Absorber Sub-assy, Engine Mounting
12309 Rod Sub-assy, Engine Moving Control
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12317 Stay, Engine Mounting, RH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12327A Stay, Engine Mounting, NO.2 RH
12331 Stay, Engine Mounting, NO.3 RH
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12363 Insulator, Engine Mounting, Center
12363A Rod, Engine Moving Control
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12380 Insulator Assy, Engine Mounting, Rear
12392 Insulator, Engine Mounting Heat, Front LH
12392A Insulator, Engine Mounting Heat, Rear
12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
12515 Bolt, Alternator Through
12581 Insulator, Cylinder Block, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
