Toyota Camry (NAP)
1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States
Discontinued model
Data version 1997-04

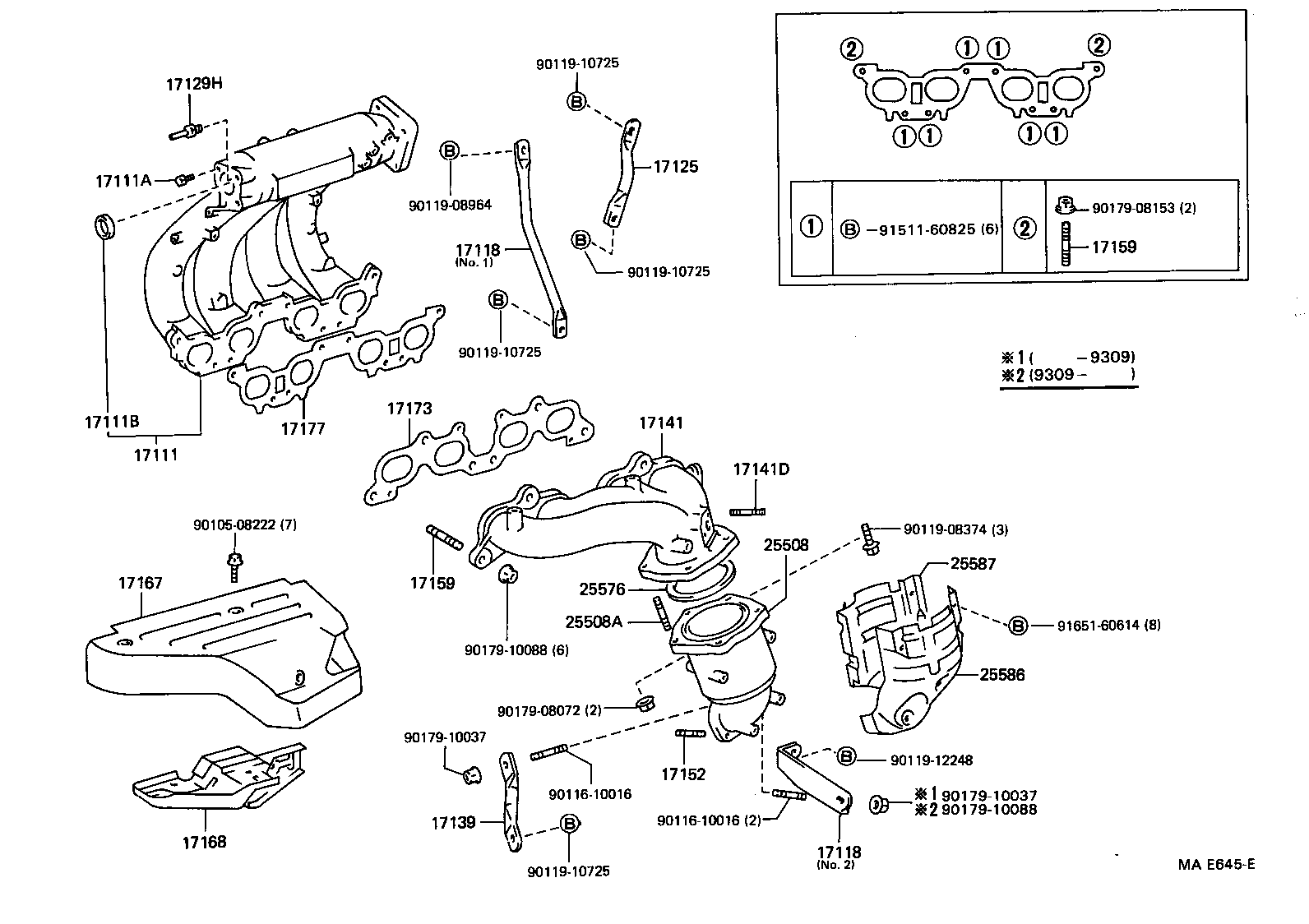

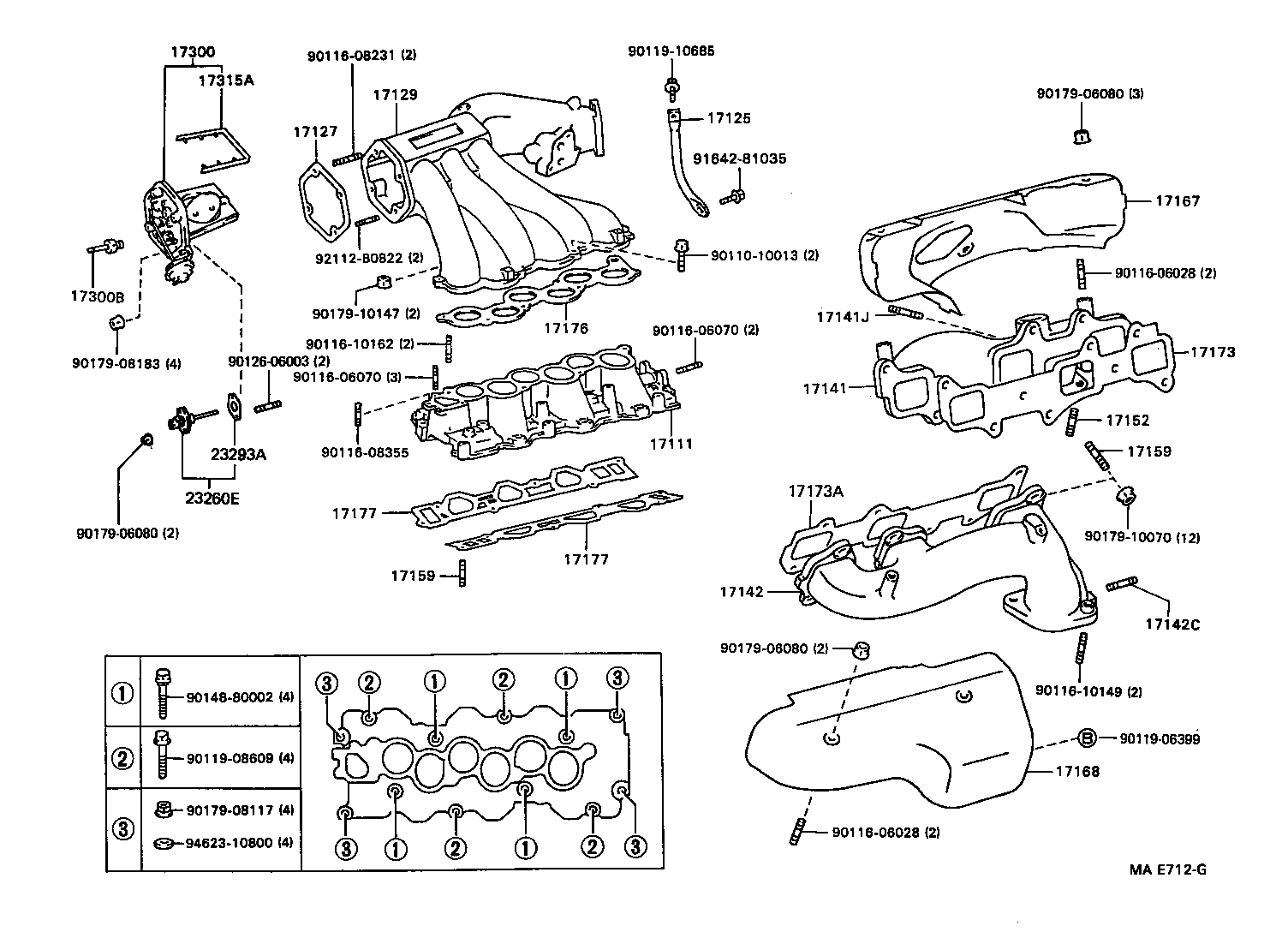

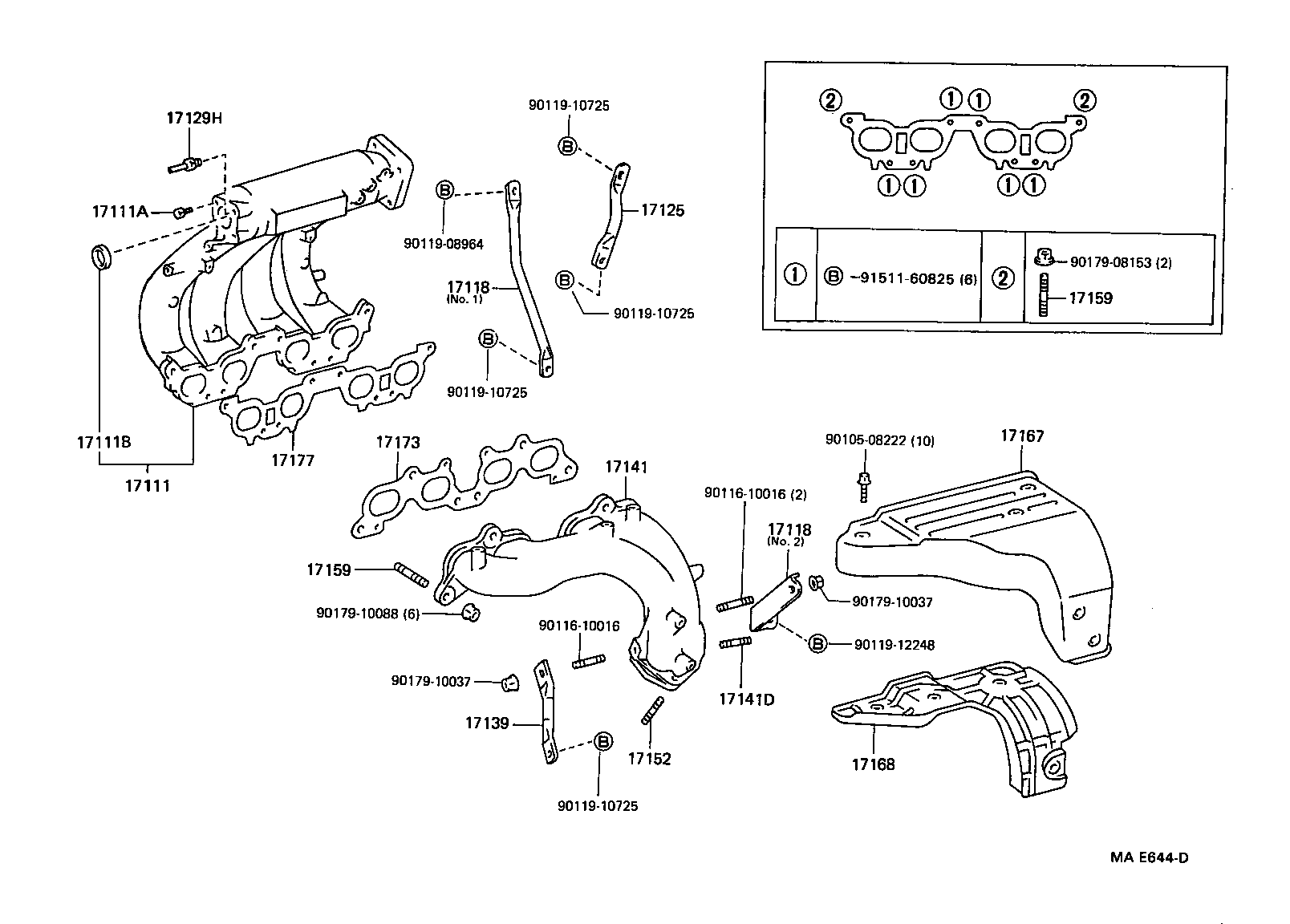

Manifold
38 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17104 | Manifold Sub-assy, Exhaust, RH |
| 17104A | Bolt(FOR FRONT PIPE & STAY) |
| 17105 | Manifold Sub-assy, Exhaust, LH |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17118 | Stay, Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17127 | Gasket, Surge Tank Cover |
| 17129 | Tank, Intake Air Surge |
| 17129H | Union, NO.4 |
| 17139 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17141J | Bolt, Stud(FOR EXHAUST MANIFOLD, RH) |
| 17142 | Case, Exhaust Manifold, NO.2 |
| 17142C | Bolt, Stud(FOR EXHAUST MANIFOLD, LH) |
| 17148 | Plate, Exhaust Manifold(FOR EGR INLET) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17173A | Gasket, Exhaust Manifold TO Head, LH |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
| 17300A | Plug, W/Head Taper Screw(FOR AIR CONTROL VALVE) |
| 17300B | Union(FOR INTAKE AIR CONTROL VALVE) |
| 17315A | Gasket, Intake Air Control Valve |
| 23260E | Injector Assy, Cold Start Fuel |
| 23293A | Gasket, Cold Start Fuel Injector |
| 25508 | Converter Sub-assy, Manifold |
| 25508A | Bolt, Stud(FOR MANIFOLD CONVERTER) |
| 25576 | Gasket, Manifold Converter |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25587 | Insulator, Manifold Converter, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
