Toyota Camry (NAP)
1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States
Discontinued model
Data version 1997-04

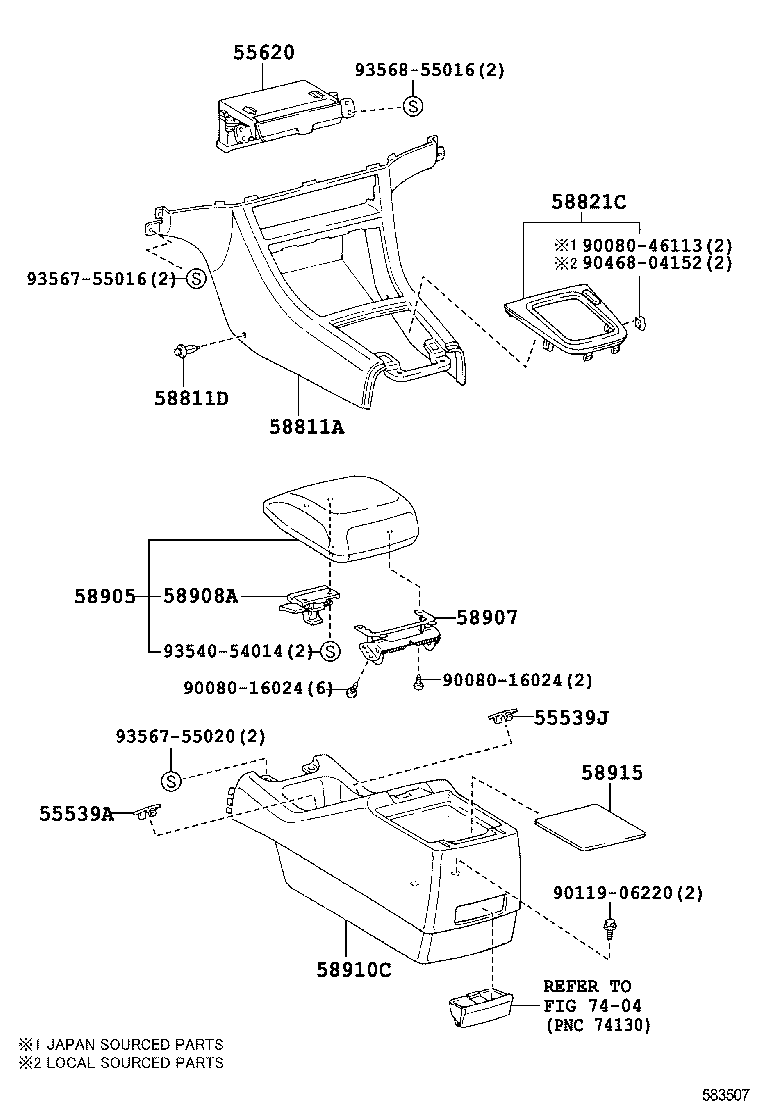

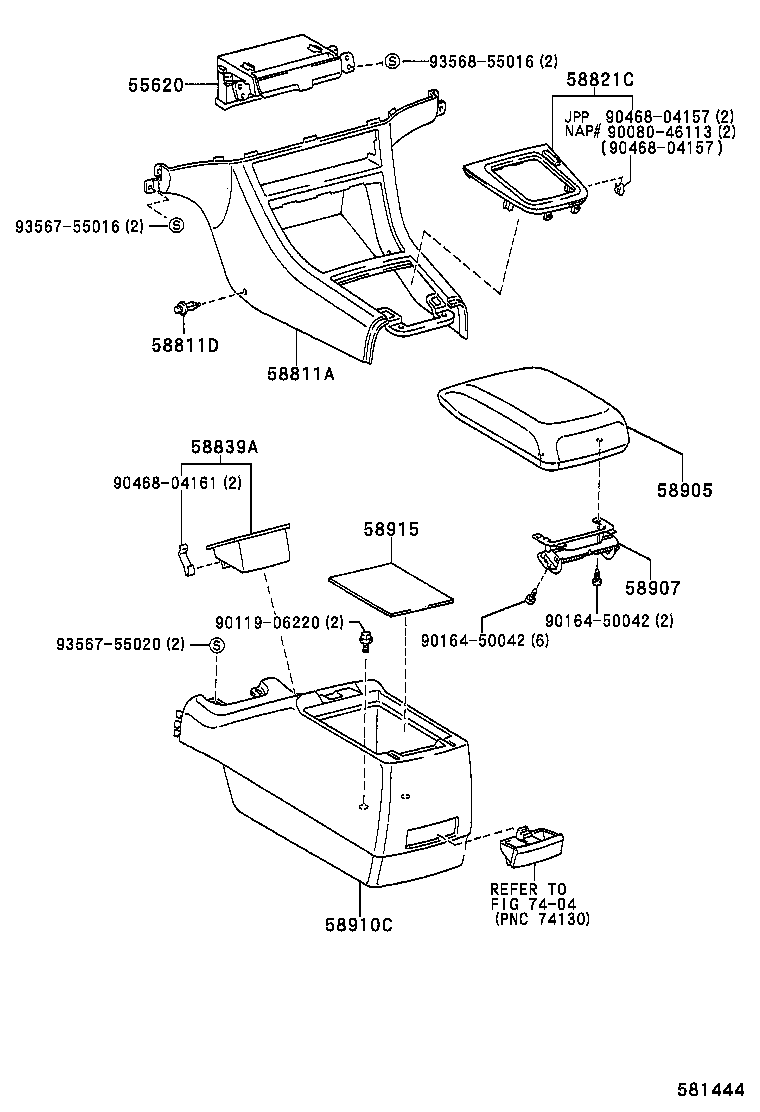

Console Box & Bracket
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55620 | Holder Assy, Instrument Panel Cup |
| 58811A | Box, Console, Front |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58821C | Panel, Console, Upper |
| 58833A | Cover, Console, Upper |
| 58839A | Cover, Console Box Hole |
| 58902C | Bracket Sub-assy, Console Box Mounting |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58915 | Panel, Box Bottom |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
