Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 3 illustrations

Illustrations

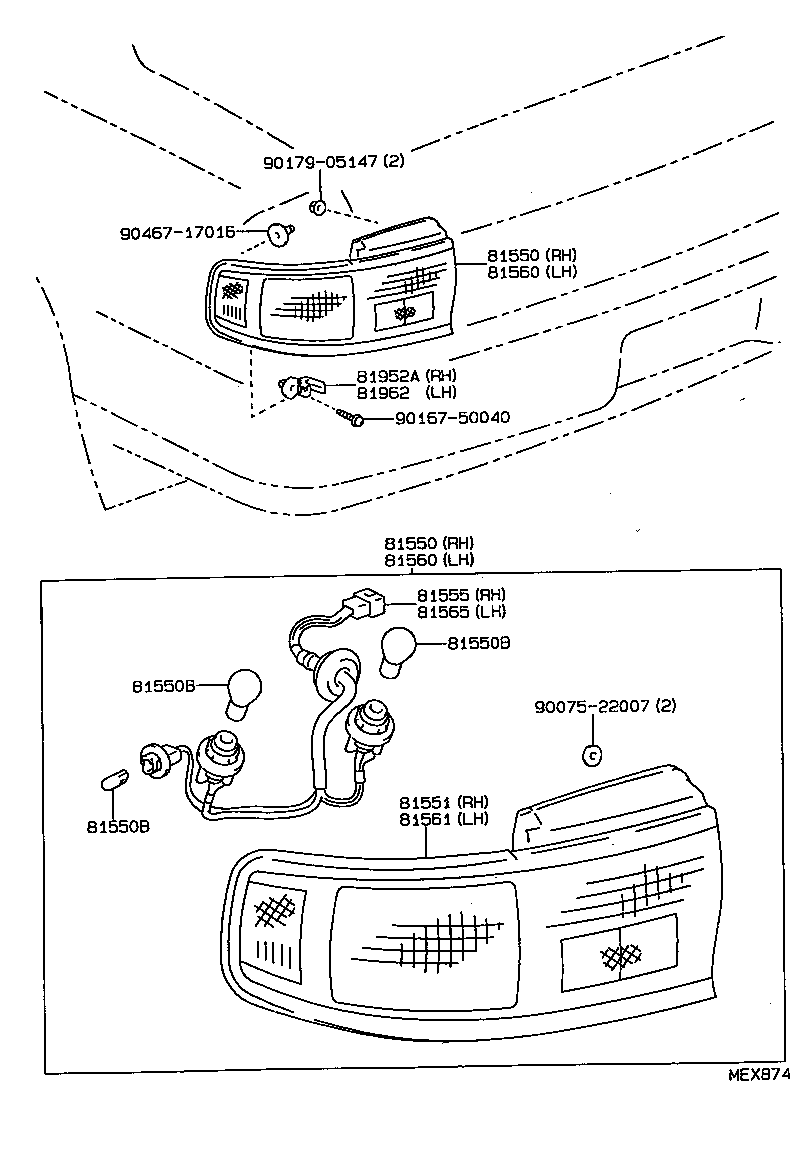

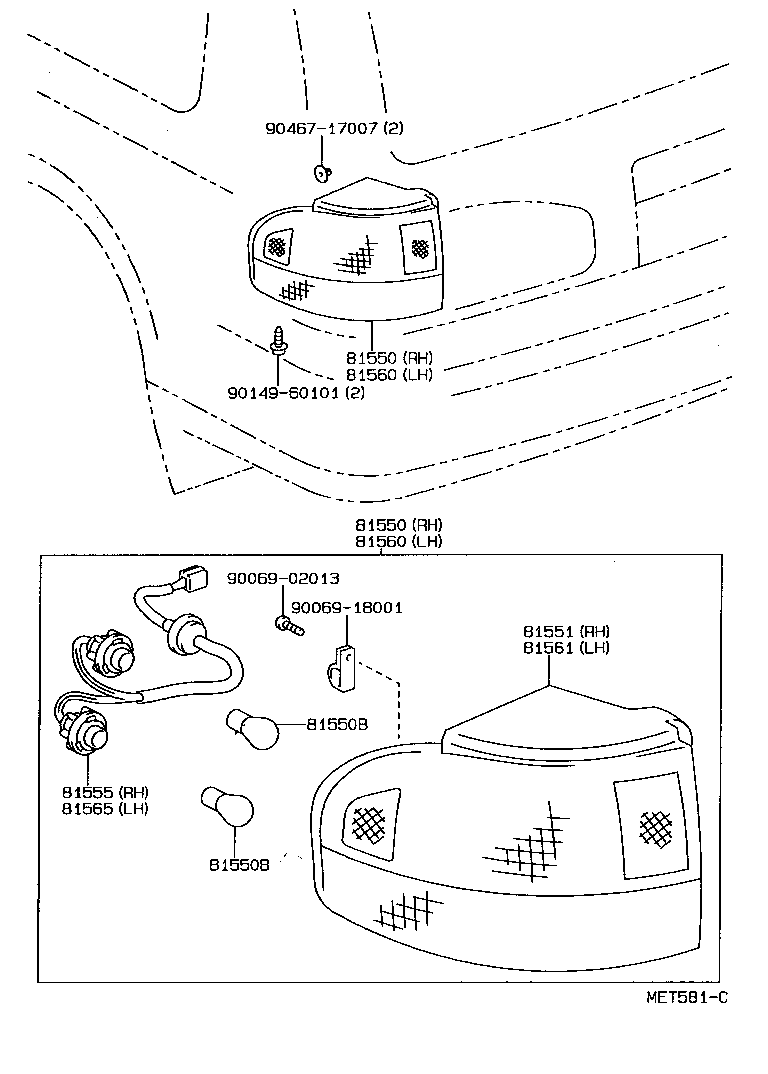

Figure MES142B MES142B 1991-09 → 1994-08 Figure MEX874 MEX874 1994-08 → 1996-08 Figure MET581C MET581C 1992-03 → 1996-08

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81559B Bracket, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81569A Bracket, Rear Combination Lamp, LH
81952A Cover, Rear Lamp, RH
81962 Cover, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
