Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

15 part groups · 4 illustrations

Illustrations

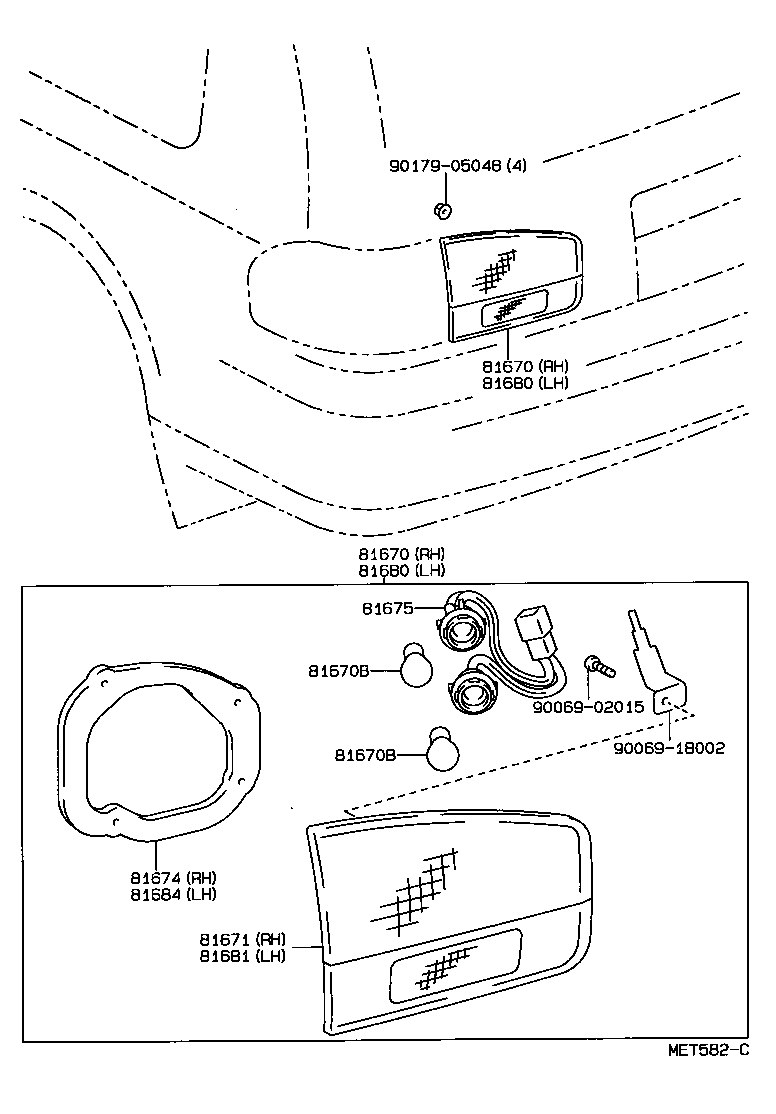

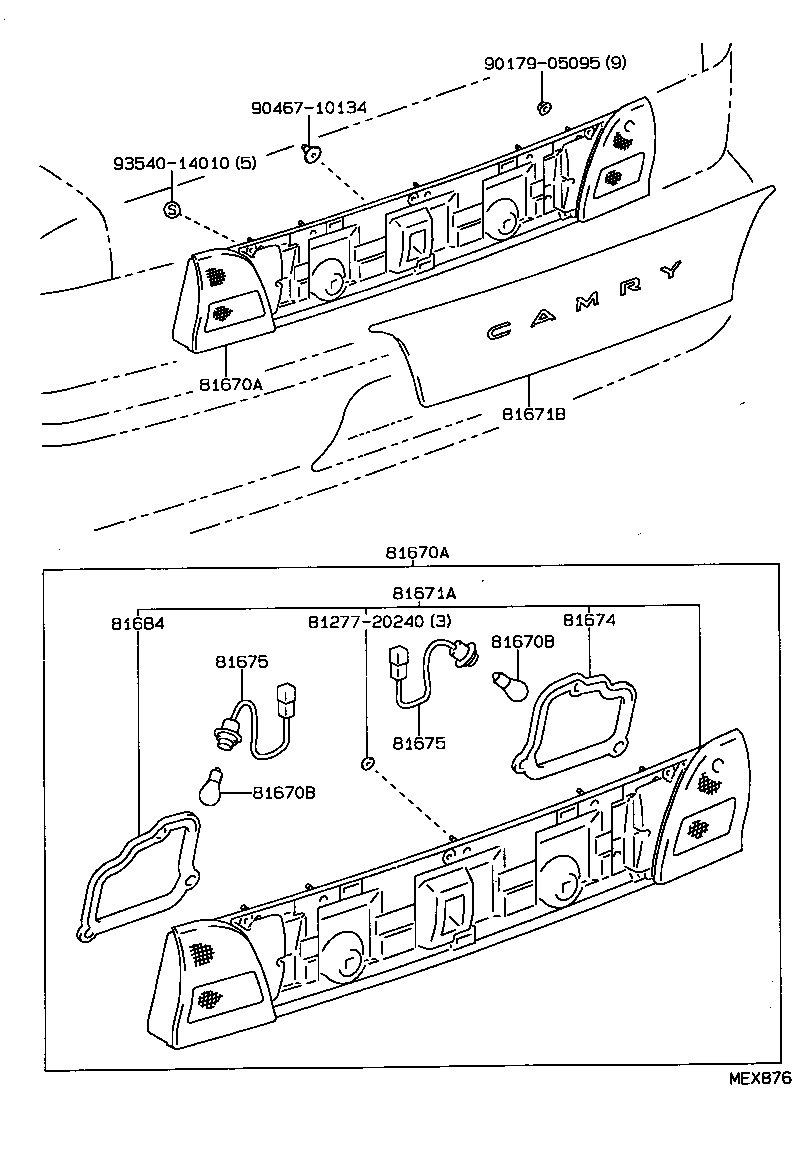

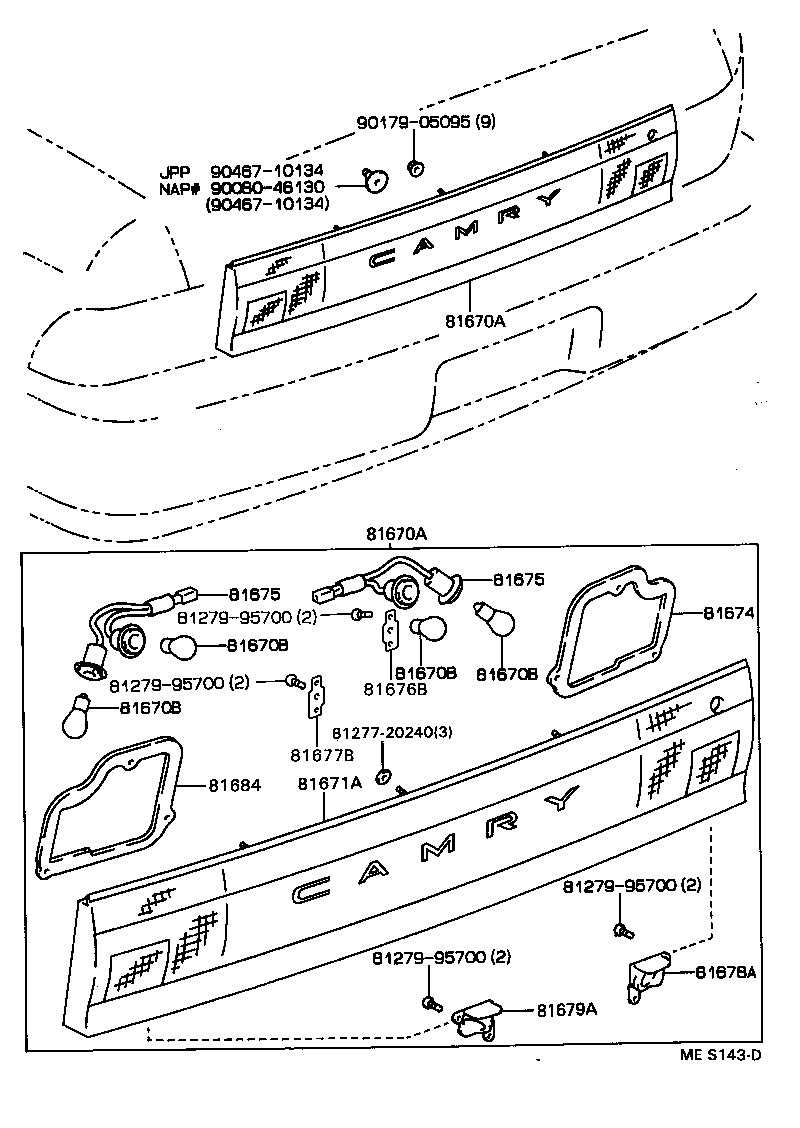

Figure 814017A 814017A 1991-06 → 1994-08 Figure MES143D MES143D 1991-06 → 1994-08 Figure MEX876 MEX876 1994-08 → 1996-08 Figure MET582C MET582C 1992-03 → 1996-07

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670A Lamp Assy, Back-up
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81671A Lens & Body, Back-up Lamp
81671B Garnish, Back-door, Outside
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81676B Bracket, Back-up Lamp
81677B Bracket, Back-up Lamp
81678A Cover, Back UP Lamp, RH
81679A Cover, Back UP Lamp, LH
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
