Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

8 part groups · 2 illustrations

Illustrations

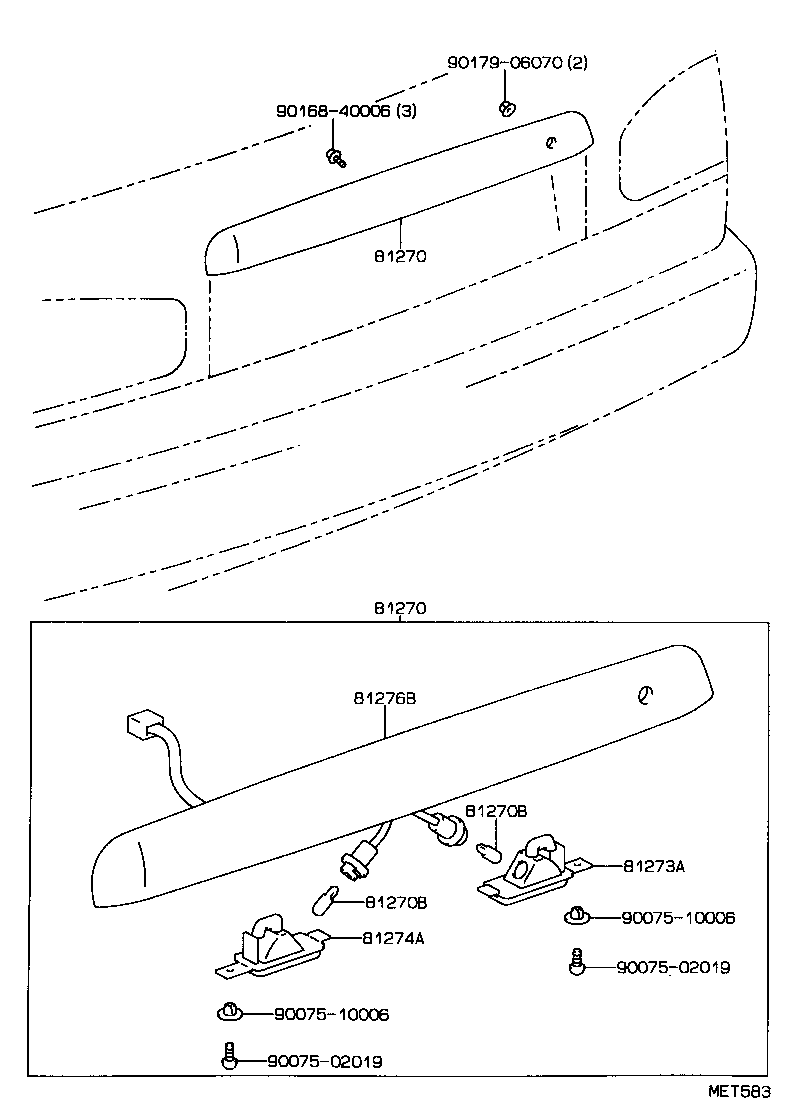

Figure MER769A MER769A 1991-06 → 1996-08 Figure MET583 MET583 1992-03 → 1996-07

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81273A Body, License Plate Lamp
81274A Body B, License Plate
81275A Cord, License Plate Lamp
81276B Cover, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
