Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

8 part groups · 3 illustrations

Illustrations

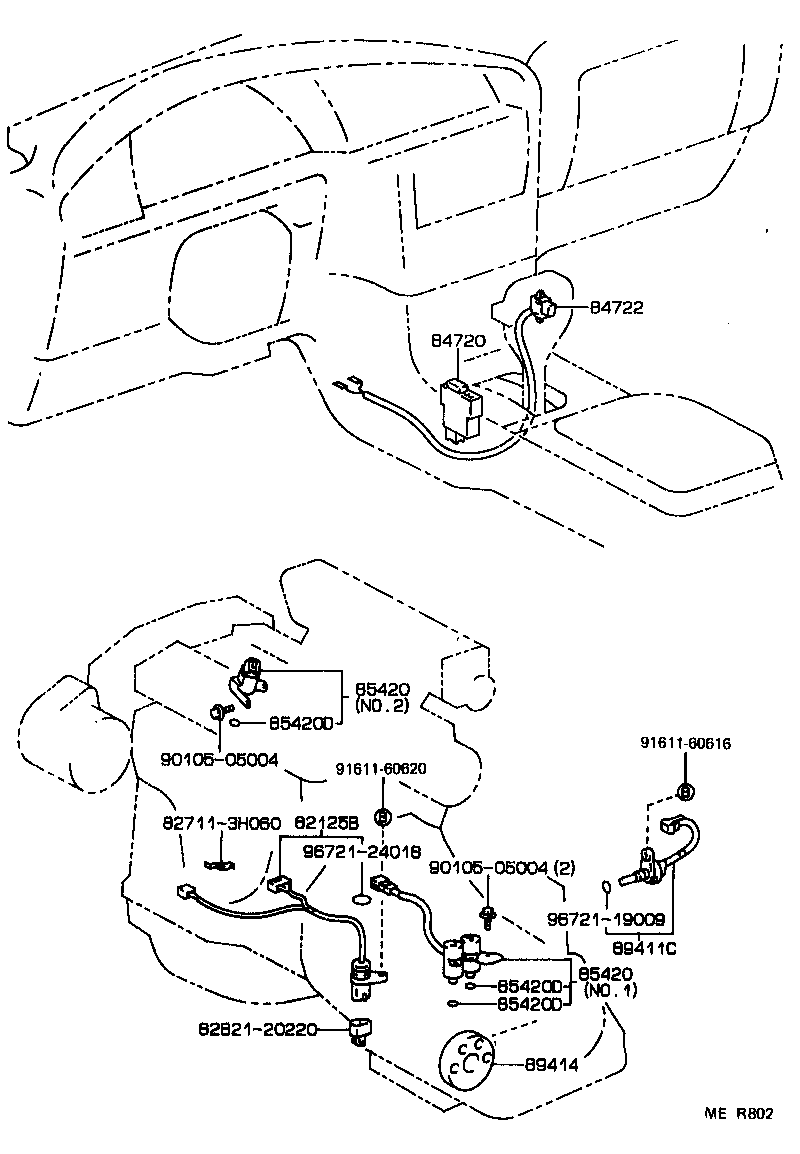

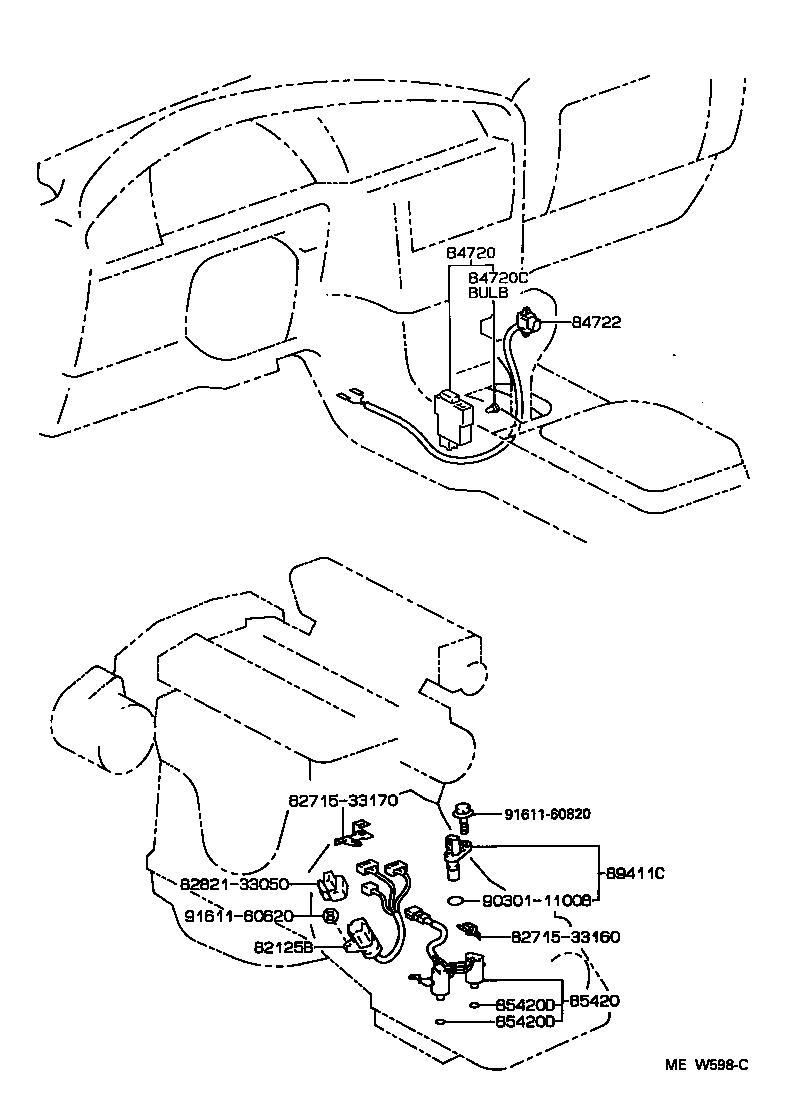

Figure 842398 842398 1991-06 → 1996-07 Figure MER802 MER802 1991-06 → 1993-08 Figure MEW598C MEW598C 1993-08 → 1996-07

Part groups

PNCDescription
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
