Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

Figure MER933A

MER933A 1991-09 → 1996-08

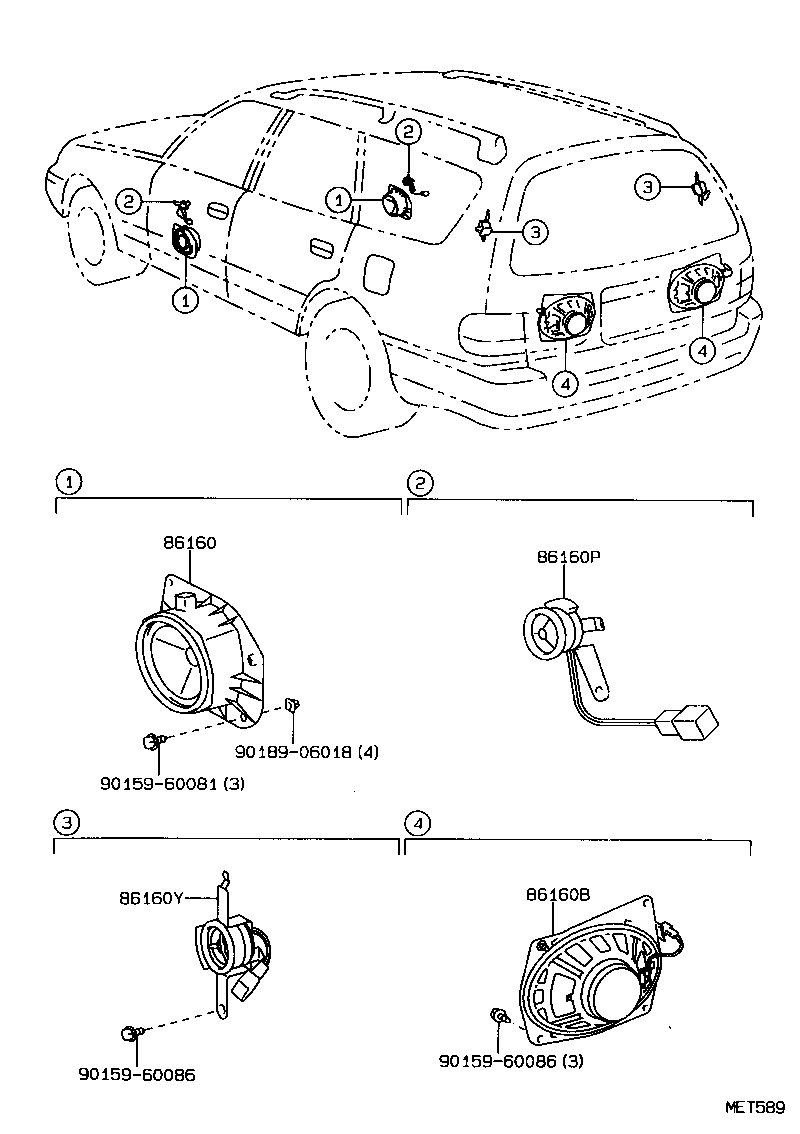

Figure MET589

MET589 1992-03 → 1996-08

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2
86160Y	Speaker Assy, Rear NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
