Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

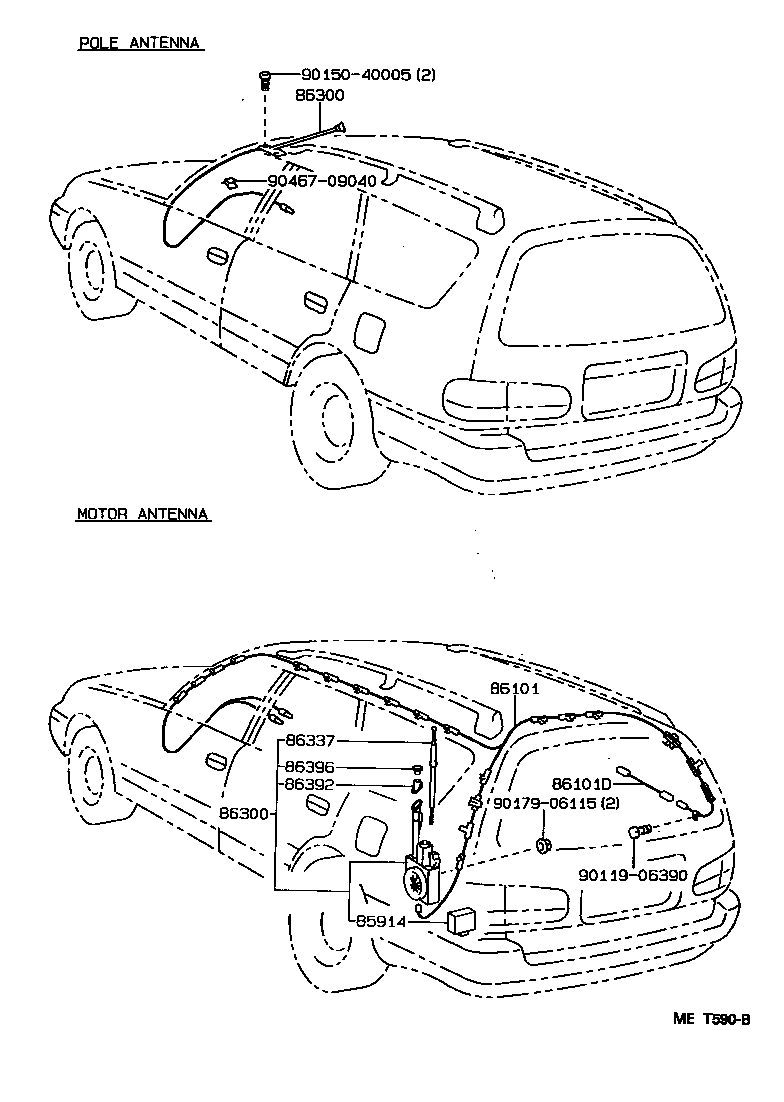

Figure MER838B MER838B 1991-09 → 1996-08 Figure MET590B MET590B 1992-03 → 1996-08

Part groups

PNCDescription
85914 Relay, Motor Antenna Control
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86300 Antenna Assy, W/Holder
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
