Toyota Camry (NAP)

1991-09 → 1996-07 · chassis SXV10,VCV10,MCV10 · catalogue 283450 · United States

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

30 part groups · 9 illustrations

Illustrations

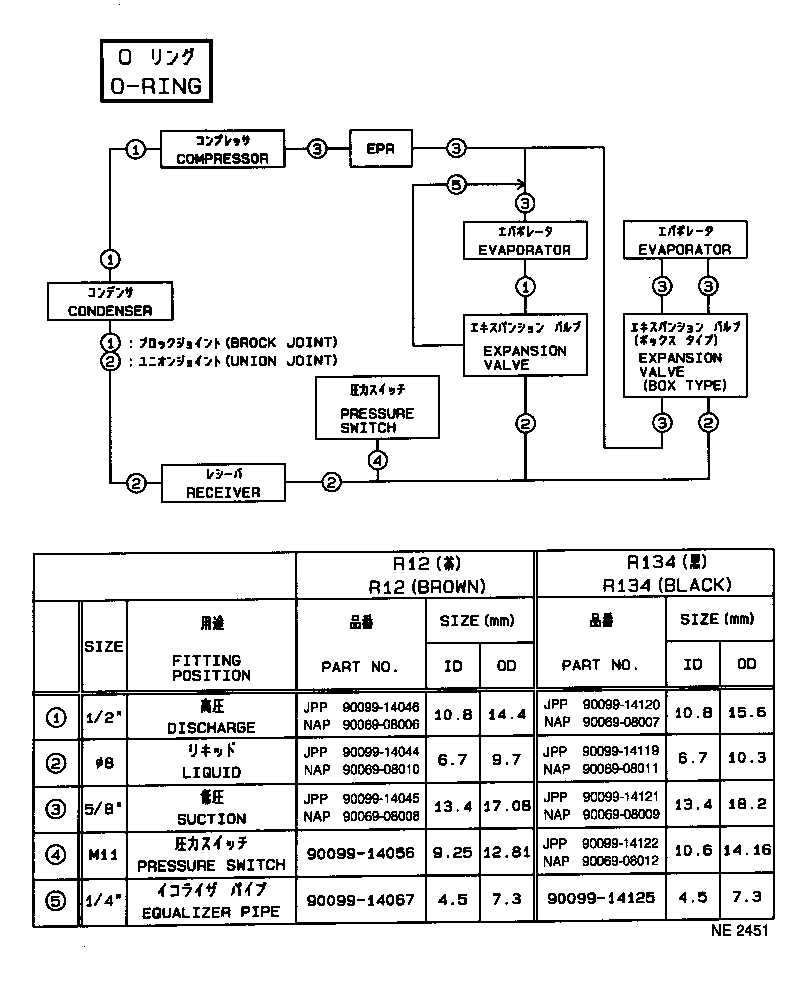

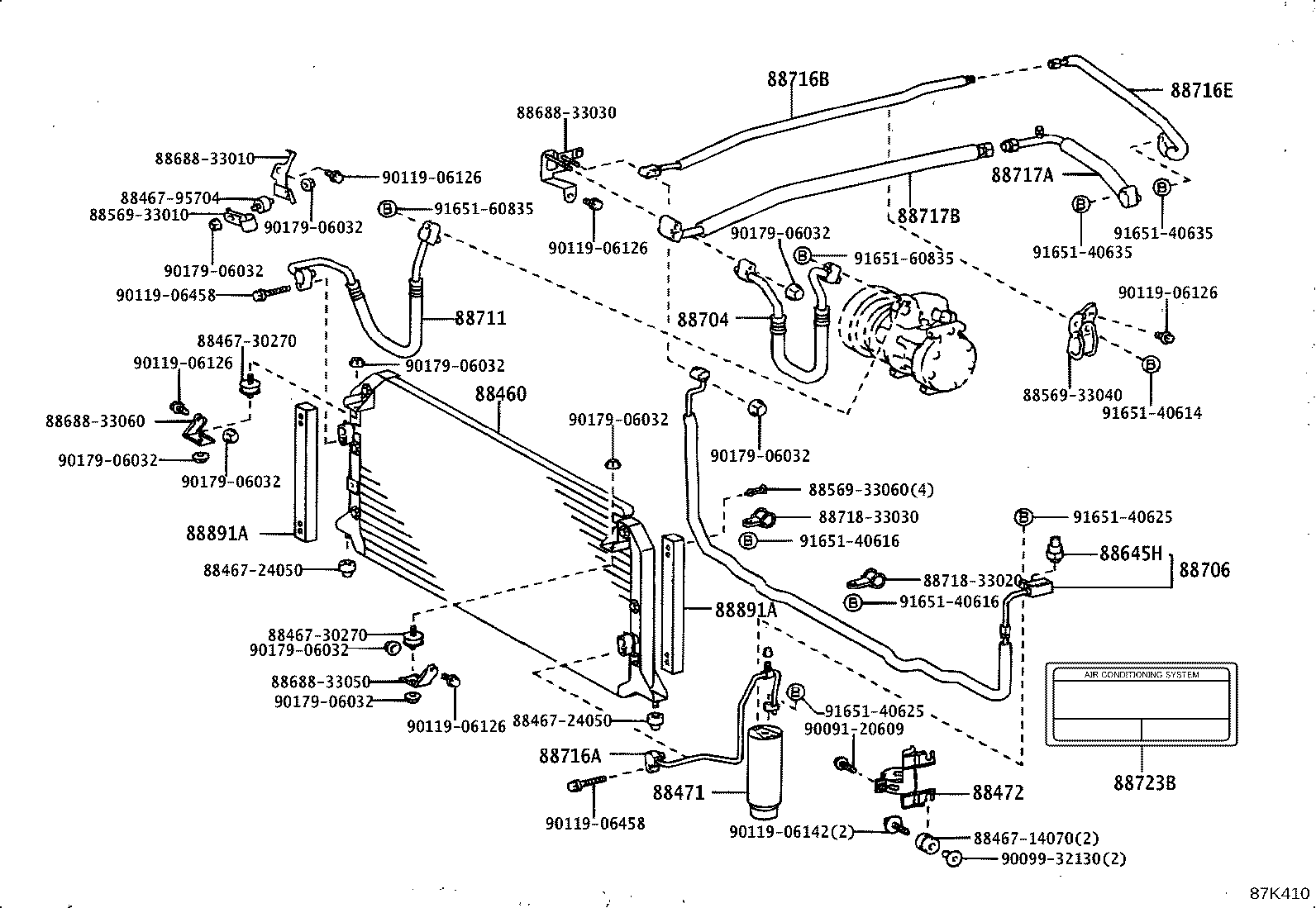

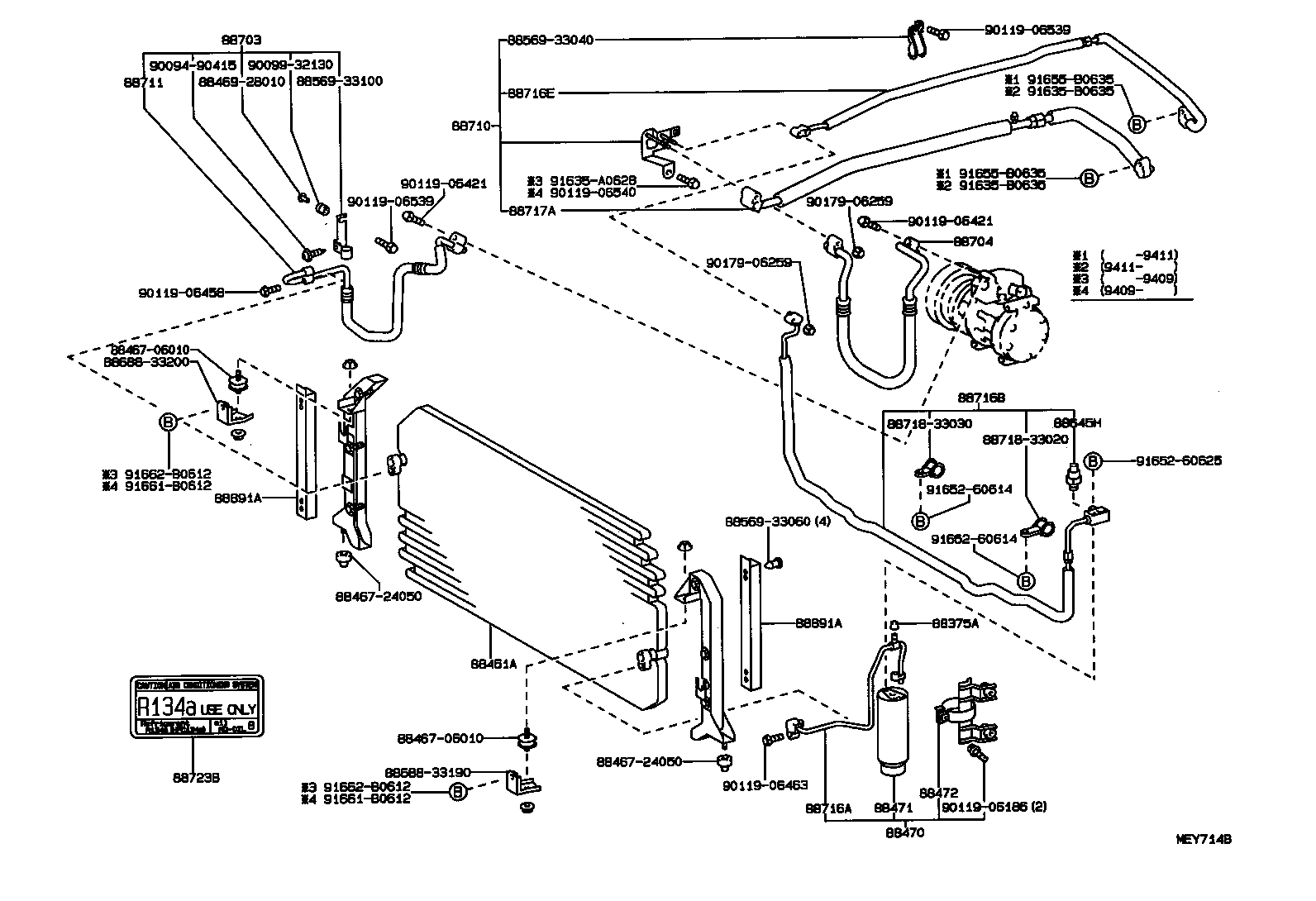

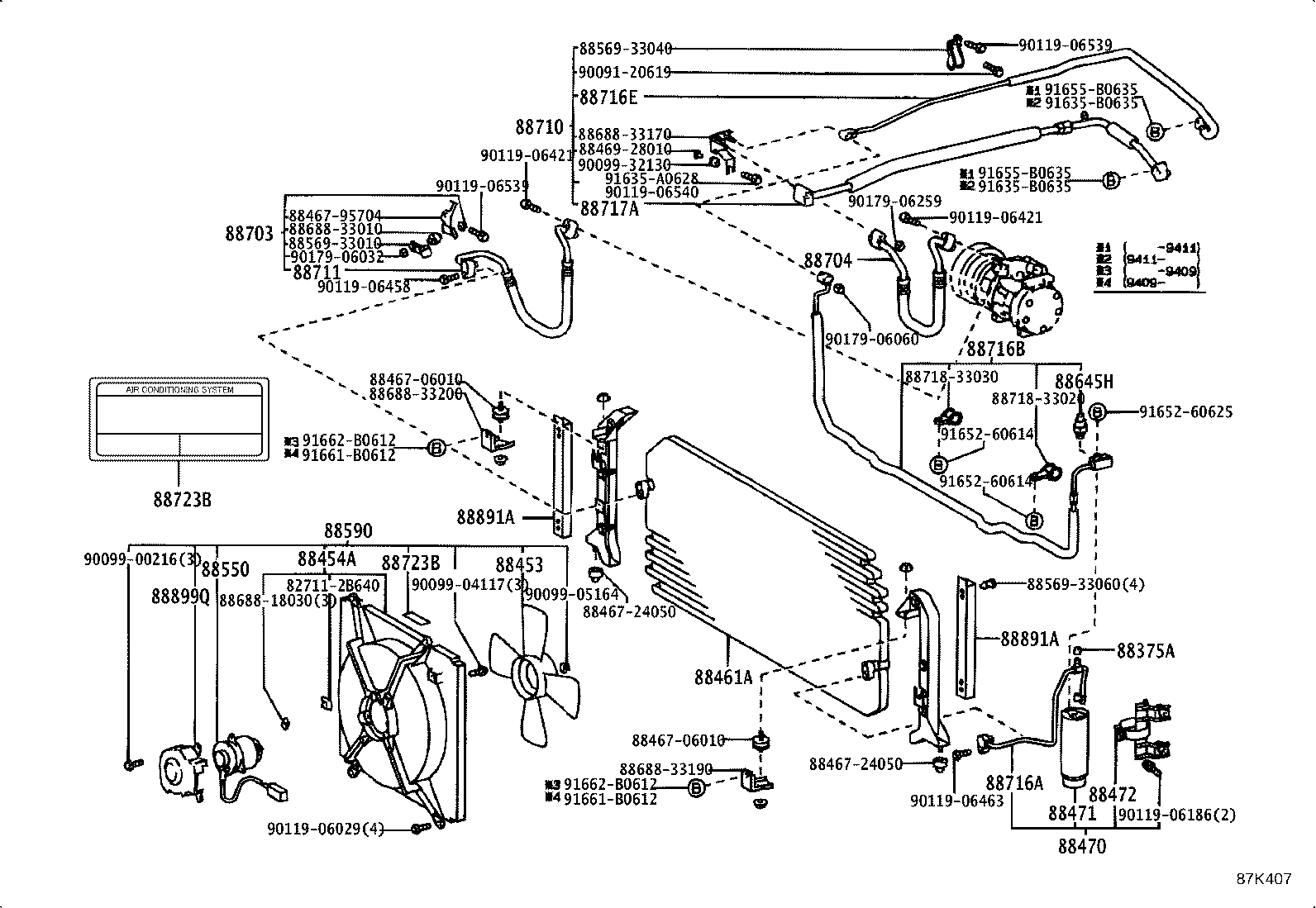

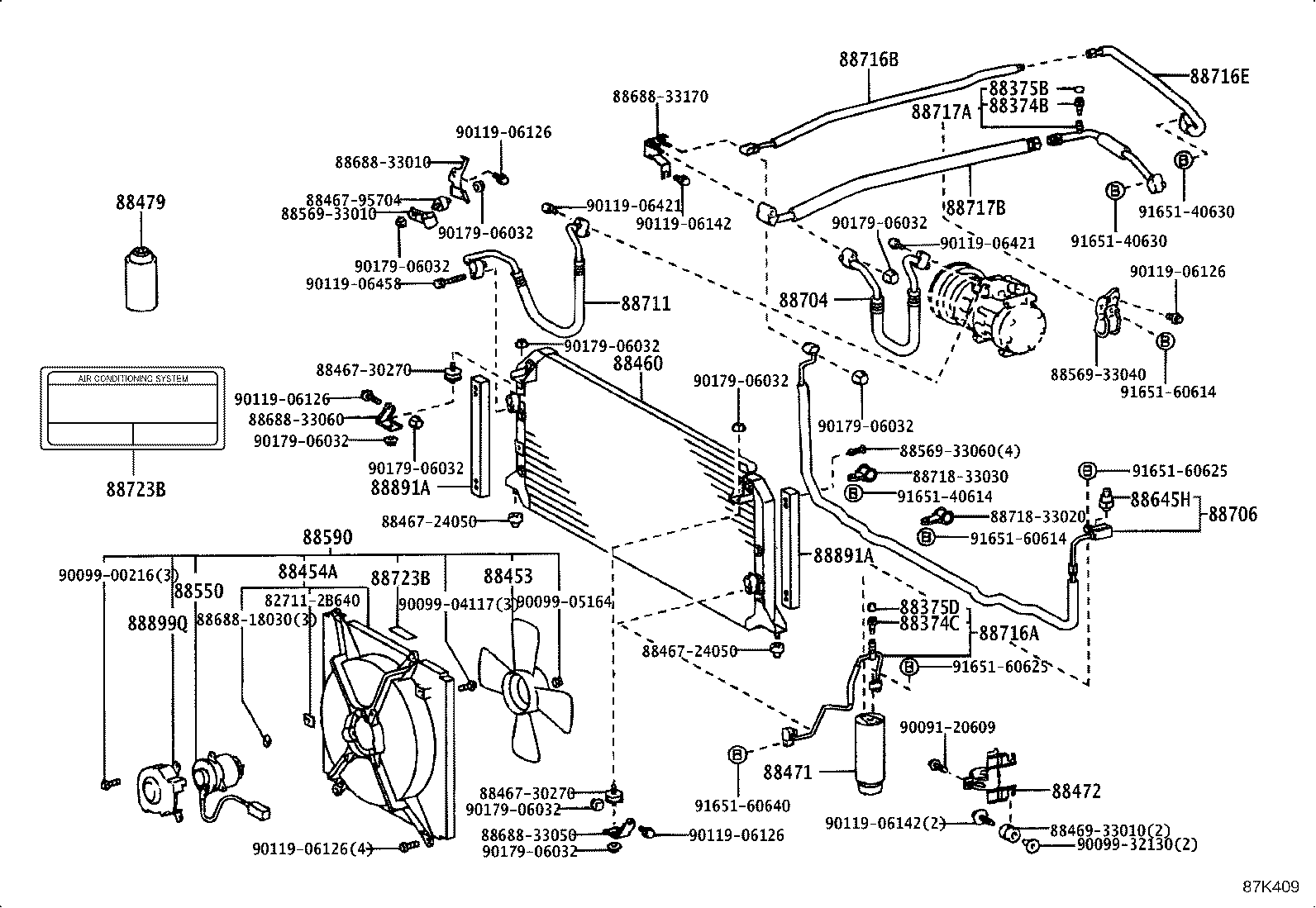

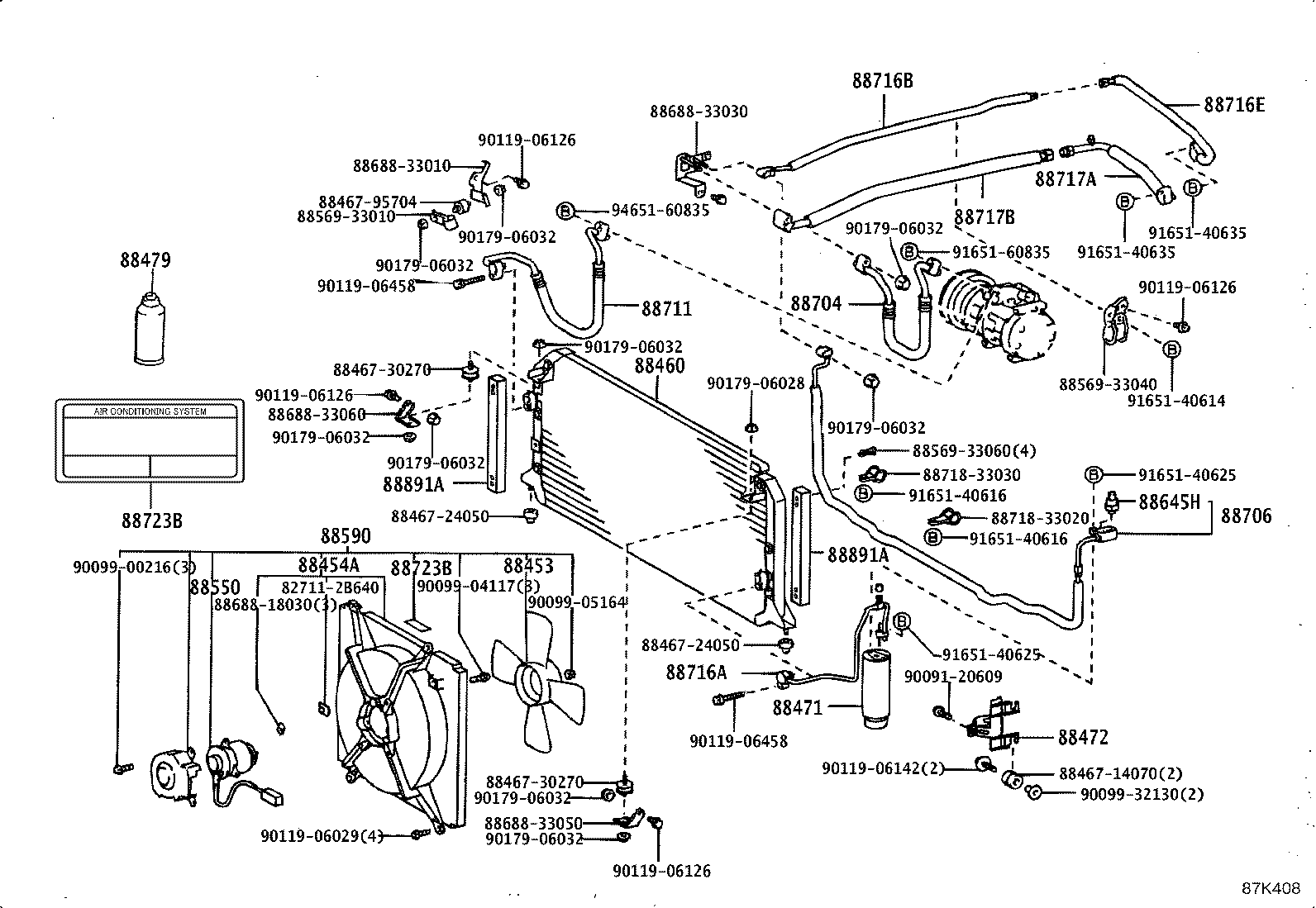

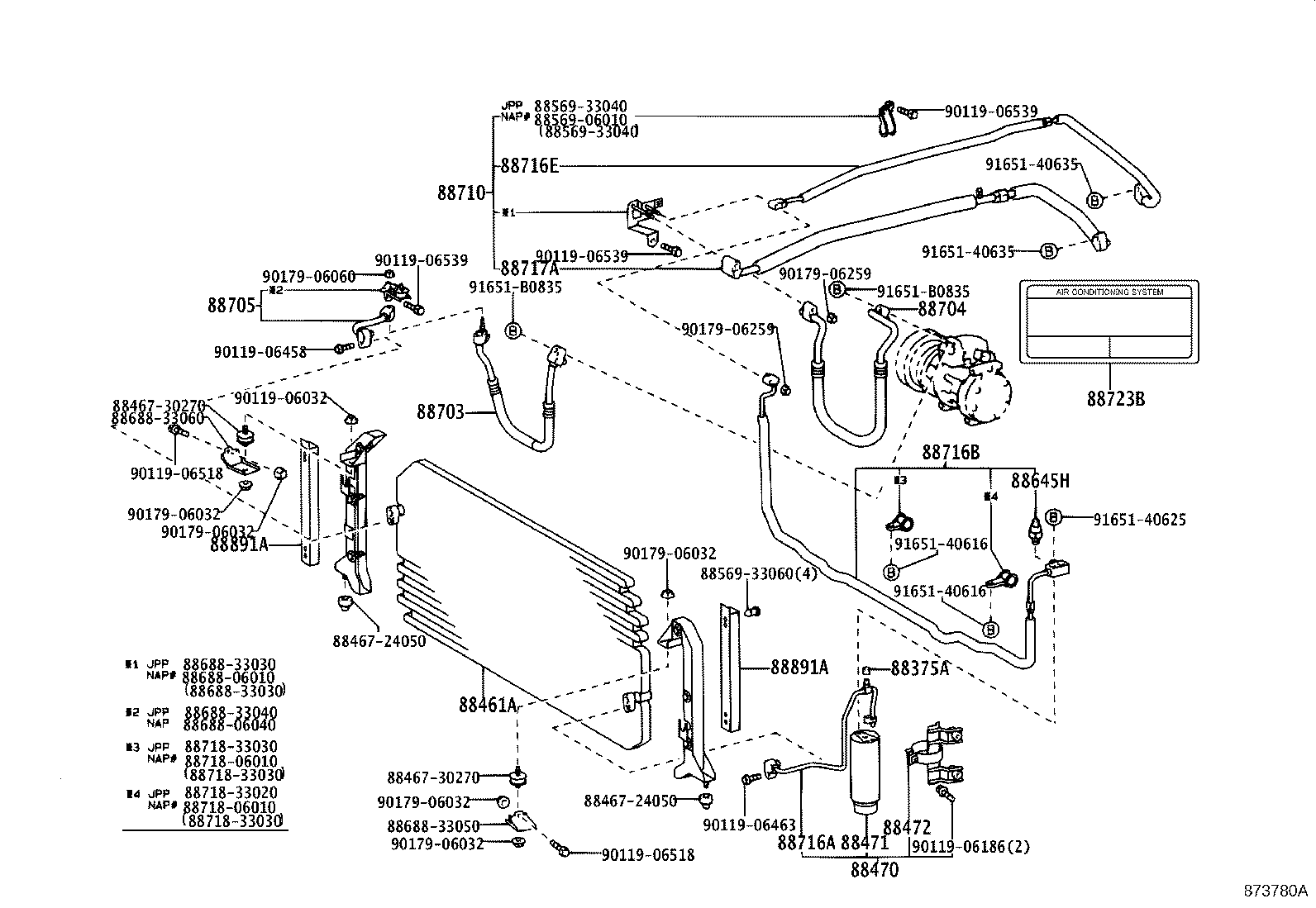

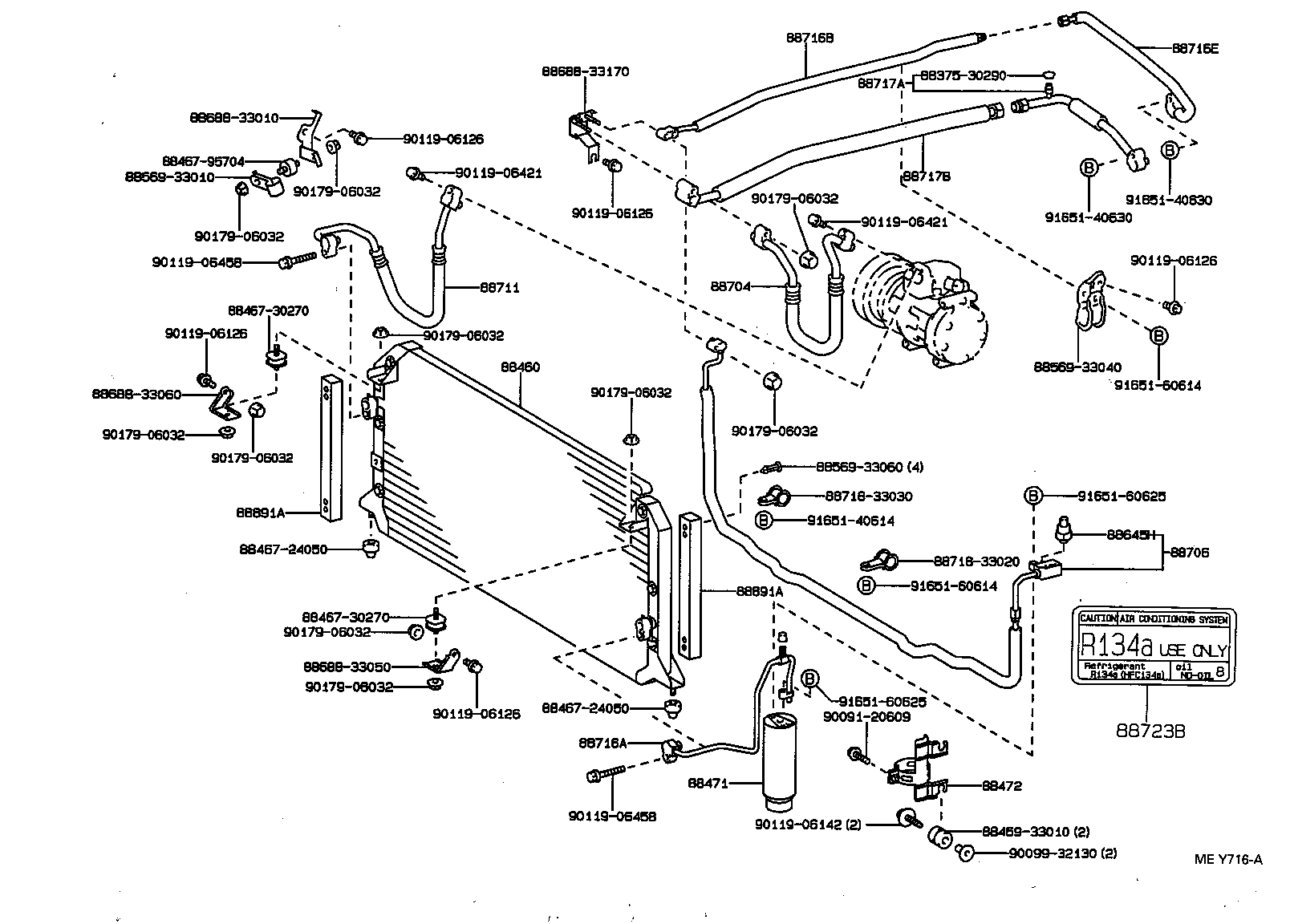

Figure 87K406 87K406 1991-06 → 1994-08 Figure 87K407 87K407 1994-08 → 1996-08 Figure 873780A 873780A 1991-06 → 1993-08 Figure MEY714B MEY714B 1993-08 → 1996-08 Figure 87K408 87K408 1991-06 → 1994-08 Figure 87K409 87K409 1994-08 → 1996-08 Figure 87K410 87K410 1991-06 → 1993-08 Figure MEY716A MEY716A 1994-08 → 1996-08 Figure NE2451 NE2451 1991-06 → 1996-08

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705 Pipe Sub-assy, Discharge
88706 Pipe Sub-assy, Liquid
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
