Toyota Camry (NAP)
1996-07 → 2001-07 · chassis SXV20,MCV20 · catalogue 283460 · United States
Discontinued model
Data version 2001-11

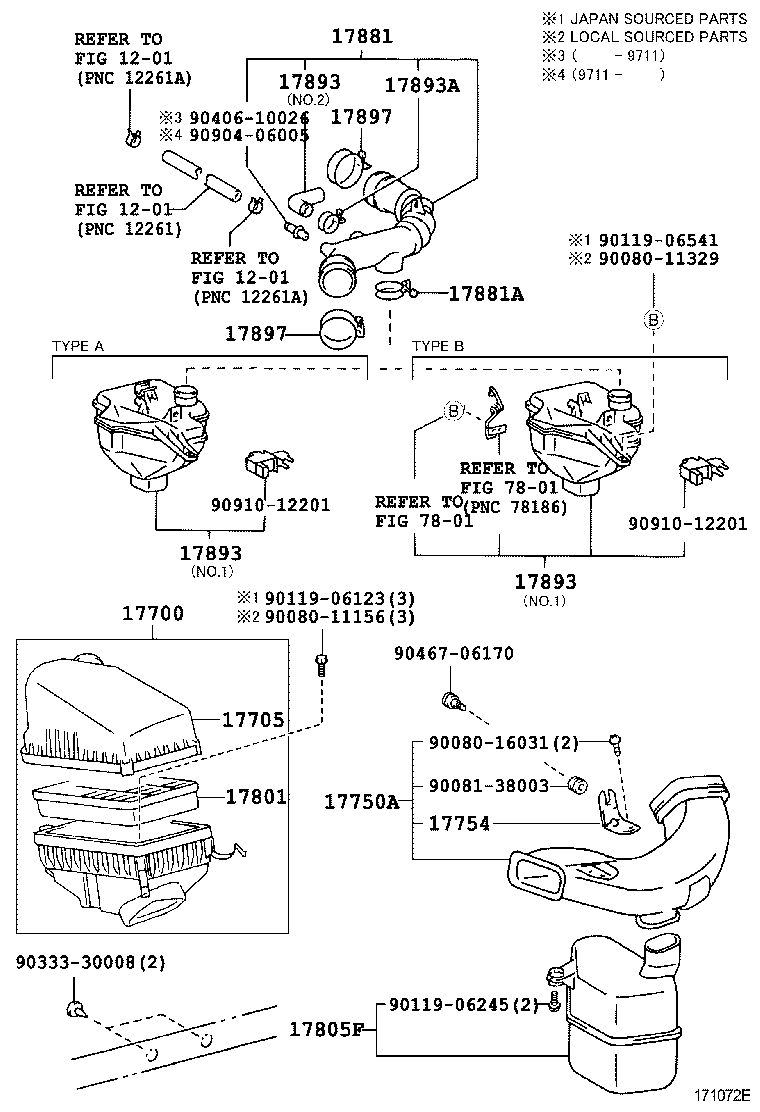

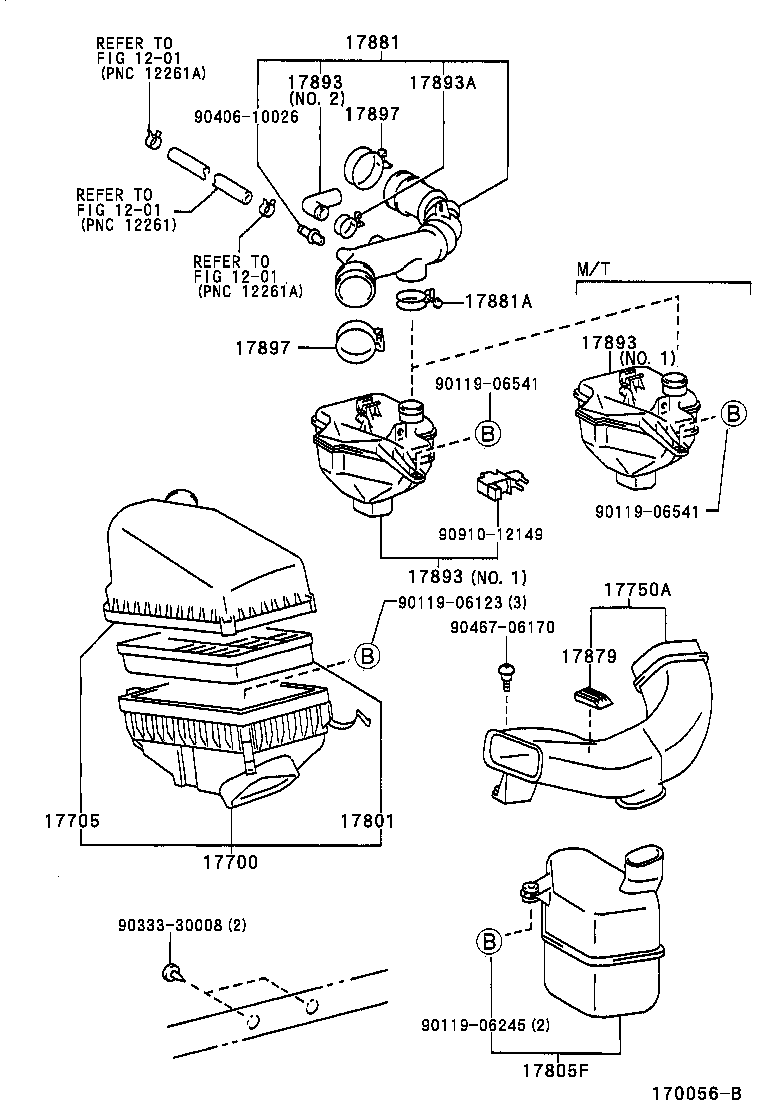

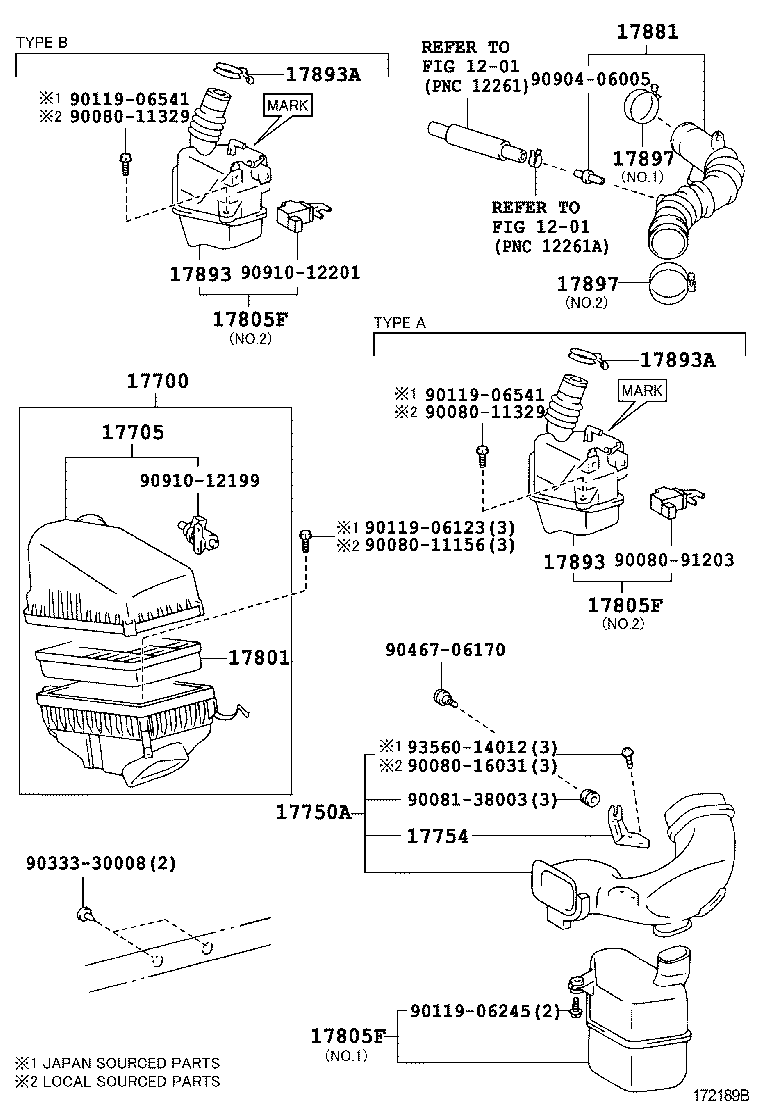

Air Cleaner
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17346C | Hose, NO.6 |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17750A | Inlet Assy, Air Cleaner |
| 17754 | Stay, Air Cleaner Inlet |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805F | Resonator Sub-assy, Intake Air |
| 17879 | Pad, Air Cleaner Inlet |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 17897 | Clamp, Hose(FOR AIR CLEANER) |
| 22020 | Meter Assy, Air Flow W/Air Cleaner |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
