Toyota Camry (NAP)

1996-07 → 2001-07 · chassis SXV20,MCV20 · catalogue 283460 · United States

Discontinued model Data version 2001-11

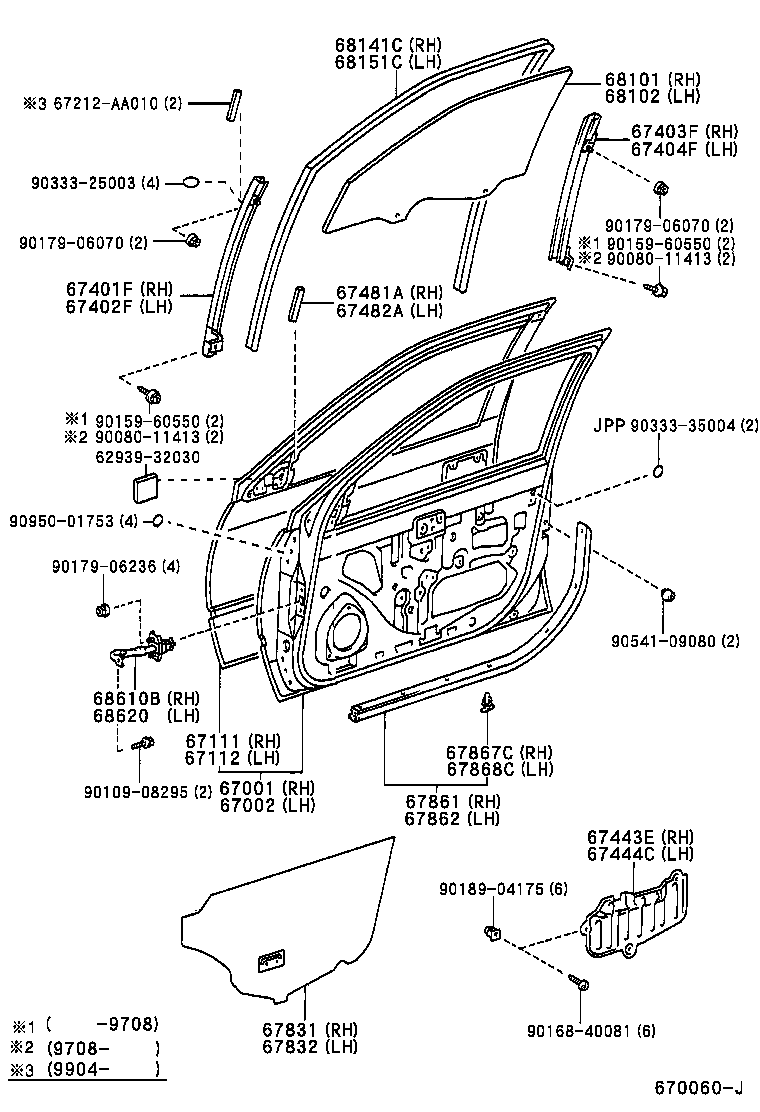

Front Door Panel & Glass

36 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67443E	Plate, Front Door Inside Panel, RH
67444C	Plate, Front Door Inside Panel, LH
67481A	Seal, Front Door Front Lower Frame, RH
67482A	Seal, Front Door Front Lower Frame, LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67499	Retainer, Front Door Lower Frame Bracket Garnish
67601	Board Sub-assy, Front Door Trim, RH
67601A	Retainer(FOR FRONT DOOR TRIM BOARD)
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67601G	Plug, Hole(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67651H	Grille, Speaker Door, RH
67652C	Grille, Speaker Door, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68170	Weatherstrip Assy, Front Door Glass, Inner
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
74293	Plate, Front Door Armrest, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
