Toyota Camry (NAP)
1996-07 → 2001-07 · chassis SXV20,MCV20 · catalogue 283460 · United States
Discontinued model
Data version 2001-11
Anti-theft Device
9 part groups · 2 illustrations

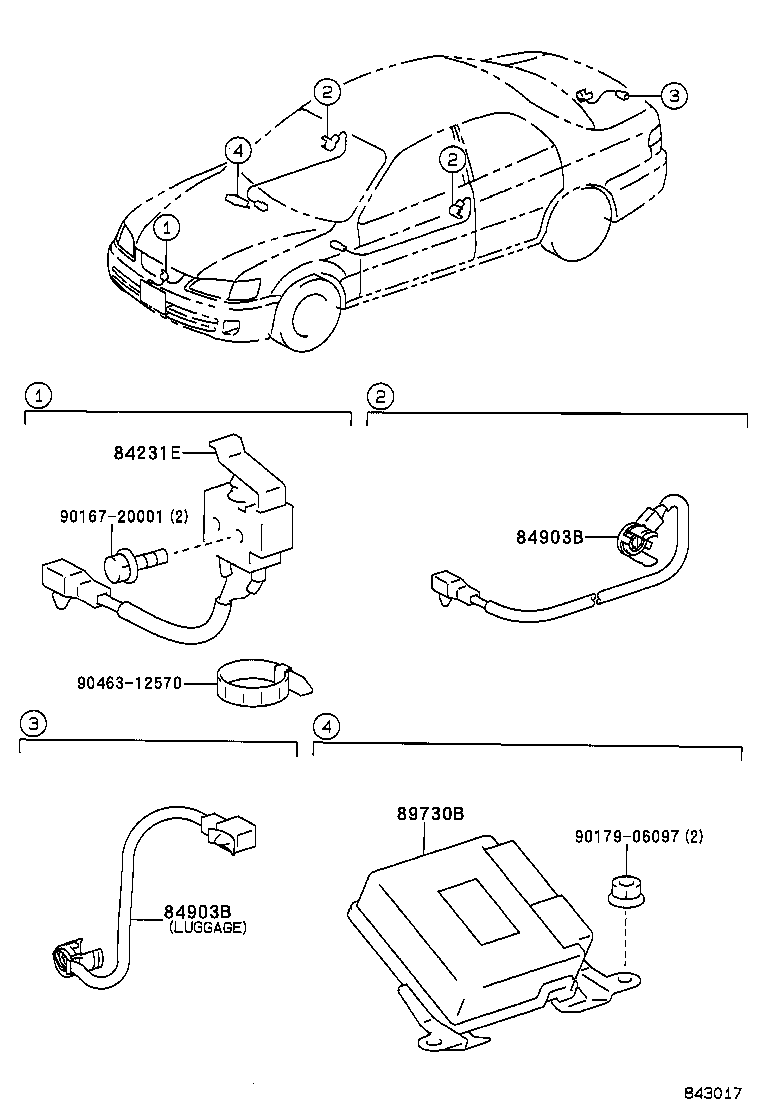

Part groups
| PNC | Description |
|---|---|
| 84231E | Switch, Courtesy(FOR SECURITY) |
| 84903B | Switch Sub-assy, Door Unlock |
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89708B | Cylinder & Transmitter Set, Wireless Door Lock |
| 89730B | Computer Assy, Theft Warning |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
