Toyota Camry (NAP)
2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States
Discontinued model
Data version 2006-08

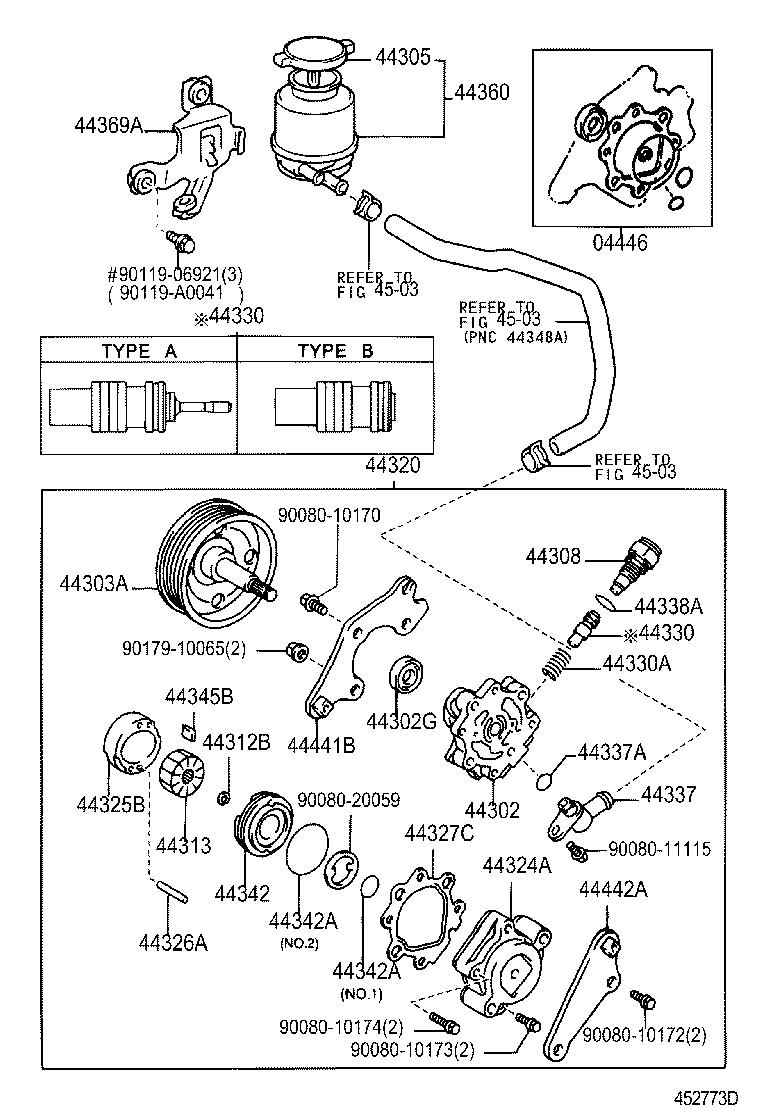

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-06040 |
Gasket Kit, Power Steering Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 04446-06050 |
Gasket Kit, Power Steering Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 04446-02140 |
Gasket Kit, Power Steering Pump
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 04446-04010 |
Gasket Kit, Power Steering Pump
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 44302 — Housing Sub-assy, Vane Pump, Front | ||||
| 44302-06050 |
Housing Sub-assy, Vane Pump, Front
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44302-07011 |
Housing Sub-assy, Vane Pump, Front
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44302G — Seal, Oil, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90080-31020 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44303A — Shaft Sub-assy, W/Pulley | ||||
| 44303-06010 |
Shaft Sub-assy, W/Pulley
2001-07 → 2004-05
ended
|
ACV30 NAP | — | |
| 44303-06030 |
Shaft Sub-assy, W/Pulley
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44303-06060 |
Shaft Sub-assy, W/Pulley
2004-05 → 2004-06
ended
|
ACV30 NAP | — | |
| 44303-06030 |
Shaft Sub-assy, W/Pulley
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 44303-06060 |
Shaft Sub-assy, W/Pulley
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-06030 |
Cap Sub-assy, Vane Pump Oil Reservoir
2001-07 → 2004-06
ended
|
ACV30,MCV3# NAP | — | |
| 44305-06030 |
Cap Sub-assy, Vane Pump Oil Reservoir
2004-06 → —
|
ACV30,MCV3# NAP | — | |
| 44308 — Union Sub-assy, Pressure Port | ||||
| 44308-06010 |
Union Sub-assy, Pressure Port
2001-07 → 2003-03
ended
|
ACV30 NAP | — | |
| 44308-06020 |
Union Sub-assy, Pressure Port
2001-07 → 2003-03
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44308-33060 |
Union Sub-assy, Pressure Port
2001-07 → 2004-06
ended
|
MCV3# NAP SE | — | |
| 44308-33060 note |
Union Sub-assy, Pressure Port
2002-02 → 2004-06
ended
|
MCV30 NAP XLE | — | |
| 44338-06030 |
Union Sub-assy, Pressure Port
2003-03 → 2004-06
ended
|
ACV30 NAP | — | |
| 44338-06040 |
Union Sub-assy, Pressure Port
2003-03 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44312B — Ring, Snap, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90080-52033 |
Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
2001-07 → 2004-06
ended
|
ACV30,MCV3# NAP | — | |
| 44313 — Rotor, Vane Pump | ||||
| 44313-06010 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44313-06020 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44313-06030 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44313-06040 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44313-06050 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44313-06060 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44313-06070 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44313-06080 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44313-06090 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44313-06100 note |
Rotor, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44320 — Pump Assy, Vane | ||||
| 44310-06070 |
Pump Assy, Vane
2001-07 → 2004-05
ended
|
ACV30 NAP | — | |
| 44310-06071 |
Pump Assy, Vane
2004-05 → 2004-06
ended
|
ACV30 NAP | — | |
| 44310-06080 note |
Pump Assy, Vane
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44310-06110 |
Pump Assy, Vane
2001-07 → 2003-01
ended
|
MCV30 NAP SE | — | |
| 44310-06110 note |
Pump Assy, Vane
2002-02 → 2004-06
ended
|
MCV30 NAP XLE;MCV3# NAP +2 | — | |
| 44310-06071 |
Pump Assy, Vane
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44310-06080 note |
Pump Assy, Vane
2004-06 → 2006-02
ended
|
MCV30 NAP | — | |
| 44310-06110 note |
Pump Assy, Vane
2004-06 → 2006-02
ended
|
MCV3# NAP (SE,XLE) | — | |
| 44324A — Housing, Pump, Rear | ||||
| 44324-07010 |
Housing, Pump, Rear
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44325B — Ring, Vane Pump Cam | ||||
| 44325-06010 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44325-06020 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44325-06030 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44325-06040 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44325-06050 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44325-06060 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44325-06070 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44325-06080 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44325-06090 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44325-06100 note |
Ring, Vane Pump Cam
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44326A — Pin, Straight(FOR VANE PUMP CAM RING) | ||||
| 90080-25024 note |
Pin, Straight(FOR VANE PUMP CAM RING)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44327C — Gasket, Vane Pump Housing | ||||
| 44327-04010 |
Gasket, Vane Pump Housing
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44330 — Valve Assy, Flow Control | ||||
| 44330-06071 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44330-06081 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44330-06091 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44330-06101 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44330-06111 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44330-06121 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44330-06130 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV3# NAP SE;MCV30 NAP +2 | — | |
| 44330-06130 note |
Valve Assy, Flow Control
2002-02 → 2004-06
ended
|
MCV30 NAP XLE 4FC | — | |
| 44330-06140 note |
Valve Assy, Flow Control
2002-02 → 2004-06
ended
|
MCV30 NAP XLE 4FC | — | |
| 44330-06140 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV3# NAP SE;MCV30 NAP +2 | — | |
| 44330-06150 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV3# NAP SE;MCV30 NAP +2 | — | |
| 44330-06150 note |
Valve Assy, Flow Control
2002-02 → 2004-06
ended
|
MCV30 NAP XLE 4FC | — | |
| 44330-06160 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV3# NAP SE;MCV30 NAP +2 | — | |
| 44330-06160 note |
Valve Assy, Flow Control
2002-02 → 2004-06
ended
|
MCV30 NAP XLE 4FC | — | |
| 44330-06170 note |
Valve Assy, Flow Control
2002-02 → 2004-06
ended
|
MCV30 NAP XLE 4FC | — | |
| 44330-06170 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV3# NAP SE;MCV30 NAP +2 | — | |
| 44330-06180 note |
Valve Assy, Flow Control
2002-02 → 2004-06
ended
|
MCV30 NAP XLE 4FC | — | |
| 44330-06180 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV3# NAP SE;MCV30 NAP +2 | — | |
| 44330-06250 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44330-06260 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44330-06270 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44330-06280 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44330-06290 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44330-06300 note |
Valve Assy, Flow Control
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44330A — Spring, Compression(FOR FLOW CONTROL VALVE) | ||||
| 90080-50221 |
Spring, Compression(FOR FLOW CONTROL VALVE)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 90080-50222 |
Spring, Compression(FOR FLOW CONTROL VALVE)
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44337 — Union, Power Steering Suction Port | ||||
| 44337-06040 |
Union, Power Steering Suction Port
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44337-32110 |
Union, Power Steering Suction Port
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44337-06040 |
Union, Power Steering Suction Port
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 44337-32110 |
Union, Power Steering Suction Port
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44337A — Ring, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30034 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 90301-11020 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 90080-30034 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 90301-11020 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44338A — Ring, O(FOR PRESSURE PORT UNION) | ||||
| 90080-30035 |
Ring, O(FOR PRESSURE PORT UNION)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 90301-18009 note |
Ring, O(FOR PRESSURE PORT UNION)
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44342 — Plate, Vane Pump Side, Rear | ||||
| 44342-06010 |
Plate, Vane Pump Side, Rear
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44342A — Ring, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30031 note |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 90080-30032 note |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44345B — Plate, Vane Pump | ||||
| 44345-04010 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44345-04020 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44345-04030 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44345-04040 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44345-04050 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44345-06010 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44345-06020 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44345-06030 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44345-06040 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44345-06050 note |
Plate, Vane Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-06030 |
Reservoir Assy, Vane Pump Oil
2001-07 → 2004-06
ended
|
ACV30,MCV3# NAP | — | |
| 44360-06030 |
Reservoir Assy, Vane Pump Oil
2004-06 → —
|
ACV30,MCV3# NAP | — | |
| 44369A — Bracket, Oil Reservoir, NO.1 | ||||
| 44390-06020 |
Bracket, Oil Reservoir, NO.1
2001-07 → 2004-06
ended
|
ACV30,MCV3# NAP | — | |
| 44390-06020 |
Bracket, Oil Reservoir, NO.1
2004-06 → —
|
ACV30,MCV3# NAP | — | |
| 44441B — Bracket, Pump, Front | ||||
| 44441-06040 |
Bracket, Pump, Front
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44441-06040 |
Bracket, Pump, Front
2004-06 → —
|
MCV3# NAP | — | |
| 44442A — Bracket, Vane Pump, Rear | ||||
| 44442-07010 |
Bracket, Vane Pump, Rear
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44442-07010 |
Bracket, Vane Pump, Rear
2004-06 → —
|
MCV3# NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
