Toyota Camry (NAP)
2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States
Discontinued model
Data version 2006-08

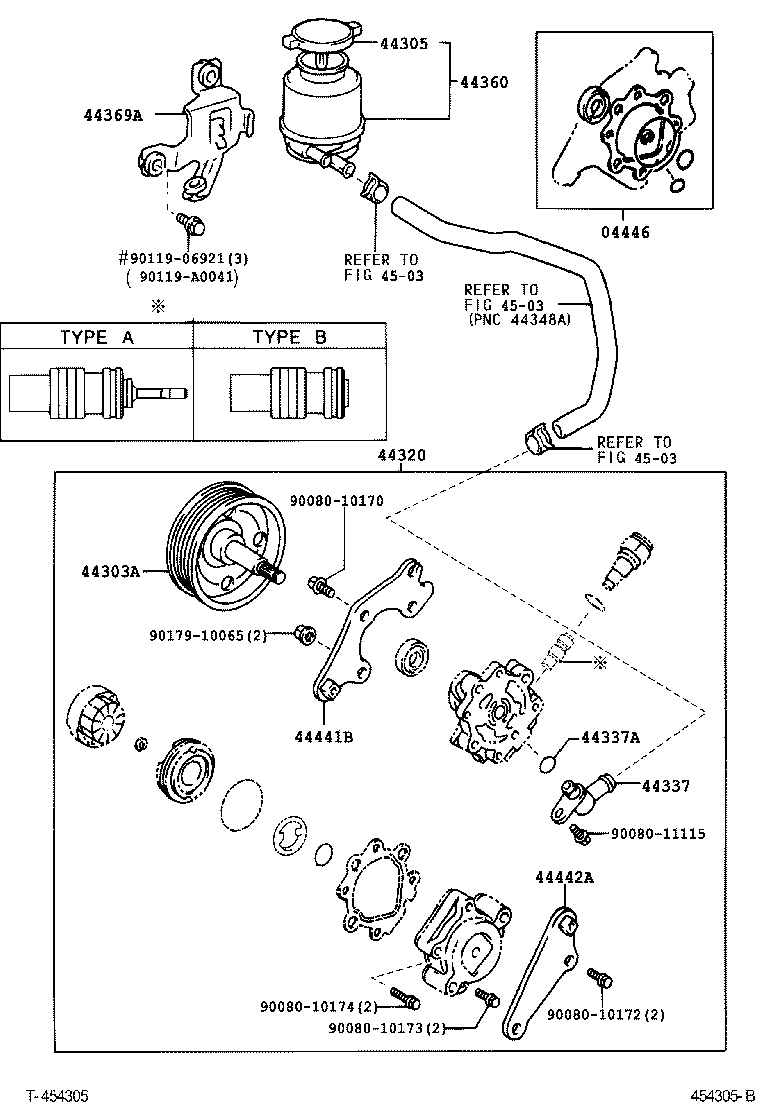

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-06040 |
Gasket Kit, Power Steering Pump
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 04446-06050 |
Gasket Kit, Power Steering Pump
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 04446-02140 |
Gasket Kit, Power Steering Pump
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 04446-04010 |
Gasket Kit, Power Steering Pump
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 44303A — Shaft Sub-assy, W/Pulley | ||||
| 44303-06010 |
Shaft Sub-assy, W/Pulley
2001-07 → 2004-05
ended
|
ACV30 NAP | — | |
| 44303-06030 |
Shaft Sub-assy, W/Pulley
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44303-06060 |
Shaft Sub-assy, W/Pulley
2004-05 → 2004-06
ended
|
ACV30 NAP | — | |
| 44303-06030 |
Shaft Sub-assy, W/Pulley
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 44303-06060 |
Shaft Sub-assy, W/Pulley
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-06030 |
Cap Sub-assy, Vane Pump Oil Reservoir
2001-07 → 2004-06
ended
|
ACV30,MCV3# NAP | — | |
| 44305-06030 |
Cap Sub-assy, Vane Pump Oil Reservoir
2004-06 → —
|
ACV30,MCV3# NAP | — | |
| 44320 — Pump Assy, Vane | ||||
| 44310-06070 |
Pump Assy, Vane
2001-07 → 2004-05
ended
|
ACV30 NAP | — | |
| 44310-06071 |
Pump Assy, Vane
2004-05 → 2004-06
ended
|
ACV30 NAP | — | |
| 44310-06080 note |
Pump Assy, Vane
2001-07 → 2004-06
ended
|
MCV30 NAP (LE,XLE) | — | |
| 44310-06110 |
Pump Assy, Vane
2001-07 → 2003-01
ended
|
MCV30 NAP SE | — | |
| 44310-06110 note |
Pump Assy, Vane
2002-02 → 2004-06
ended
|
MCV30 NAP XLE;MCV3# NAP +2 | — | |
| 44310-06071 |
Pump Assy, Vane
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44310-06080 note |
Pump Assy, Vane
2004-06 → 2006-02
ended
|
MCV30 NAP | — | |
| 44310-06110 note |
Pump Assy, Vane
2004-06 → 2006-02
ended
|
MCV3# NAP (SE,XLE) | — | |
| 44337 — Union, Power Steering Suction Port | ||||
| 44337-06040 |
Union, Power Steering Suction Port
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44337-32110 |
Union, Power Steering Suction Port
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 44337-06040 |
Union, Power Steering Suction Port
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 44337-32110 |
Union, Power Steering Suction Port
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44337A — Ring, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30034 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 90301-11020 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2001-07 → 2004-06
ended
|
ACV30 NAP | — | |
| 90080-30034 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2004-06 → 2006-02
ended
|
MCV3# NAP | — | |
| 90301-11020 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2004-06 → 2006-02
ended
|
ACV30 NAP | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-06030 |
Reservoir Assy, Vane Pump Oil
2001-07 → 2004-06
ended
|
ACV30,MCV3# NAP | — | |
| 44360-06030 |
Reservoir Assy, Vane Pump Oil
2004-06 → —
|
ACV30,MCV3# NAP | — | |
| 44369A — Bracket, Oil Reservoir, NO.1 | ||||
| 44390-06020 |
Bracket, Oil Reservoir, NO.1
2001-07 → 2004-06
ended
|
ACV30,MCV3# NAP | — | |
| 44390-06020 |
Bracket, Oil Reservoir, NO.1
2004-06 → —
|
ACV30,MCV3# NAP | — | |
| 44441B — Bracket, Pump, Front | ||||
| 44441-06040 |
Bracket, Pump, Front
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44441-06040 |
Bracket, Pump, Front
2004-06 → —
|
MCV3# NAP | — | |
| 44442A — Bracket, Vane Pump, Rear | ||||
| 44442-07010 |
Bracket, Vane Pump, Rear
2001-07 → 2004-06
ended
|
MCV3# NAP | — | |
| 44442-07010 |
Bracket, Vane Pump, Rear
2004-06 → —
|
MCV3# NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
