Toyota Camry (NAP)

2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 2 illustrations

Illustrations

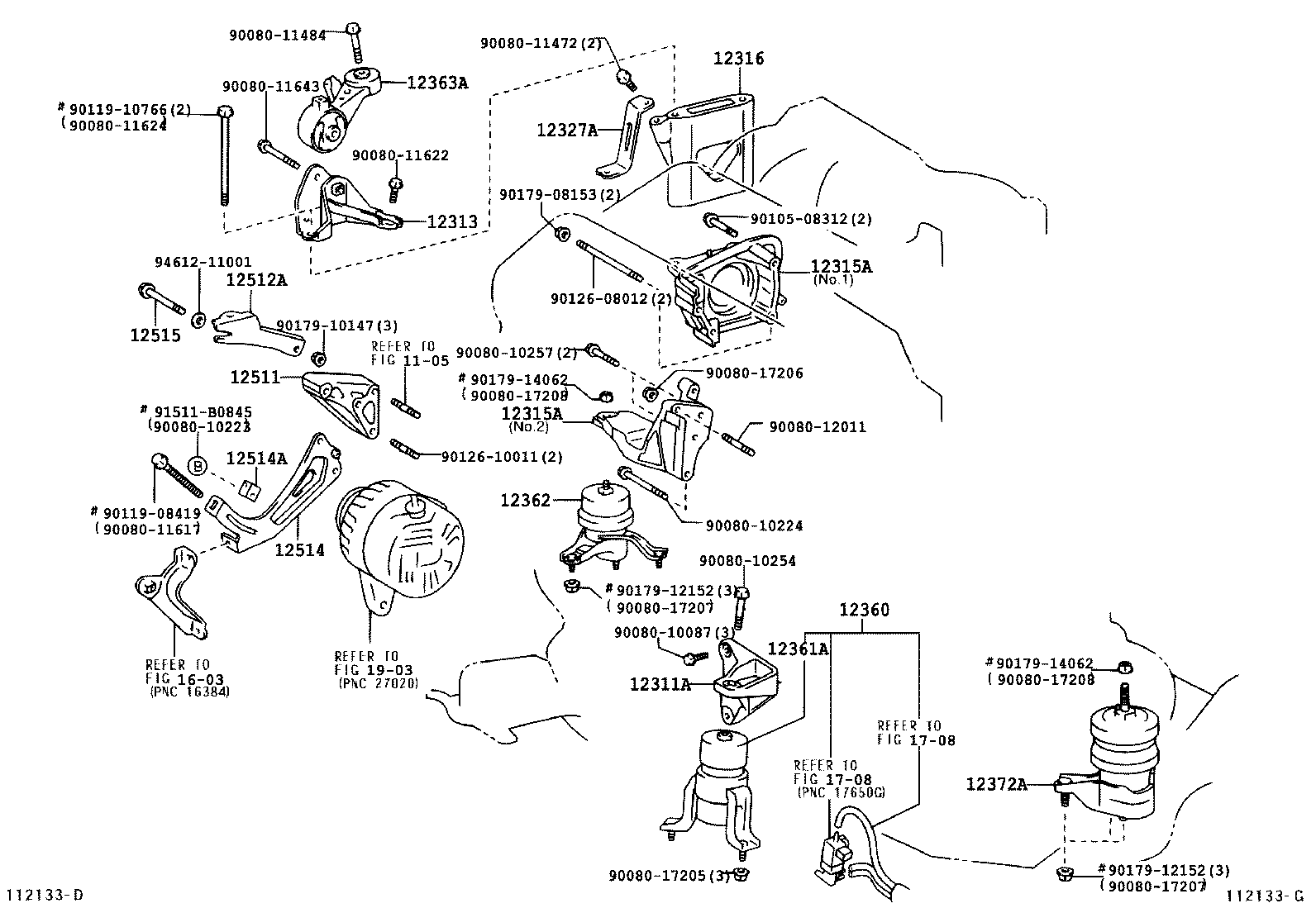

Figure 112113A 112113A 2001-07 → — Figure 112133H 112133H 2001-07 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12327A Stay, Engine Mounting, NO.2 RH
12360 Insulator Assy, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
12515 Bolt, Alternator Through
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
