Toyota Camry (NAP)

2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

22 part groups · 6 illustrations

Illustrations

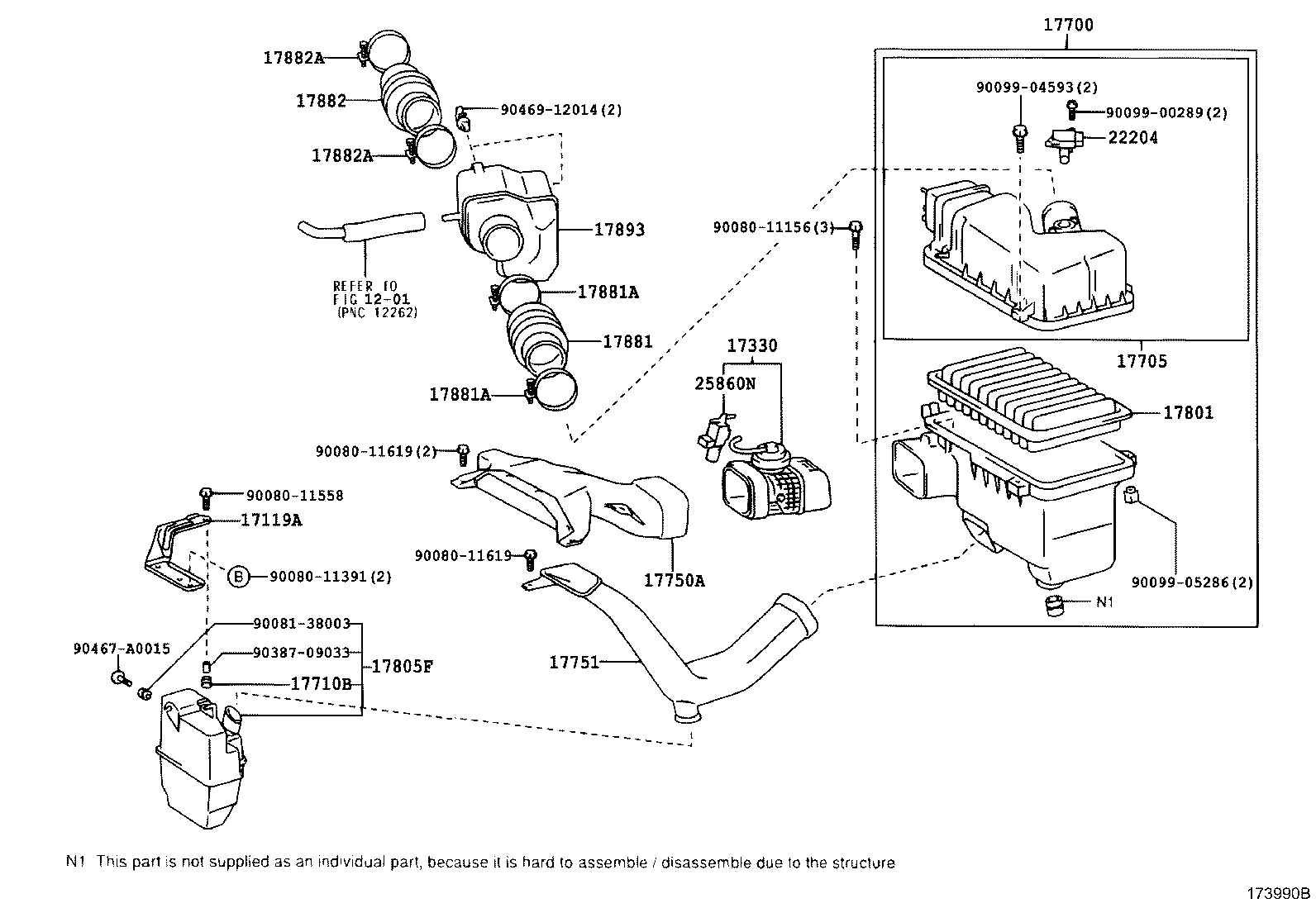

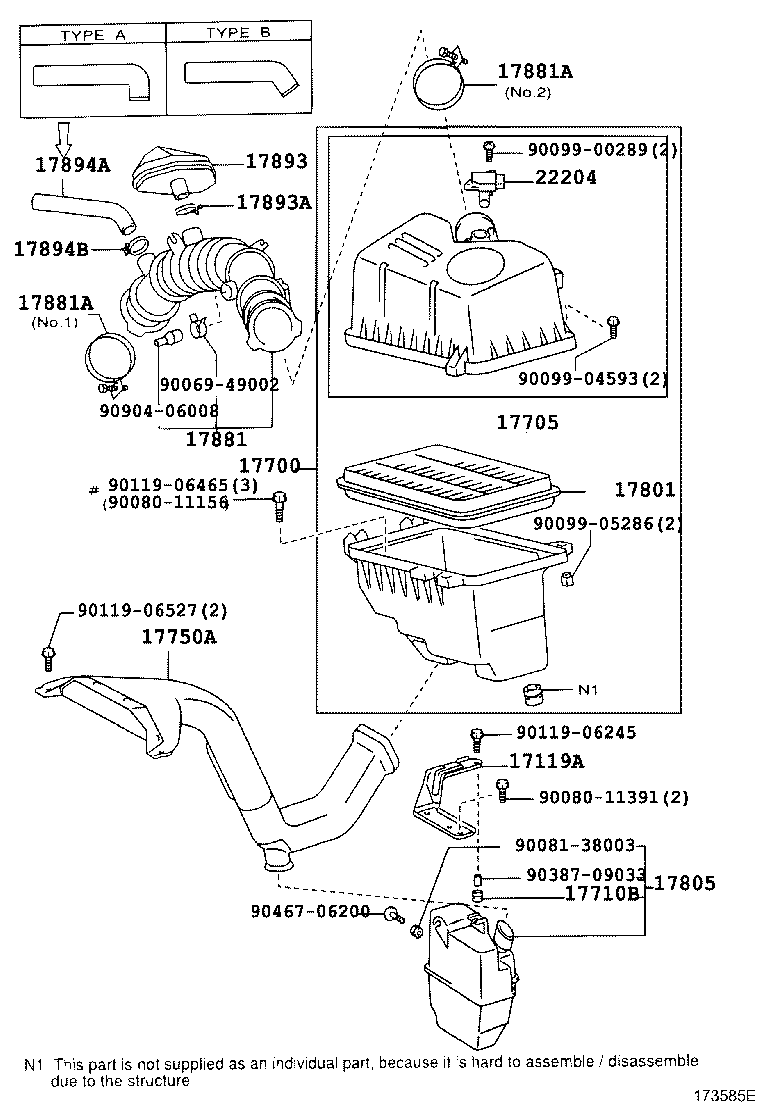

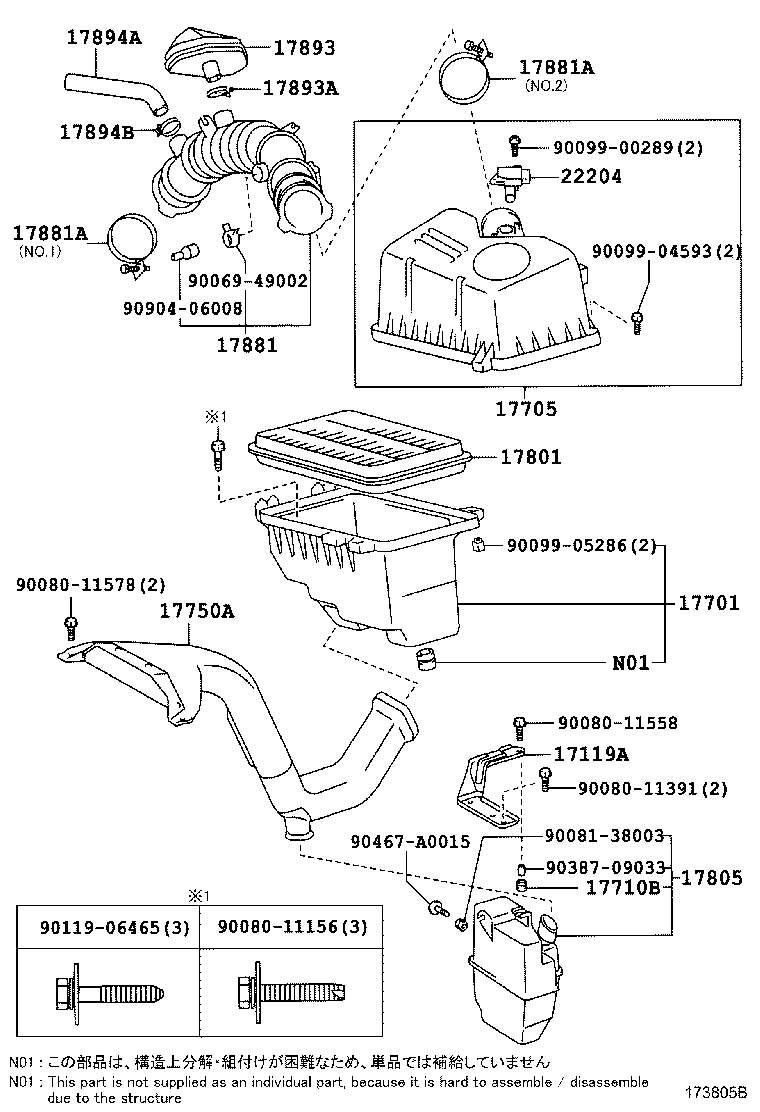

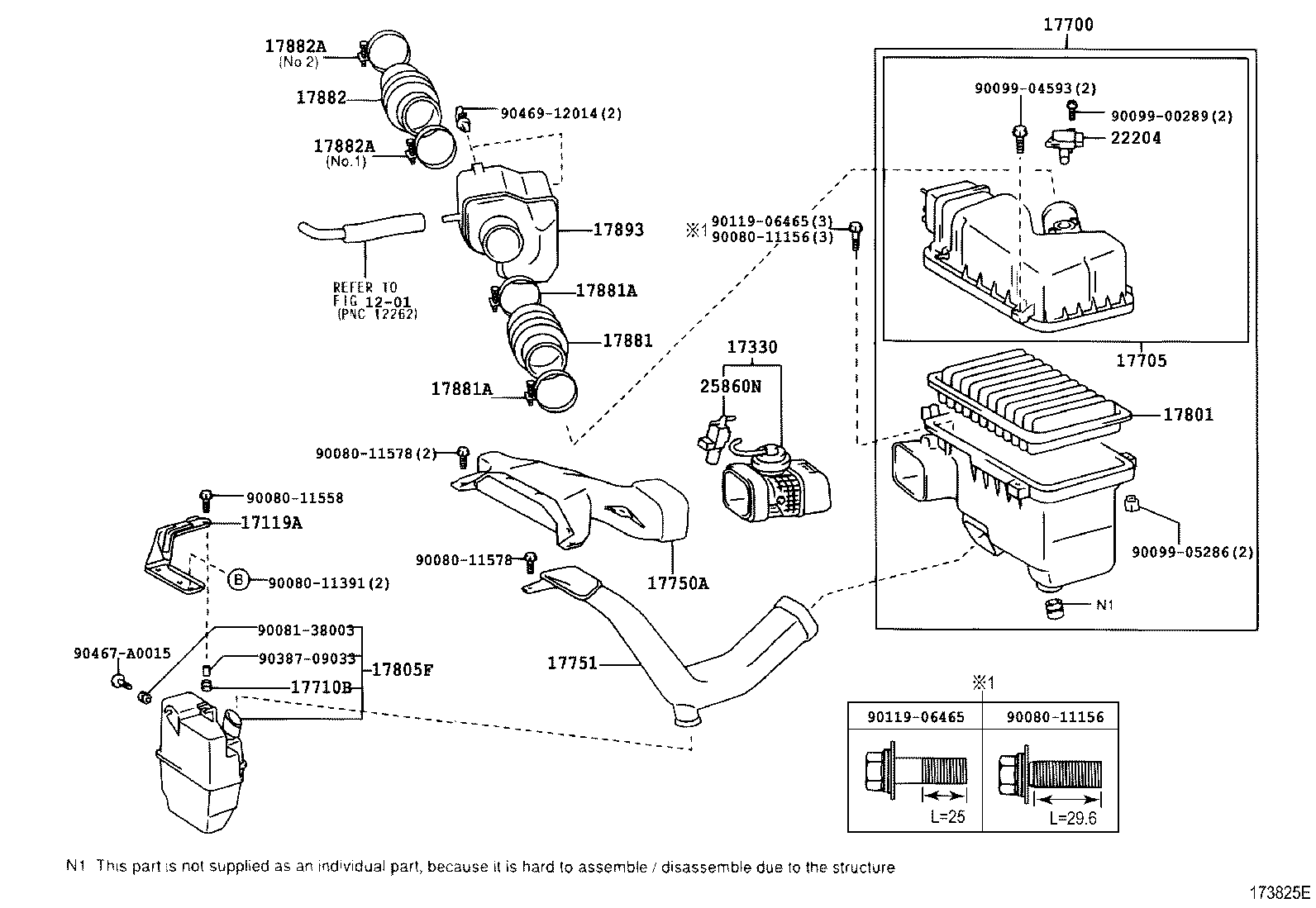

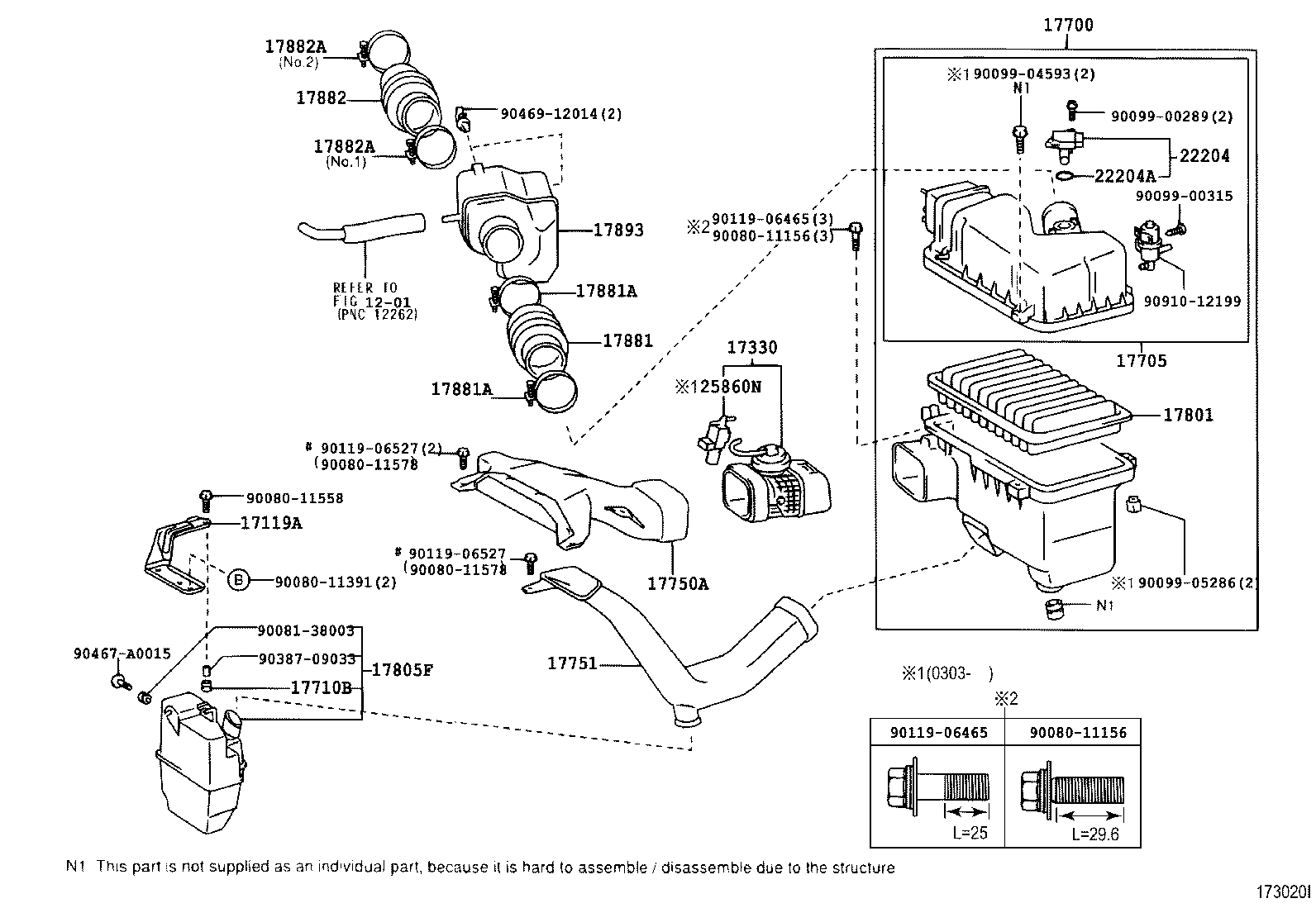

Figure 172983H 172983H 2001-07 → 2003-09 Figure 173585E 173585E 2003-02 → — Figure 173805B 173805B 2003-09 → — Figure 173020I 173020I 2001-07 → 2003-09 Figure 173825E 173825E 2003-09 → 2004-06 Figure 173990B 173990B 2004-06 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17330 Valve Assy, Intake Air Control, NO.3
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17750A Inlet Assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805F Resonator Sub-assy, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
25860N Valve Assy, Vacuum Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
