Toyota Camry (NAP)

2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

25 part groups · 3 illustrations

Illustrations

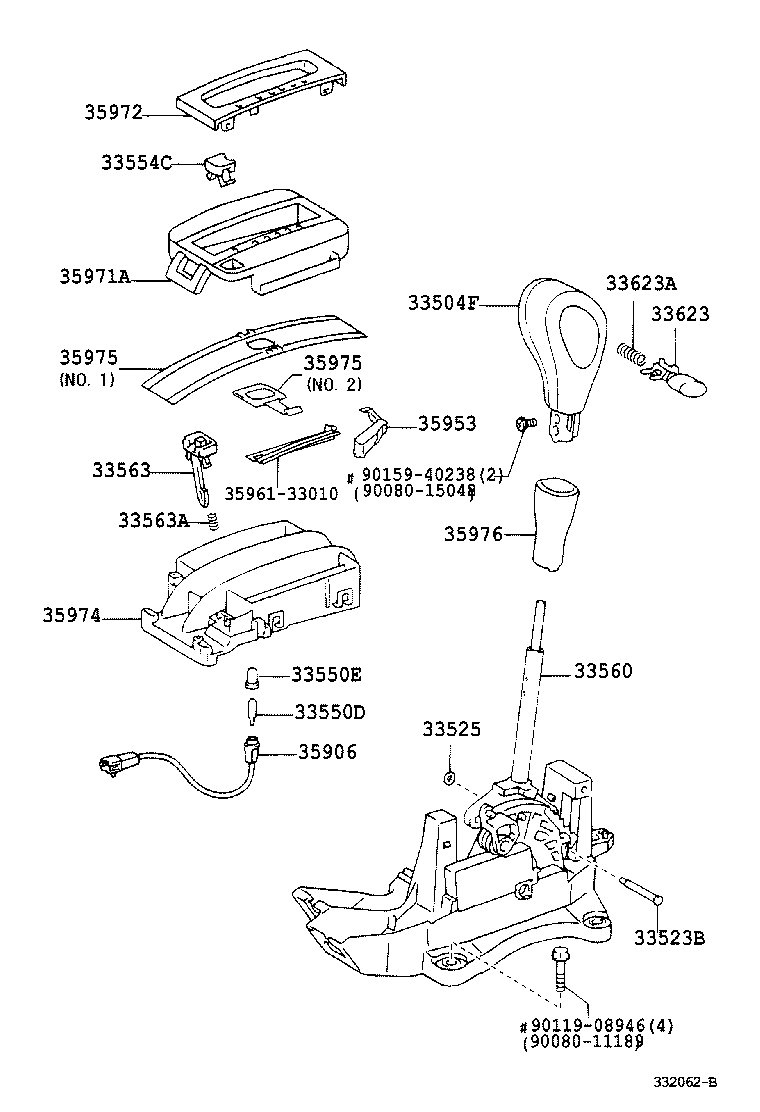

Figure 331606A 331606A 2001-07 → — Figure 332062B 332062B 2003-01 → — Figure 331607B 331607B 2001-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33521Q Housing, Shift Lever (FOR FLOOR SHIFT)
33523B Pin, Shift Lever (FOR FLOOR SHIFT)
33525 Support, Shift Lever
33544 Insert, Shift Lever, NO.1
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
33563 Button, Shift Lock Release
33563A Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
33623 Button, Shift Lever Knob
33623A Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33880A Cable Assy, Parking Lock (FOR FLOOR SHIFT)
35586C Pin, Toggle Lever Support
35906 Wire Sub-assy, Indicator Lamp
35953 Guide, Position Indicator Light
35971A Housing, Position Indicator, Upper
35972 Cover, Position Indicator Housing
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
