Toyota Camry (NAP)

2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

6 part groups · 6 illustrations

Illustrations

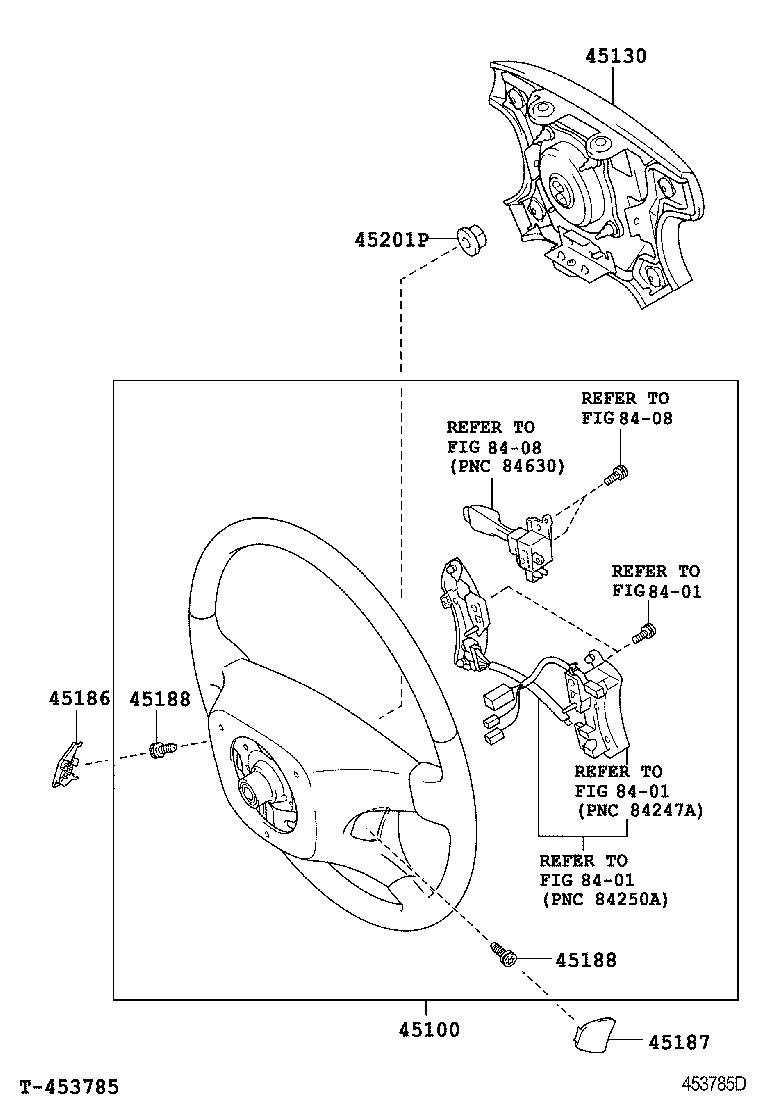

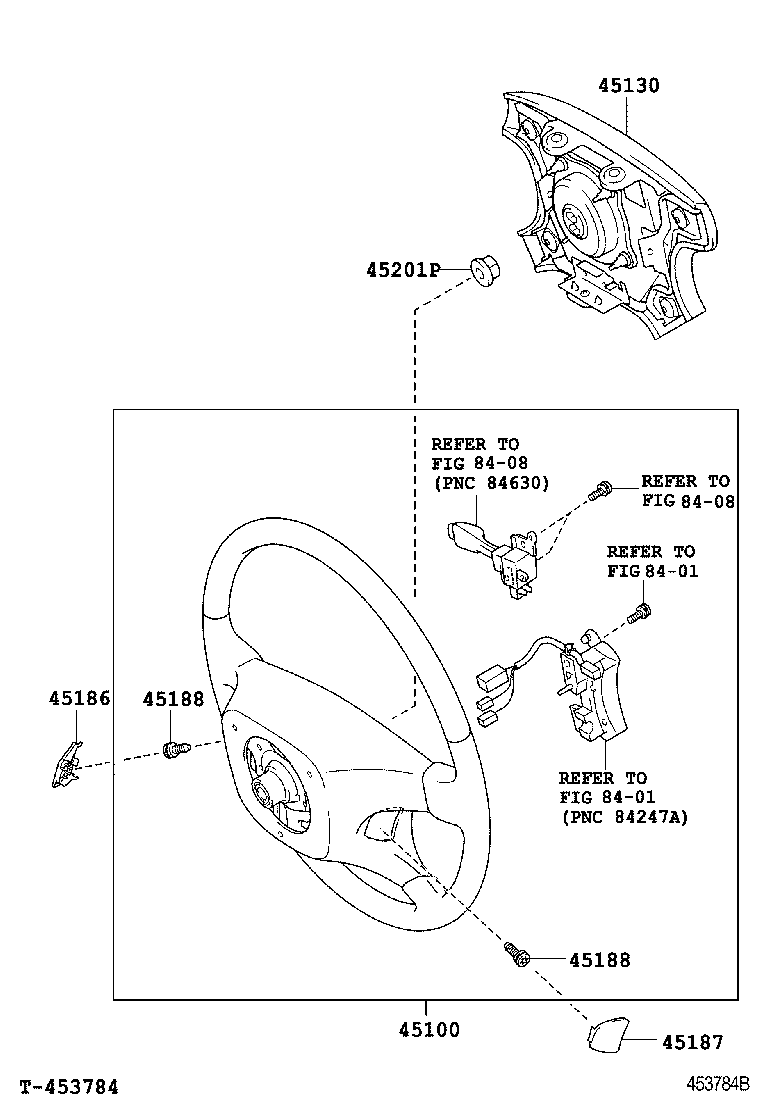

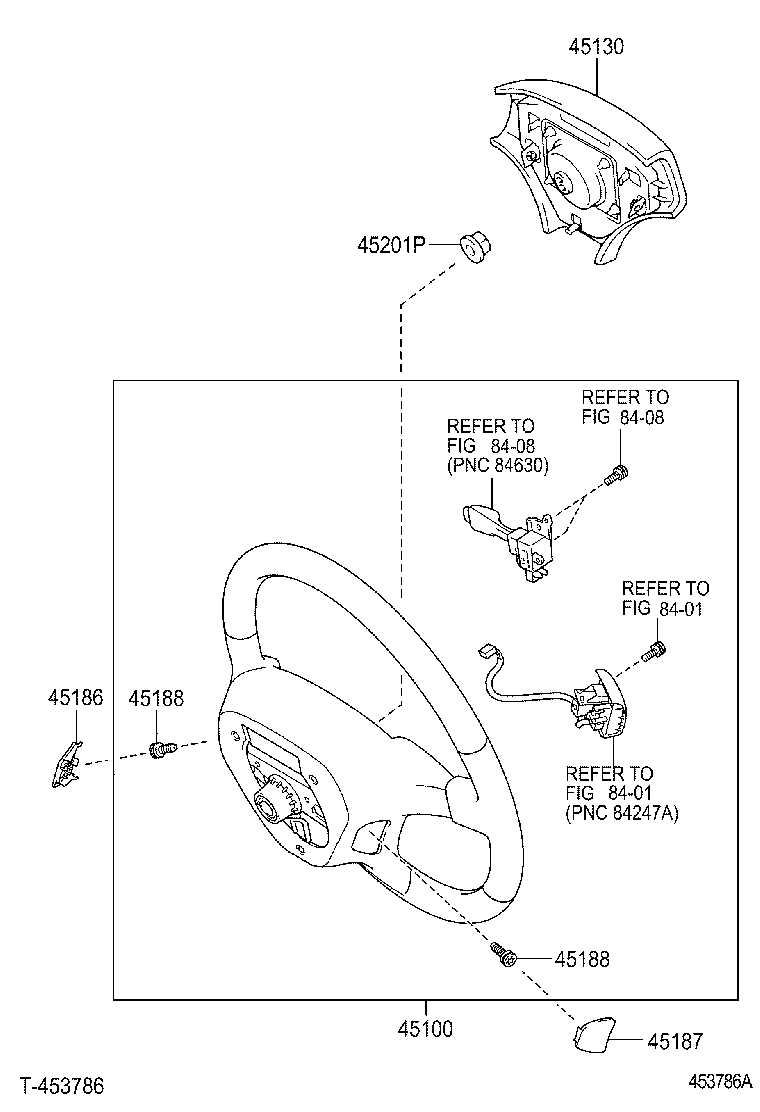

Figure 452765 452765 2001-07 → 2004-06 Figure 452766 452766 2001-07 → 2004-06 Figure 452767 452767 2001-07 → 2004-06 Figure 453786A 453786A 2004-06 → — Figure 453784B 453784B 2004-06 → — Figure 453785D 453785D 2004-06 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
