Toyota Camry (NAP)

2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

29 part groups · 2 illustrations

Illustrations

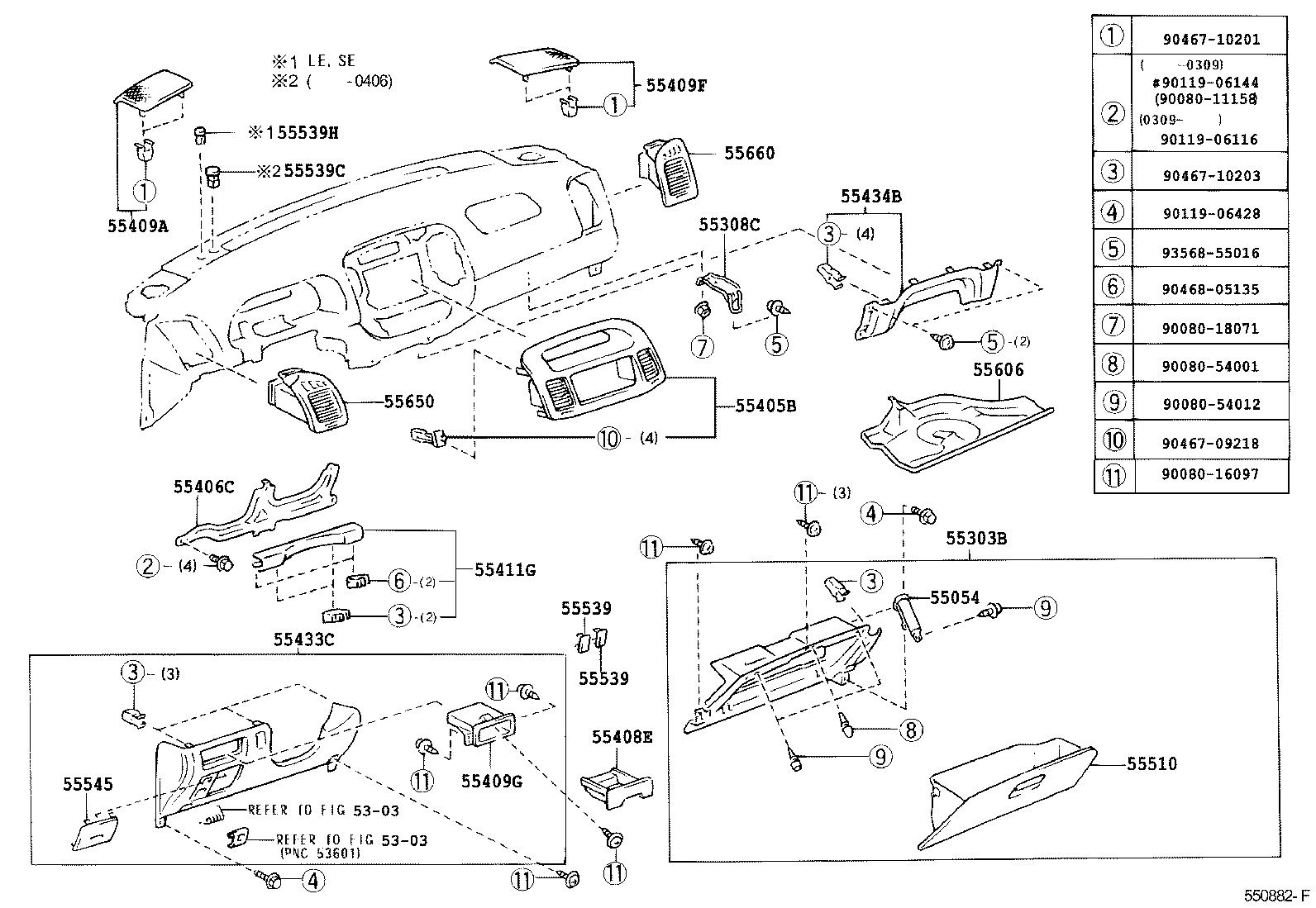

Figure 550881H 550881H 2001-07 → — Figure 550882F 550882F 2001-07 → —

Part groups

PNCDescription
55054 Stopper Sub-assy, Glove Compartment Door
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55331 Reinforcement, Instrument Panel
55394B Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406C Insert Sub-assy, Instrument Panel, Lower LH
55408E Box Sub-assy, Instrument Panel Coin
55409A Panel Sub-assy, Instrument Panel Speaker
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55409G Retainer Sub-assy, Coin Box
55411G Panel, Instrument Cluster Finish, NO.1
55427D Retainer, Instrument Finish Panel, Lower, NO.1
55433C Panel, Instrument Panel Finish, Lower LH
55434B Panel, Instrument Panel Finish, Lower Center
55458A Cap, Instrument Panel Safety Pad
55510 Door Assy, Glove Compartment
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539H Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55981 Garnish, Defroster Nozzle, NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
