Toyota Camry (NAP)

2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

18 part groups · 3 illustrations

Illustrations

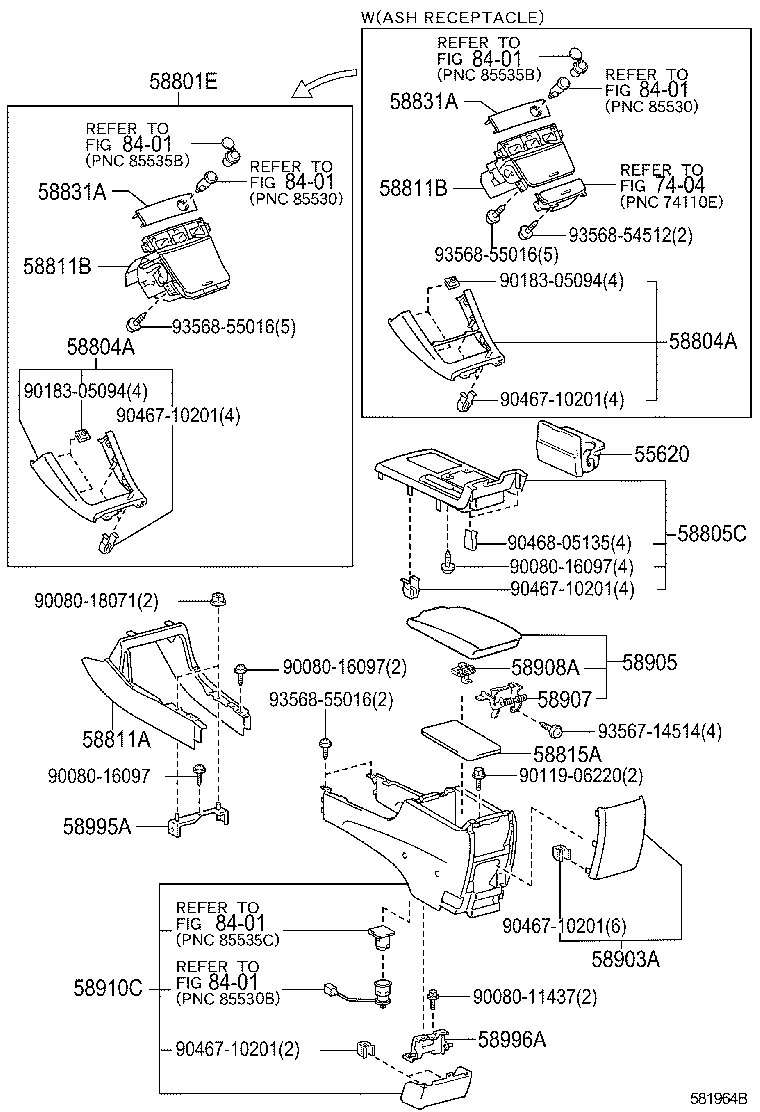

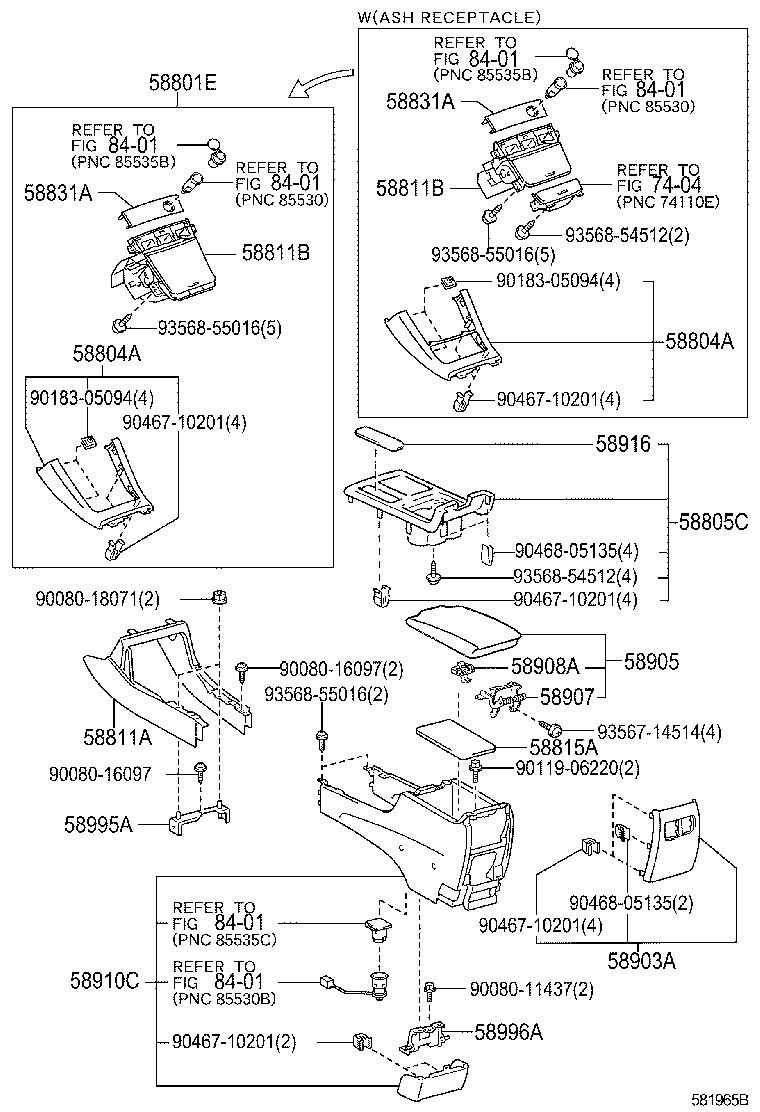

Figure 581430D 581430D 2001-07 → 2004-06 Figure 581964B 581964B 2004-06 → — Figure 581965B 581965B 2004-06 → —

Part groups

PNCDescription
55620 Holder Assy, Instrument Panel Cup
55625B Tray, Instrument Panel Cup Holder
58801E Box Sub-assy, Console, Upper
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58811A Box, Console, Front
58811B Box, Console
58815A Carpet, Console Box
58831A Garnish, Console Upper Panel, Front
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58916 Mat, Box Bottom
58917 Mat, Box Bottom, NO.2
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
