Toyota Camry (NAP)

2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States

Discontinued model Data version 2006-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

80 part groups · 11 illustrations

Illustrations

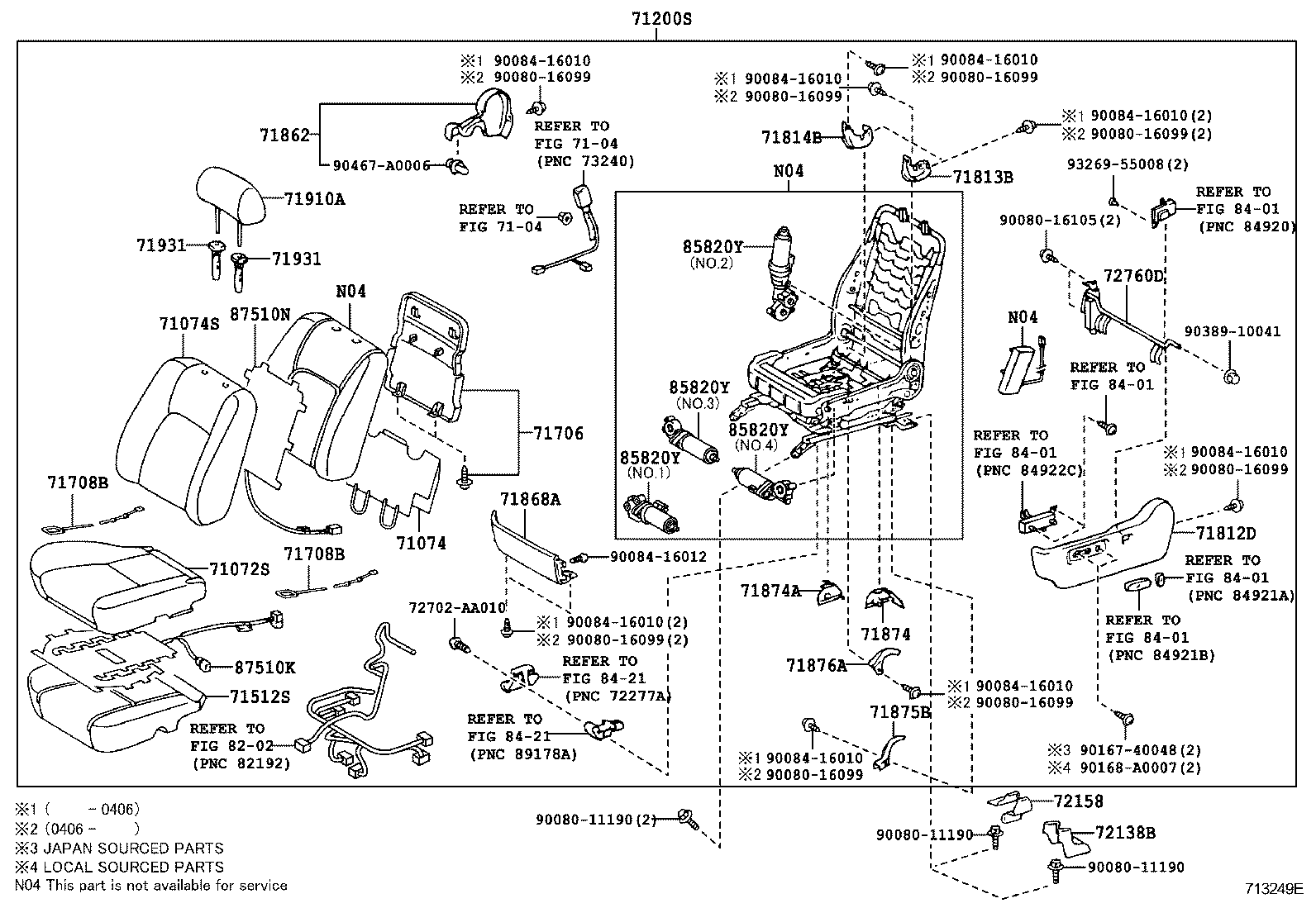

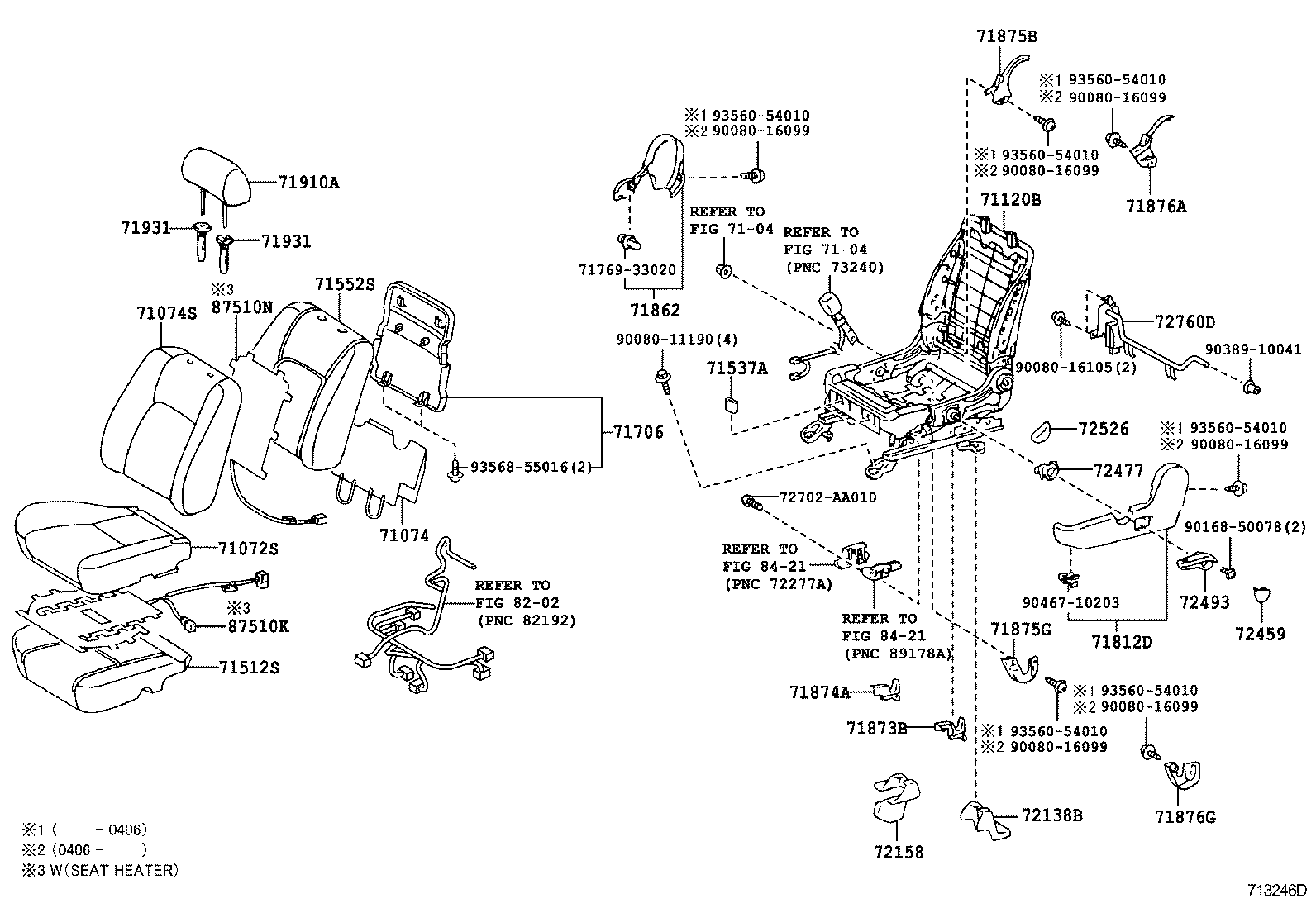

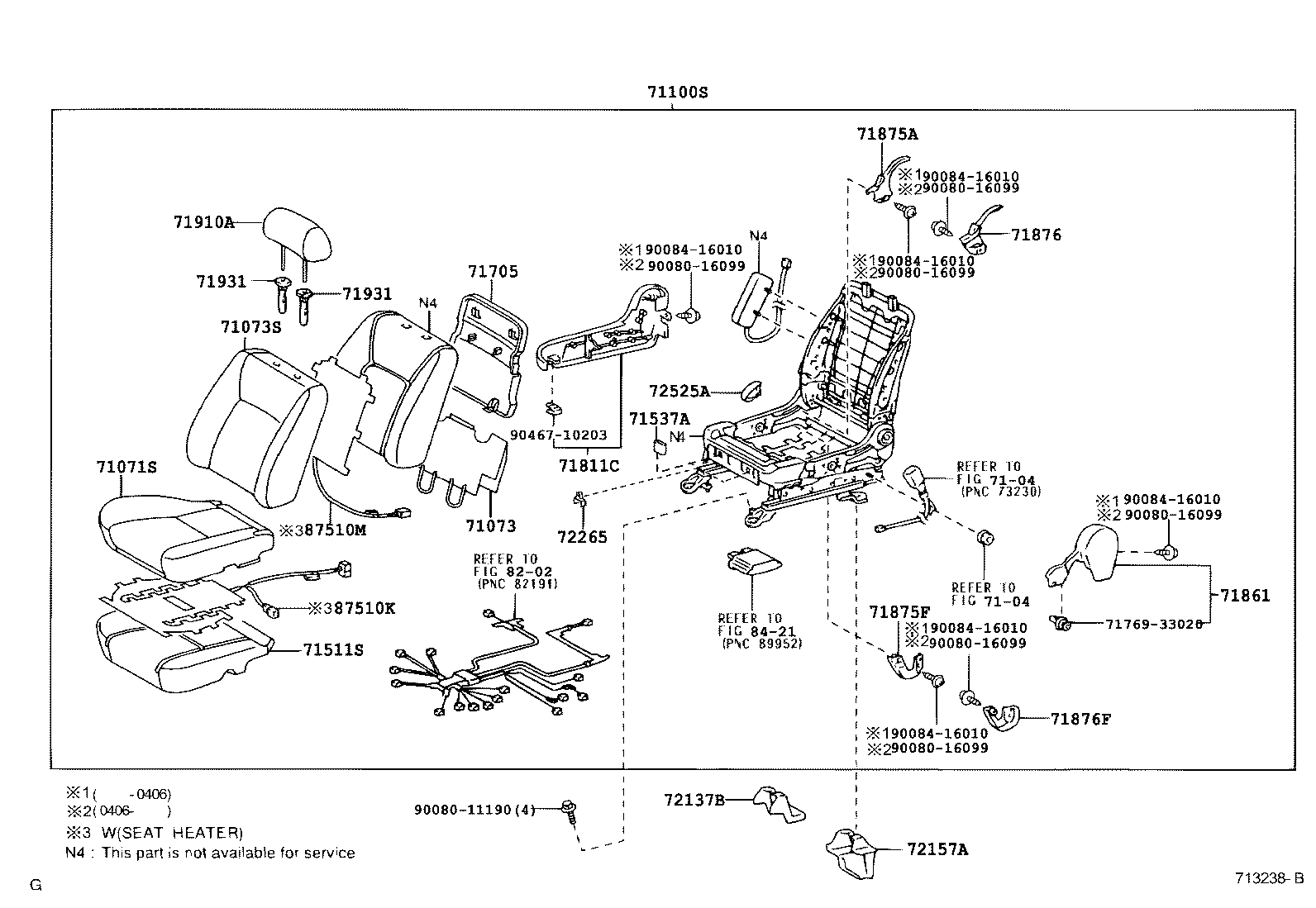

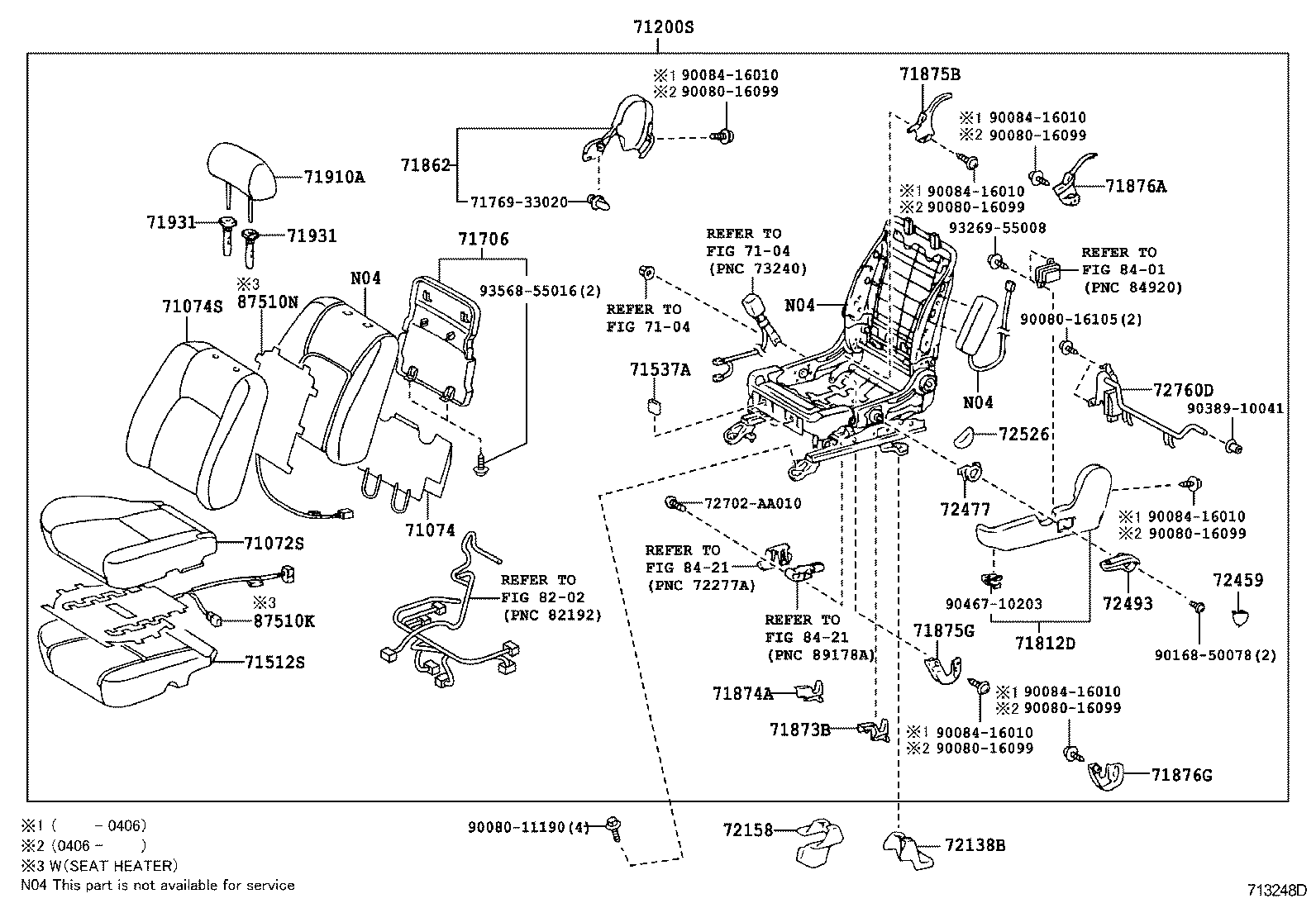

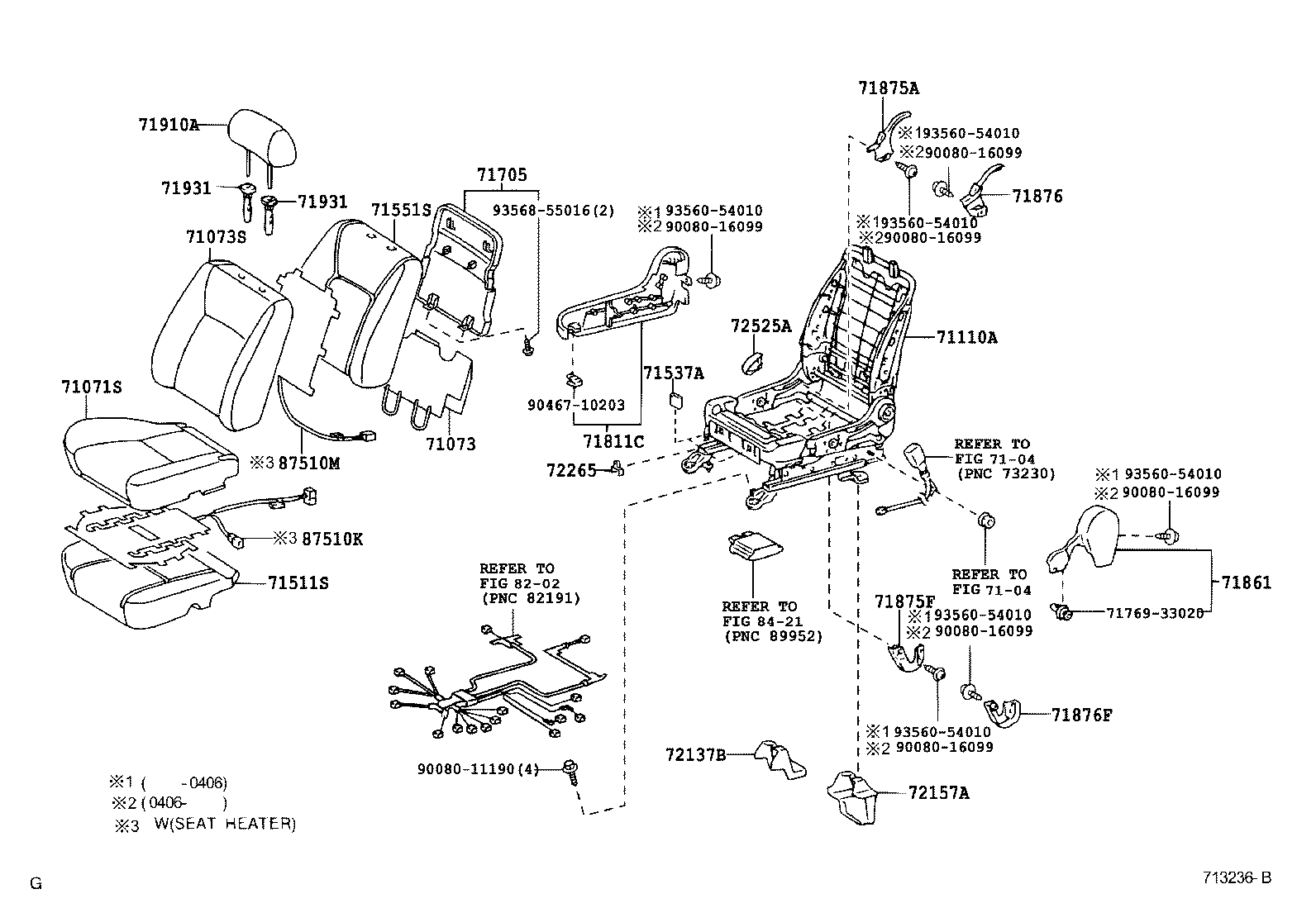

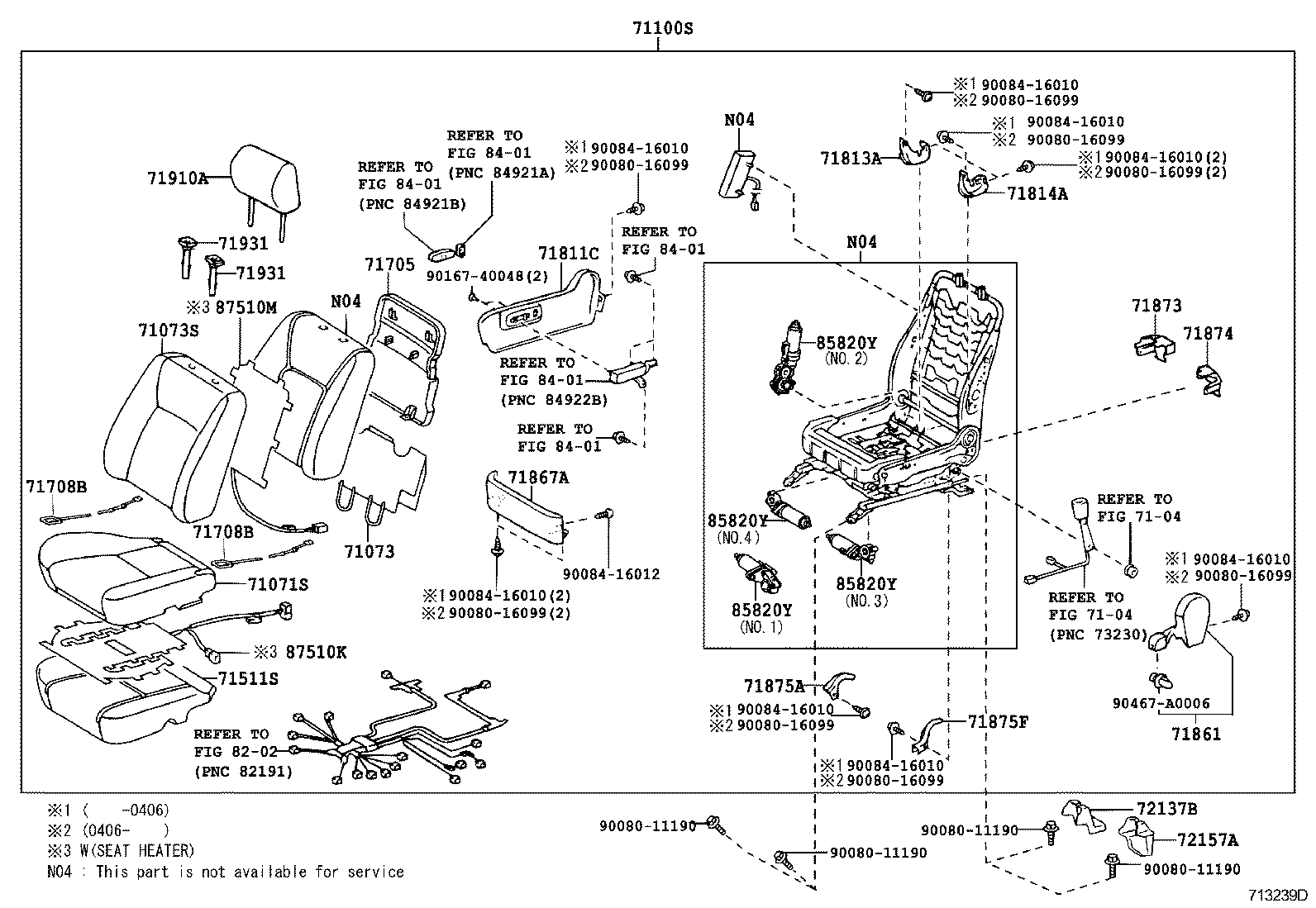

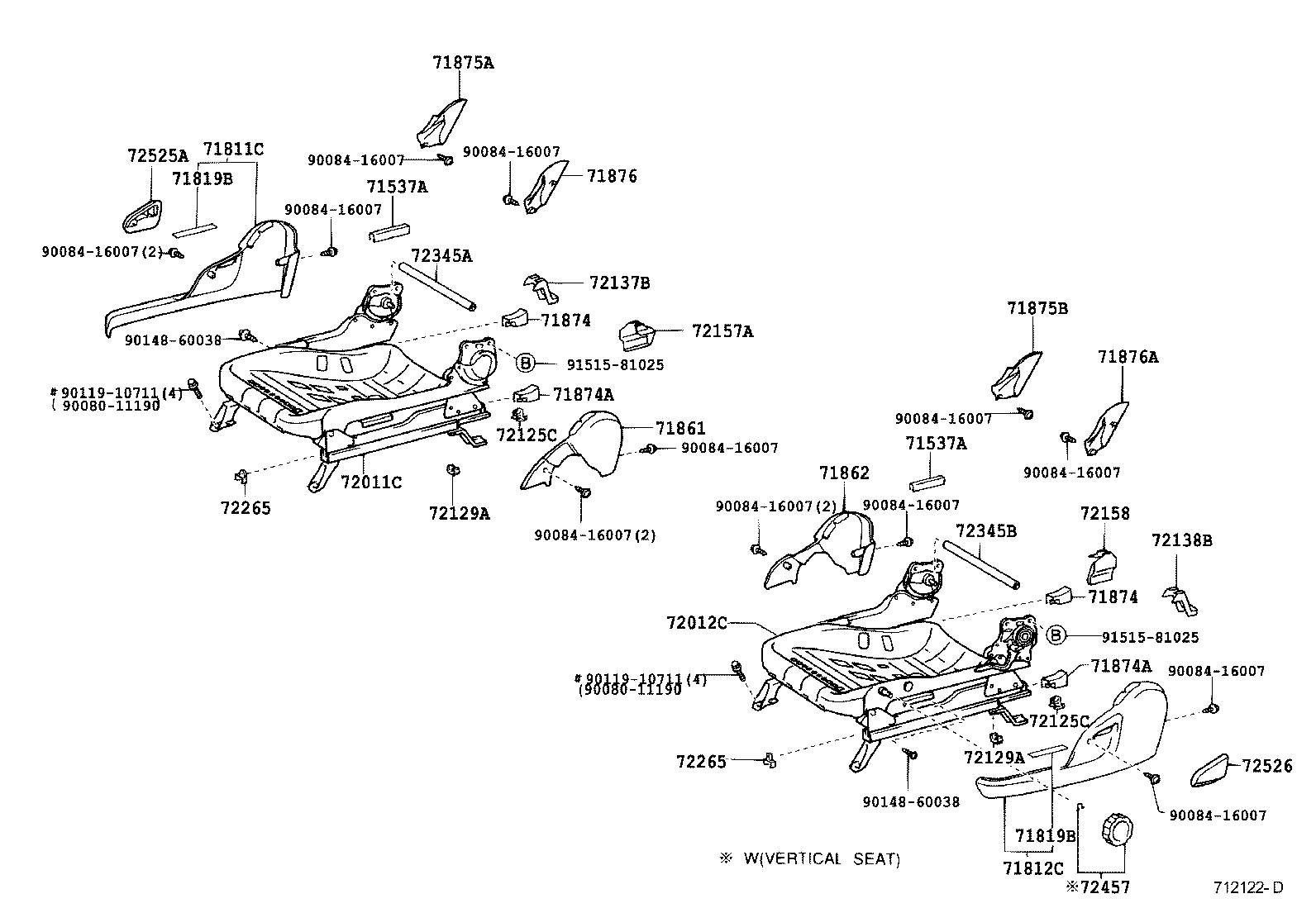

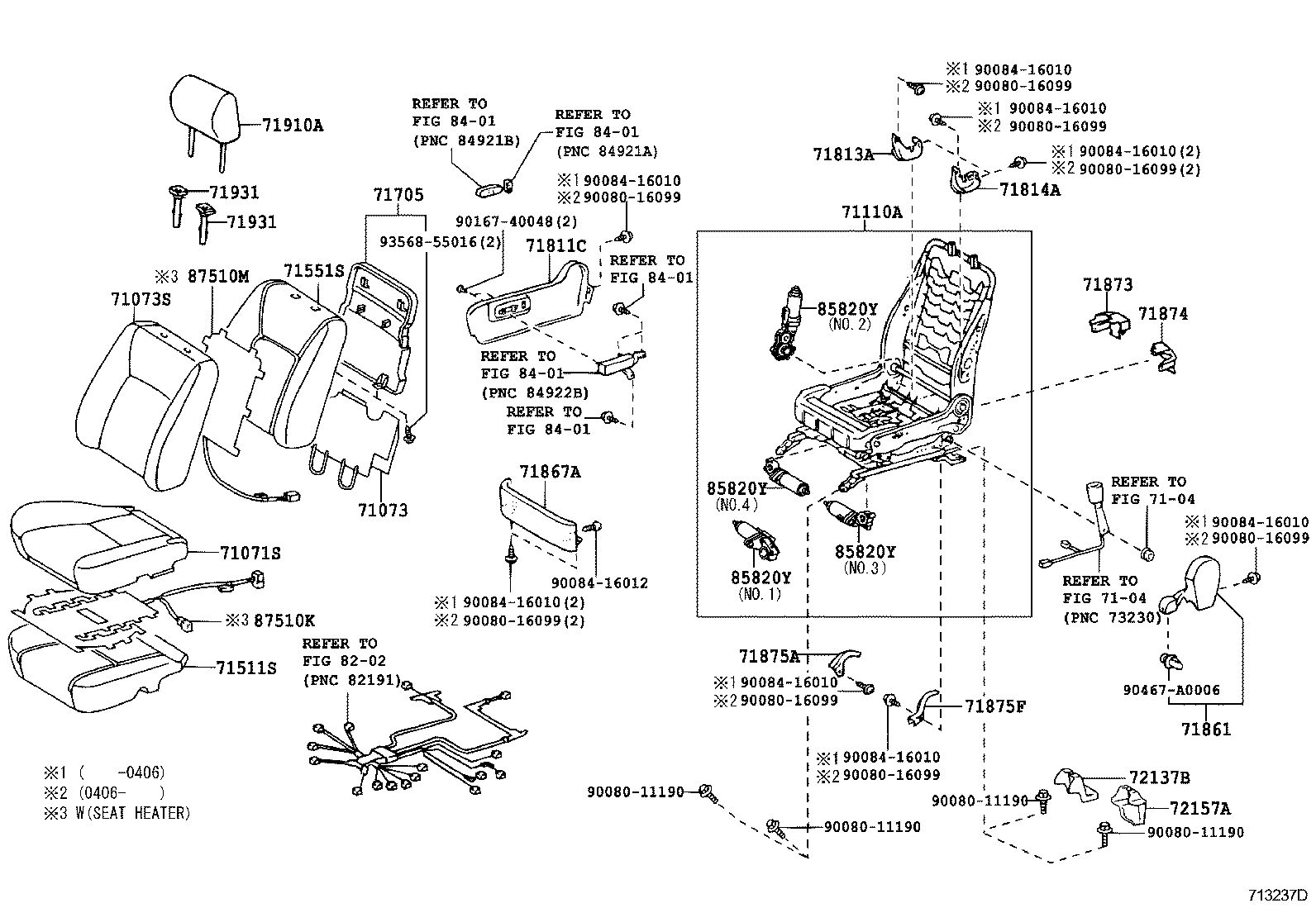

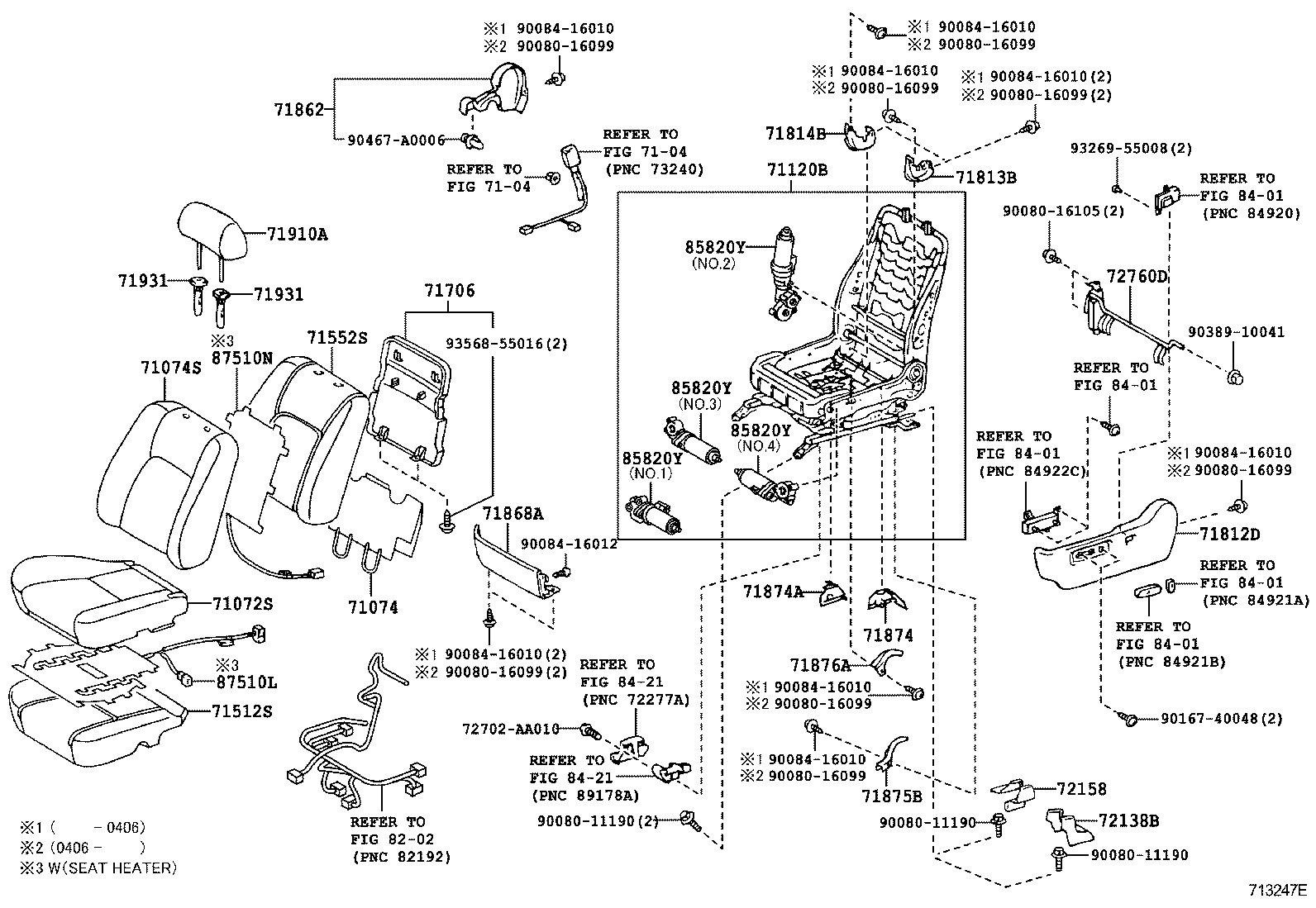

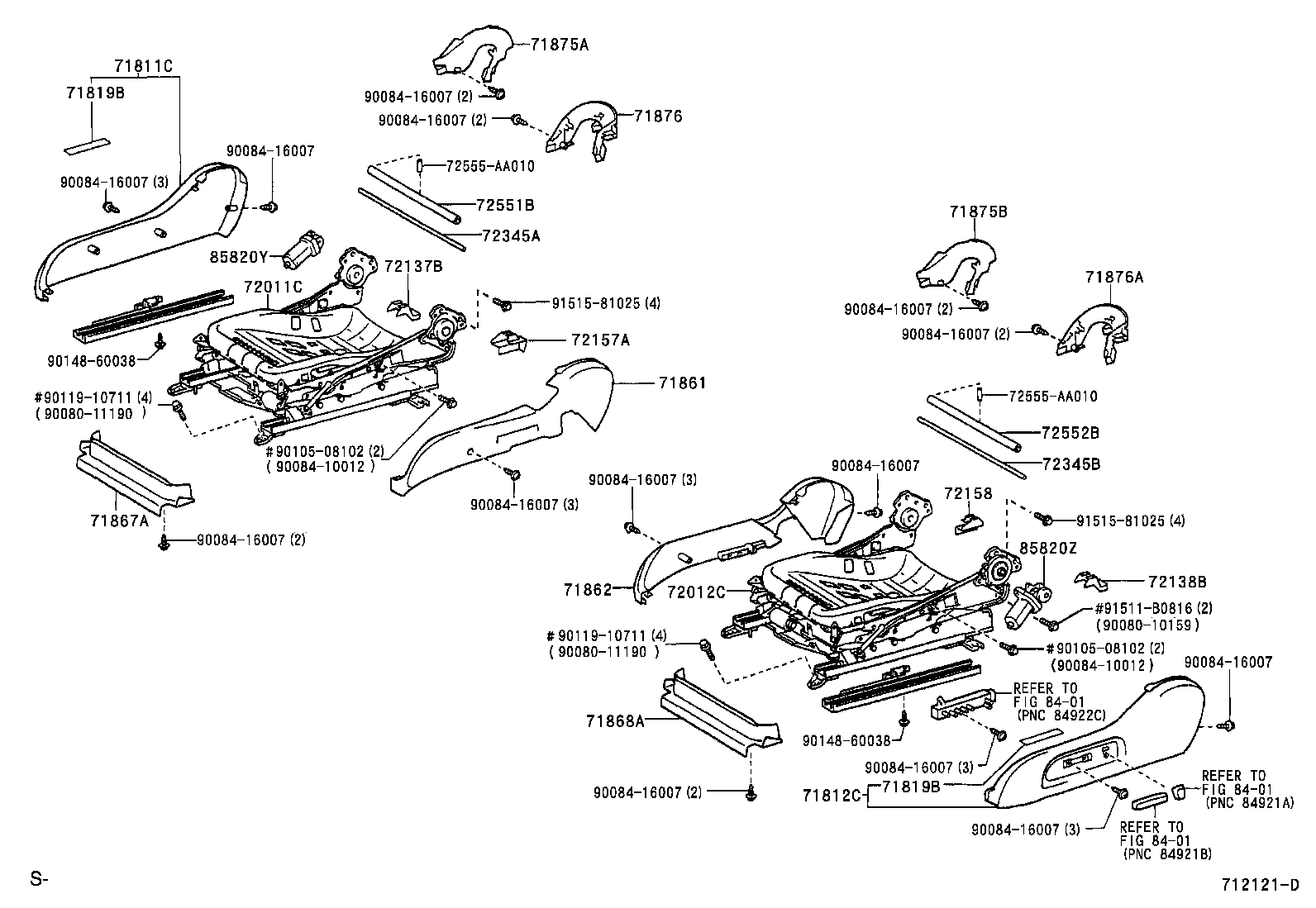

Figure 712120I 712120I 2001-07 → 2003-09 Figure 712122D 712122D 2001-07 → 2003-09 Figure 712121D 712121D 2001-07 → 2003-09 Figure 713246D 713246D 2003-09 → — Figure 713247E 713247E 2003-09 → — Figure 713248D 713248D 2003-09 → — Figure 713249E 713249E 2003-09 → — Figure 713236B 713236B 2003-09 → — Figure 713237D 713237D 2003-09 → — Figure 713238B 713238B 2003-09 → — Figure 713239D 713239D 2003-09 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073 Kick Plate, Front Seatback, RH
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074 Kick Plate, Front Seatback, LH
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71708B Strap Sub-assy, Seat Cover
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71813A Shield, Front Seatback, RH
71813B Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71814B Shield, Front Seatback, LH
71819B Label, Side Airbag Name
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011C Adjuster Sub-assy, Front Seat, RH
72012C Adjuster Sub-assy, Front Seat, LH
72125C Cover, Seat Track Lock Plate, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72265 Cover, Seat Track Upper Rail, RH
72345A Pipe, Reclining Connecting
72345B Pipe, Reclining Connecting
72457 Knob, Vertical Seat Adjuster
72459 Cap, Vertical Seat Adjuster Knob
72477 Spacer, Vertical Adjuster
72493 Handle, Vertical Adjusting, NO.2
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72592 Knob, Reclining Adjuster
72760D Adjuster Assy, Lumbar Support, LH
85820Y Motor Assy, Power Seat
85820Z Motor Assy, Power Seat
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
89953A Sensor, Belt Warning Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
