Toyota Camry (NAP)
2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States
Discontinued model
Data version 2006-08

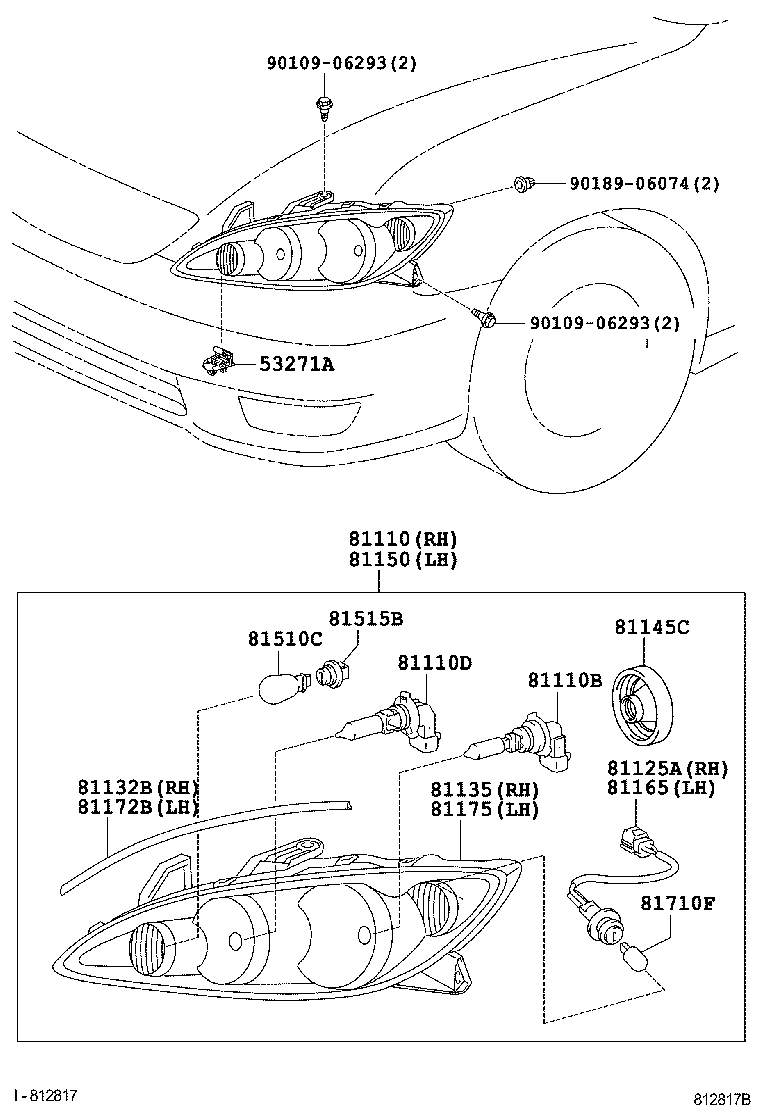

Headlamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53271A | Bracket, Headlamp Mounting |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81125A | Cord, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81145C | Cover, Headlamp Socket, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81165 | Cord, Headlamp, LH |
| 81172B | Gasket, Headlamp Lens |
| 81175 | Unit Assy, Headlamp, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
