Toyota Camry (NAP)
2001-07 → 2006-02 · chassis ACV30,MCV3# · catalogue 283470 · United States
Discontinued model
Data version 2006-08
Overdrive & Electronic Controlled Transmission
5 part groups · 4 illustrations
Part groups

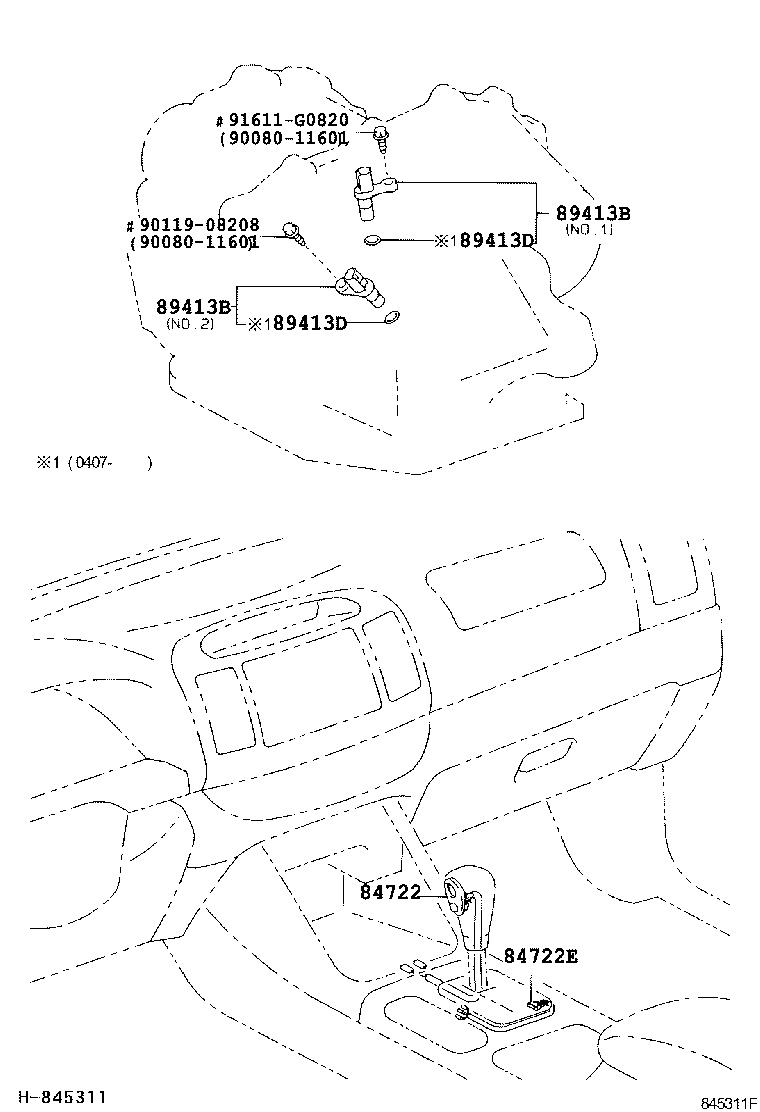

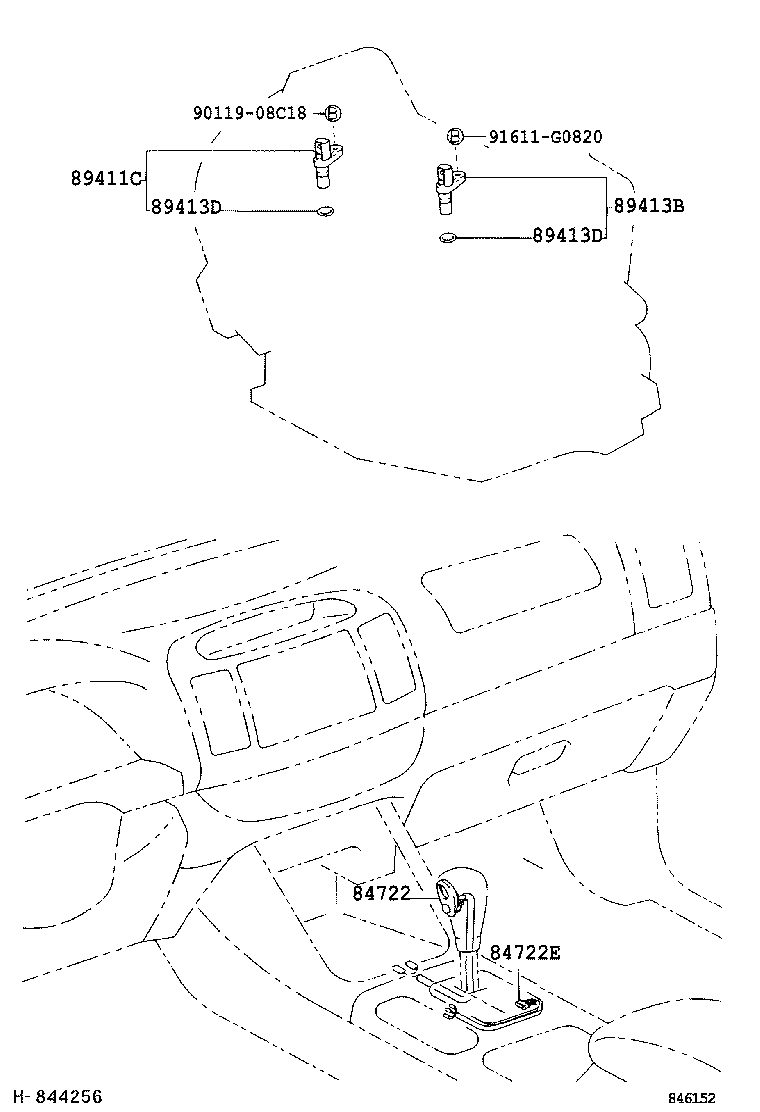

| PNC | Description |
|---|---|
| 84722 | Switch, Transmission Control |
| 84722E | Switch, Transmission Control |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
