Toyota Camry (NAP)

2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

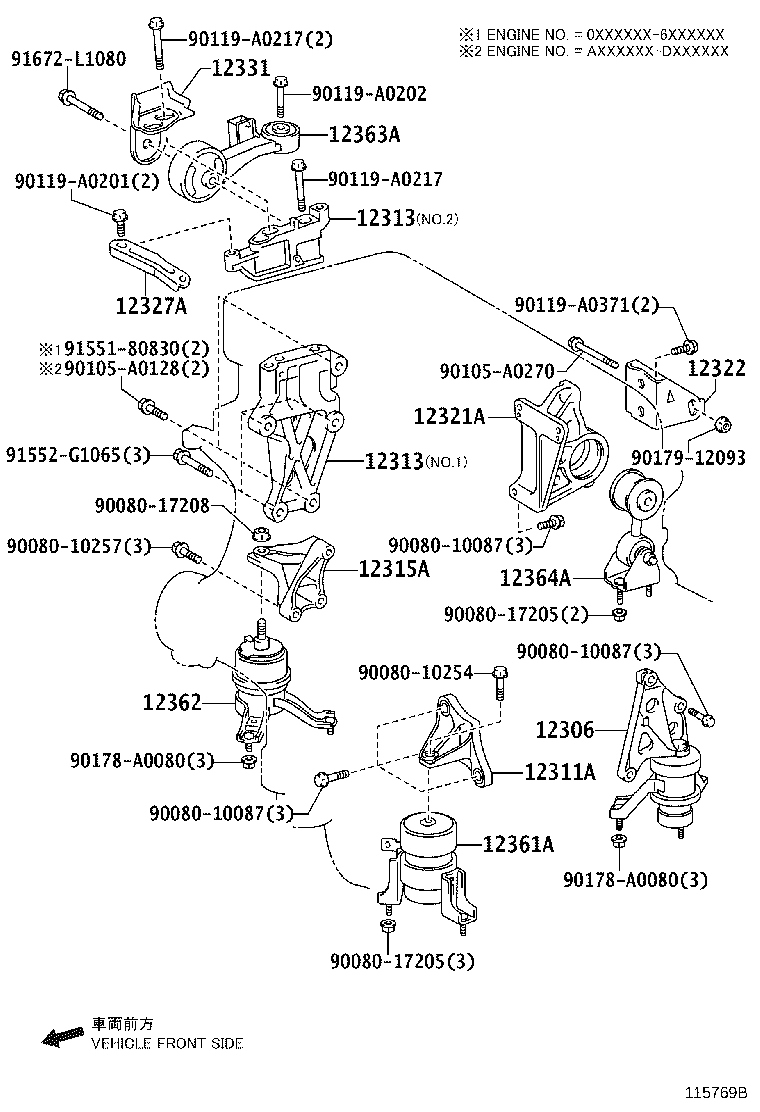

Exploded illustration 115769B 9008010087 — not listed in this catalogue 9008017205 — not listed in this catalogue 90119A0371 — not listed in this catalogue 9017912093 — not listed in this catalogue 12321A — BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) (2 parts) 12364A — ROD, ENGINE LATERAL CONTROL (2 parts) 12322 — BRACKET, ENGINE MOUNTING, REAR NO.2 (2 parts) 90105A0270 — not listed in this catalogue 12311A — BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (5 parts) 12313 — BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) (8 parts) 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (6 parts) 12327A — STAY, ENGINE MOUNTING, NO.2 RH (6 parts) 12331 — STAY, ENGINE MOUNTING, NO.3 RH (3 parts) 12361A — INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (2 parts) 12362 — INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (4 parts) 12363A — ROD, ENGINE MOVING CONTROL (6 parts) 12306 — INSULATOR SUB-ASSY, ENGINE MOUNTING, LH (1 parts) 9008010254 — not listed in this catalogue 9008010257 — not listed in this catalogue 9008017205 — not listed in this catalogue 90178A0080 — not listed in this catalogue 90178A0080 — not listed in this catalogue 9008010087 — not listed in this catalogue 9008017208 — not listed in this catalogue 90119A0201 — not listed in this catalogue 90119A0202 — not listed in this catalogue 90119A0217 — not listed in this catalogue 90119A0217 — not listed in this catalogue 91672L1080 — not listed in this catalogue 9008010087 — not listed in this catalogue 90105A0128 — not listed in this catalogue 9155180830 — not listed in this catalogue 91552G1065 — not listed in this catalogue 12313 — BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) (8 parts)
115769B · 13 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
12306 — Insulator Sub-assy, Engine Mounting, LH
12306-36010 Insulator Sub-assy, Engine Mounting, LH
2009-04 → 2011-09 ended
2ARFE ASV40 NAP 6F —
12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311-0H100 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
12311-0P020 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
12311-0P020 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
12311-36030 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP 6FC —
12311-36040 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-04 → 2011-09 ended
2ARFE ASV40 NAP 6F —
12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12313-0P060 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2008-06 → 2009-03 ended
2GRFE GSV40 NAP —
12313-31010 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2006-02 → 2008-05 ended
2GRFE GSV40 NAP —
12313-0P060 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
12313-0V030 note Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
12313-0V040 note Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2009-08 ended
2ARFE ASV40 NAP —
12313-0V040 note Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-08 → 2011-09 ended
2ARFE ASV40 NAP —
12313-36010 note Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-08 → 2011-09 ended
2ARFE ASV40 NAP —
12313-36010 note Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-0H080 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
12315-0P020 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
12315-0P020 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2010-03 ended
2GRFE GSV40 NAP —
12315-0P020 note Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2010-03 → 2011-09 ended
2GRFE GSV40 NAP —
12315-31100 note Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2010-03 → 2011-09 ended
2GRFE GSV40 NAP —
12319-0V020 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321-28020 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP 5F —
12321-36020 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2009-04 → 2011-09 ended
2ARFE ASV40 NAP 6F —
12322 — Bracket, Engine Mounting, Rear NO.2
12322-28050 Bracket, Engine Mounting, Rear NO.2
2006-02 → 2009-03 ended
2AZFE ACV40 NAP 5F —
12322-36010 Bracket, Engine Mounting, Rear NO.2
2009-04 → 2011-09 ended
2ARFE ASV40 NAP 6F —
12327A — Stay, Engine Mounting, NO.2 RH
12327-0H010 Stay, Engine Mounting, NO.2 RH
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
12327-0P020 note Stay, Engine Mounting, NO.2 RH
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
12327-0P030 note Stay, Engine Mounting, NO.2 RH
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
12327-0P020 note Stay, Engine Mounting, NO.2 RH
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
12327-0P030 note Stay, Engine Mounting, NO.2 RH
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
12327-0V010 Stay, Engine Mounting, NO.2 RH
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
12331 — Stay, Engine Mounting, NO.3 RH
12331-0P020 Stay, Engine Mounting, NO.3 RH
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
12331-0P020 Stay, Engine Mounting, NO.3 RH
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
12331-0V030 Stay, Engine Mounting, NO.3 RH
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12361-0H100 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
12361-0H100 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12362-0H030 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
12362-0P050 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
12362-0P050 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
12362-0V010 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
12363A — Rod, Engine Moving Control
12309-0H060 Rod, Engine Moving Control
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
12363-0P010 Rod, Engine Moving Control
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
12363-0P010 Rod, Engine Moving Control
2009-03 → 2010-12 ended
2GRFE GSV40 NAP —
12363-0P011 Rod, Engine Moving Control
2011-01 → 2011-09 ended
2GRFE GSV40 NAP —
12363-0V030 Rod, Engine Moving Control
2009-03 → 2010-12 ended
2ARFE ASV40 NAP —
12363-0V031 Rod, Engine Moving Control
2011-01 → 2011-09 ended
2ARFE ASV40 NAP —
12364A — Rod, Engine Lateral Control
12308-0H030 Rod, Engine Lateral Control
2006-02 → 2009-03 ended
2AZFE ACV40 NAP 5F —
12308-0V010 Rod, Engine Lateral Control
2009-04 → 2011-09 ended
2ARFE ASV40 NAP 6F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
