Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

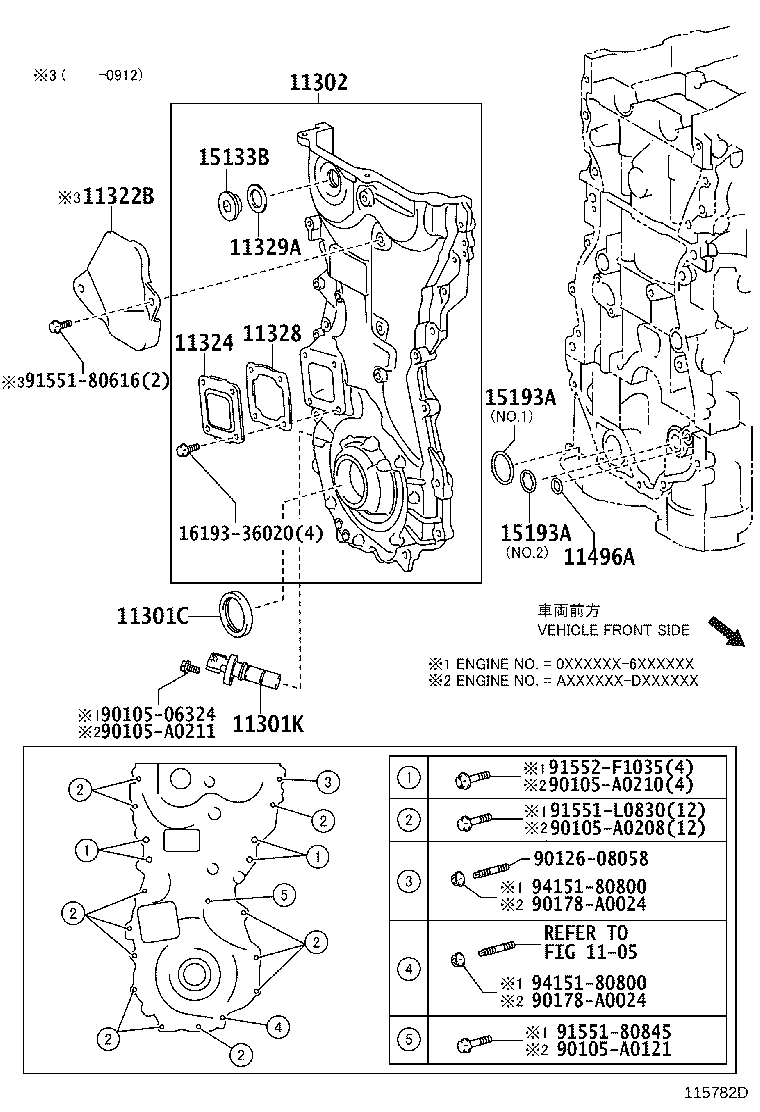

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-38089 note |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 90311-38098 note |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 90311-A0005 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 90311-42043 note |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 90311-A0005 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 90311-A0015 note |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11301K — Sensor, Crank Position | ||||
| 90080-19024 note |
Sensor, Crank Position
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 90919-05047 note |
Sensor, Crank Position
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 90919-05070 note |
Sensor, Crank Position
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 90919-A5004 note |
Sensor, Crank Position
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11310-0H011 note |
Cover Sub-assy, Timing Chain OR Belt
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 11310-0P040 |
Cover Sub-assy, Timing Chain OR Belt
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 11310-28071 note |
Cover Sub-assy, Timing Chain OR Belt
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 11310-0P040 |
Cover Sub-assy, Timing Chain OR Belt
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 11310-0V010 note |
Cover Sub-assy, Timing Chain OR Belt
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11310-36030 note |
Cover Sub-assy, Timing Chain OR Belt
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11322B — Cover, Timing Belt, NO.2 | ||||
| 11322-0V010 note |
Cover, Timing Belt, NO.2
2009-03 → 2009-12
ended
|
2ARFE ASV40 NAP | — | |
| 11322-36010 note |
Cover, Timing Belt, NO.2
2009-03 → 2009-12
ended
|
2ARFE ASV40 NAP | — | |
| 11324 — Plate, Timing Chain Cover | ||||
| 11324-0P010 |
Plate, Timing Chain Cover
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 11324-0P010 |
Plate, Timing Chain Cover
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 11324-0V010 note |
Plate, Timing Chain Cover
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11324-36010 note |
Plate, Timing Chain Cover
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11328 — Gasket, Timing Gear OR Chain Cover | ||||
| 11328-0P010 |
Gasket, Timing Gear OR Chain Cover
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 11328-0P010 |
Gasket, Timing Gear OR Chain Cover
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 11328-0V010 note |
Gasket, Timing Gear OR Chain Cover
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11328-36020 note |
Gasket, Timing Gear OR Chain Cover
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11329A — Gasket, Timing Belt OR Chain Cover, NO.2 | ||||
| 11329-36010 note |
Gasket, Timing Belt OR Chain Cover, NO.2
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 11496A — Gasket, Oil Hole Cover | ||||
| 11496-36010 note |
Gasket, Oil Hole Cover
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 15133B — Plug, Oil Pump Relief Valve | ||||
| 15133-36020 note |
Plug, Oil Pump Relief Valve
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 15193A — Gasket, Oil Pump | ||||
| 15193-36010 note |
Gasket, Oil Pump
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 15197-36010 note |
Gasket, Oil Pump
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
