Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

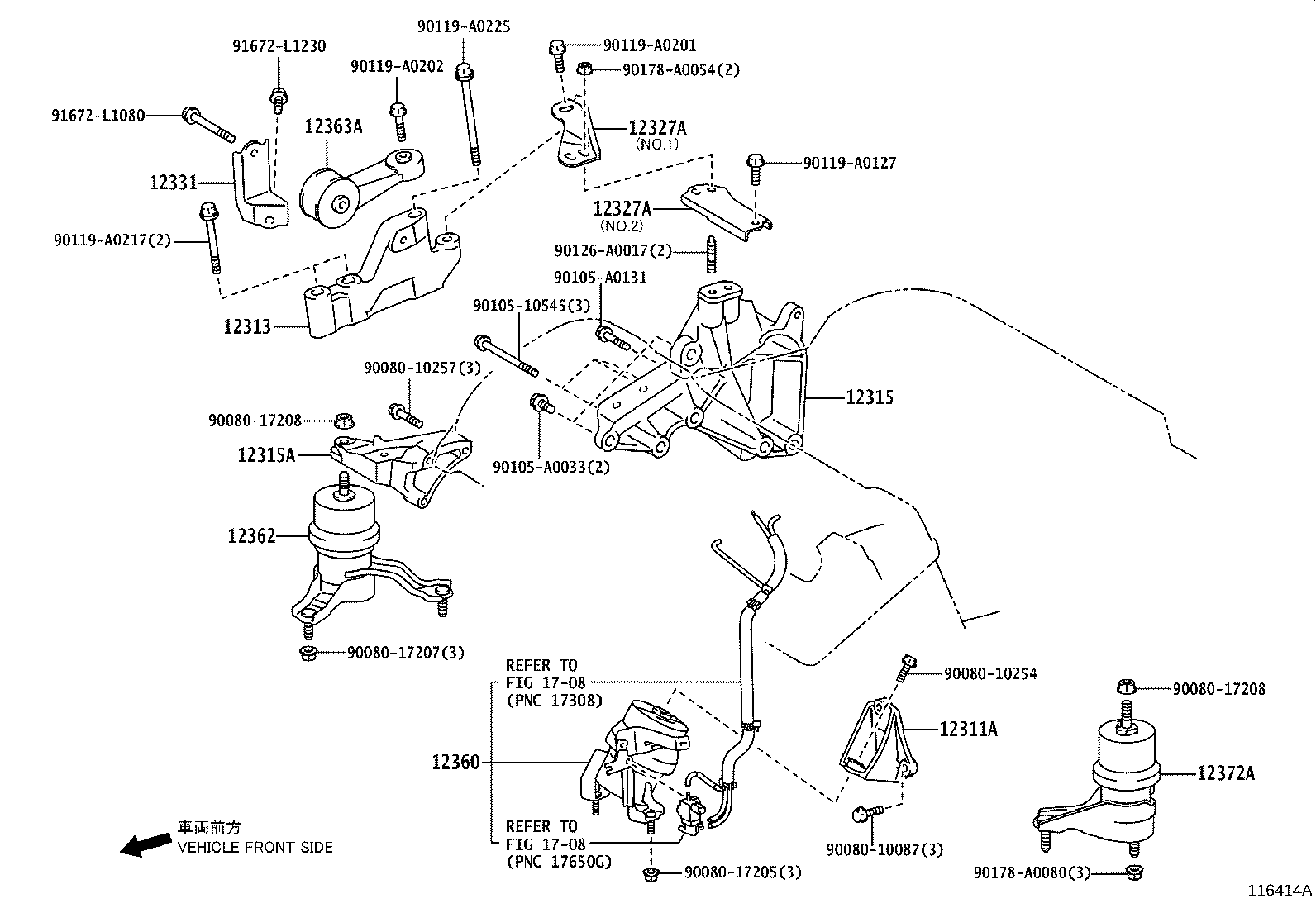

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12311-0H100 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 12311-0P020 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12311-0P020 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12311-36030 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP 6FC | — | |
| 12311-36040 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-04 → 2011-09
ended
|
2ARFE ASV40 NAP 6F | — | |
| 12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) | ||||
| 12313-0P060 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2008-06 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12313-31010 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2006-02 → 2008-05
ended
|
2GRFE GSV40 NAP | — | |
| 12313-0P060 |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12313-0V030 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12313-0V040 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2009-08
ended
|
2ARFE ASV40 NAP | — | |
| 12313-0V040 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-08 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12313-36010 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12313-36010 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2009-08 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12315 — Bracket, Engine Mounting, Front NO.1 LH | ||||
| 12315-0P031 |
Bracket, Engine Mounting, Front NO.1 LH
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12315-0P031 |
Bracket, Engine Mounting, Front NO.1 LH
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0H080 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 12315-0P020 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12315-0P020 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2010-03
ended
|
2GRFE GSV40 NAP | — | |
| 12315-0P020 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2010-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12315-31100 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2010-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12319-0V020 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12327A — Stay, Engine Mounting, NO.2 RH | ||||
| 12327-0H010 |
Stay, Engine Mounting, NO.2 RH
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 12327-0P020 note |
Stay, Engine Mounting, NO.2 RH
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12327-0P030 note |
Stay, Engine Mounting, NO.2 RH
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12327-0P020 note |
Stay, Engine Mounting, NO.2 RH
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12327-0P030 note |
Stay, Engine Mounting, NO.2 RH
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12327-0V010 |
Stay, Engine Mounting, NO.2 RH
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12331 — Stay, Engine Mounting, NO.3 RH | ||||
| 12331-0P020 |
Stay, Engine Mounting, NO.3 RH
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12331-0P020 |
Stay, Engine Mounting, NO.3 RH
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12331-0V030 |
Stay, Engine Mounting, NO.3 RH
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12360 — Insulator Assy, Engine Mounting, Front | ||||
| 12360-0P030 |
Insulator Assy, Engine Mounting, Front
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12360-0P030 |
Insulator Assy, Engine Mounting, Front
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-0H030 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 12362-0P050 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12362-0P050 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12362-0V010 |
Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12363A — Rod, Engine Moving Control | ||||
| 12309-0H060 |
Rod, Engine Moving Control
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP | — | |
| 12363-0P010 |
Rod, Engine Moving Control
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12363-0P010 |
Rod, Engine Moving Control
2009-03 → 2010-12
ended
|
2GRFE GSV40 NAP | — | |
| 12363-0P011 |
Rod, Engine Moving Control
2011-01 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
| 12363-0V030 |
Rod, Engine Moving Control
2009-03 → 2010-12
ended
|
2ARFE ASV40 NAP | — | |
| 12363-0V031 |
Rod, Engine Moving Control
2011-01 → 2011-09
ended
|
2ARFE ASV40 NAP | — | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12306-0H010 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP 5F | — | |
| 12372-0H090 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2AZFE ACV40 NAP 5FC | — | |
| 12372-0P010 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-02 → 2009-03
ended
|
2GRFE GSV40 NAP | — | |
| 12372-0H090 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2ARFE ASV40 NAP 6FC | — | |
| 12372-0P010 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-03 → 2011-09
ended
|
2GRFE GSV40 NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
