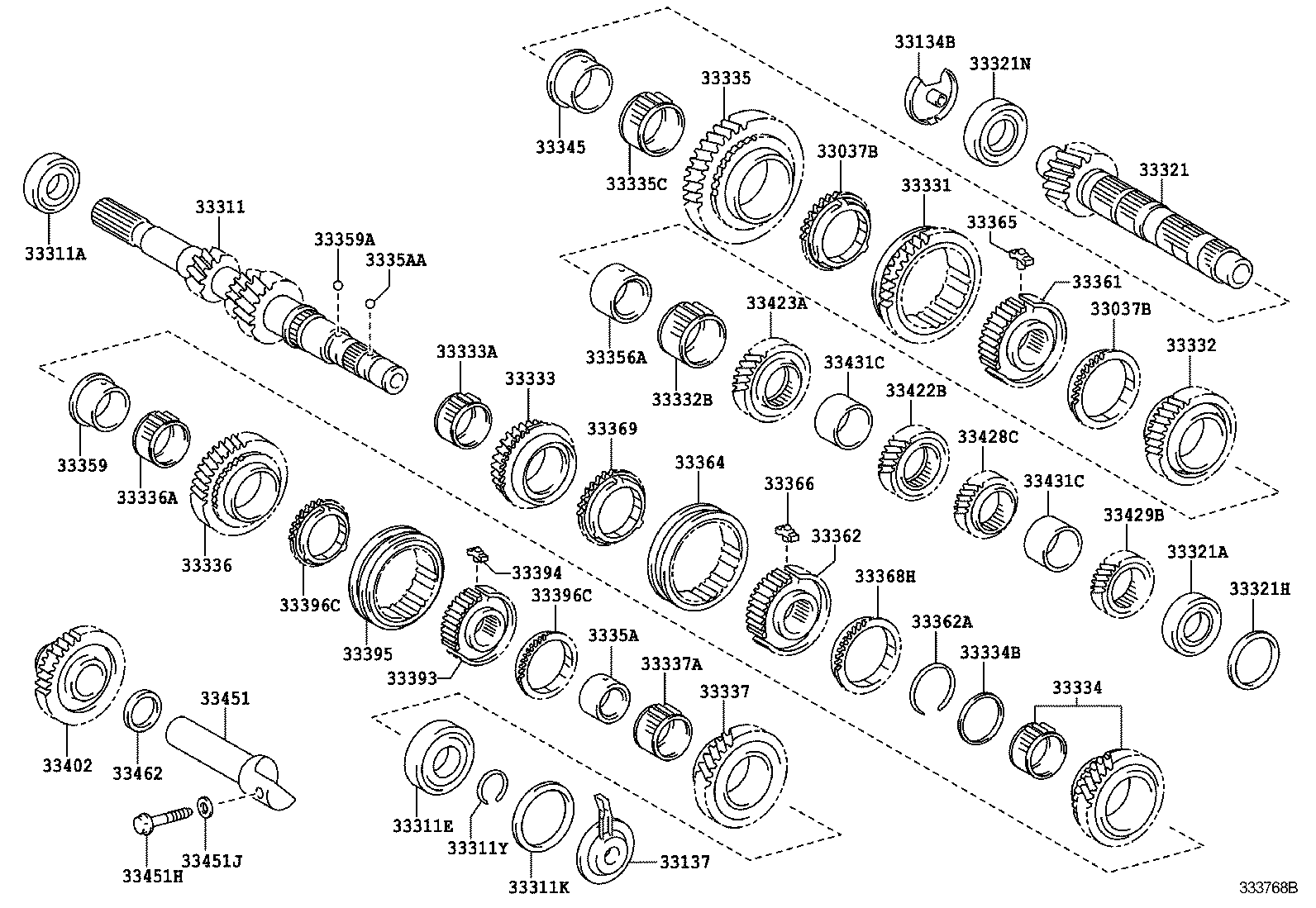

Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33037B — Ring Set, Synchronizer, NO.1 | ||||
| 33037-28010 |
Ring Set, Synchronizer, NO.1
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33037-20110 |
Ring Set, Synchronizer, NO.1
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33134B — Cover, Output Shaft(MTM) | ||||
| 33134-20010 |
Cover, Output Shaft(MTM)
2006-02 → 2008-05
ended
|
ACV40 NAP 5F | — | |
| 33134-20011 |
Cover, Output Shaft(MTM)
2008-05 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33134-20030 |
Cover, Output Shaft(MTM)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33137 — Cover, Input Shaft(MTM) | ||||
| 33137-20010 |
Cover, Input Shaft(MTM)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33311 — Shaft, Input | ||||
| 33311-20221 |
Shaft, Input
2006-02 → 2008-06
ended
|
ACV40 NAP 5F | — | |
| 33311-33070 |
Shaft, Input
2008-06 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33311-20270 |
Shaft, Input
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33311A — Bearing (FOR INPUT SHAFT FRONT) | ||||
| 90365-30023 |
Bearing (FOR INPUT SHAFT FRONT)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90363-27002 |
Bearing (FOR INPUT SHAFT FRONT)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33311E — Bearing, Radial Ball (FOR INPUT SHAFT REAR) | ||||
| 90363-33007 |
Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90363-35068 |
Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33311K — Shim (FOR INPUT SHAFT REAR BEARING) | ||||
| 90564-61063 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61064 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61065 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61066 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61067 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61068 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61069 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61070 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61071 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61072 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61073 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61074 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61075 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61076 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-61113 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61114 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61115 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61116 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61117 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61118 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61119 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61120 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61121 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61122 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61123 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61124 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61125 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-61126 note |
Shim (FOR INPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33311Y — Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-76003 |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-33037 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33038 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33039 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33040 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33041 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33042 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33043 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33044 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33045 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33046 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-33047 note |
Ring, Shaft Snap (FOR INPUT SHAFT REAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33321 — Shaft, Output | ||||
| 33302-20030 |
Shaft, Output
2006-02 → 2008-05
ended
|
ACV40 NAP 5F | — | |
| 33302-20031 |
Shaft, Output
2008-05 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33321-20290 |
Shaft, Output
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33321A — Bearing (FOR OUTPUT SHAFT REAR) | ||||
| 90366-28002 |
Bearing (FOR OUTPUT SHAFT REAR)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90366-28013 |
Bearing (FOR OUTPUT SHAFT REAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33321H — Shim (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-59001 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59002 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59003 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59004 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59005 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59006 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59007 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59008 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59009 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59010 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59011 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59012 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59013 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59014 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59015 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59016 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59017 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59018 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59019 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59020 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59021 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59022 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59023 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59024 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-59025 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90564-52041 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52042 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52043 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52044 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52045 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52046 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52047 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52048 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52049 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52050 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52051 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52052 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52053 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52054 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52055 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52056 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52057 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52058 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52059 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52060 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52061 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52062 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52063 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52064 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52065 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2009-04 → 2010-11
ended
|
ASV40 NAP 6F | — | |
| 90564-52066 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52067 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52068 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52069 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52070 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52071 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52072 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52073 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52074 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52075 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52076 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52077 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52078 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52079 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52080 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52081 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52082 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52083 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52084 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52085 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52086 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52087 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52088 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52089 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90564-52090 note |
Shim (FOR OUTPUT SHAFT REAR BEARING)
2010-11 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33321N — Bearing (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-32025 |
Bearing (FOR OUTPUT SHAFT FRONT)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90366-36013 |
Bearing (FOR OUTPUT SHAFT FRONT)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33331 — Gear, Reverse | ||||
| 33331-21010 |
Gear, Reverse
2007-07 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33331-28021 |
Gear, Reverse
2006-02 → 2007-07
ended
|
ACV40 NAP 5F | — | |
| 33331-20100 |
Gear, Reverse
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33332 — Gear, 2ND | ||||
| 33332-33060 |
Gear, 2ND
2008-06 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33332-42020 |
Gear, 2ND
2006-02 → 2008-06
ended
|
ACV40 NAP 5F | — | |
| 33332-20180 |
Gear, 2ND
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33332B — Bearing, Needle Roller (FOR 2ND GEAR) | ||||
| 90364-44001 |
Bearing, Needle Roller (FOR 2ND GEAR)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90364-51002 |
Bearing, Needle Roller (FOR 2ND GEAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33333 — Gear, 3RD | ||||
| 33034-33030 |
Gear, 3RD
2008-06 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33034-42020 |
Gear, 3RD
2006-02 → 2008-06
ended
|
ACV40 NAP 5F | — | |
| 33034-20140 |
Gear, 3RD
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33333A — Bearing, Needle Roller (FOR 3RD GEAR) | ||||
| 90364-36011 |
Bearing, Needle Roller (FOR 3RD GEAR)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90364-41004 |
Bearing, Needle Roller (FOR 3RD GEAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33334 — Gear, 4TH | ||||
| 33035-42020 |
Gear, 4TH
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33025-33010 |
Gear, 4TH
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33334B — Spacer (FOR 4TH GEAR BEARING) | ||||
| 90560-36002 |
Spacer (FOR 4TH GEAR BEARING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90560-41005 |
Spacer (FOR 4TH GEAR BEARING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33335 — Gear, 1ST | ||||
| 33335-20130 |
Gear, 1ST
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33335-20180 |
Gear, 1ST
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33335C — Bearing, Needle Roller(FOR 1ST GEAR) | ||||
| 90364-45007 |
Bearing, Needle Roller(FOR 1ST GEAR)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90364-51003 |
Bearing, Needle Roller(FOR 1ST GEAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33336 — Gear, 5TH | ||||
| 33336-42020 |
Gear, 5TH
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33336-33040 |
Gear, 5TH
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33336A — Bearing, Needle Roller (FOR 5TH GEAR) | ||||
| 90364-28023 |
Bearing, Needle Roller (FOR 5TH GEAR)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90364-45016 |
Bearing, Needle Roller (FOR 5TH GEAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33337 — Gear Sub-assy, 6TH | ||||
| 33337-33010 |
Gear Sub-assy, 6TH
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33337A — Bearing, Needle Roller (FOR 6TH GEAR) | ||||
| 90364-42006 |
Bearing, Needle Roller (FOR 6TH GEAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33345 — Bush, 1ST Gear | ||||
| 33345-20040 |
Bush, 1ST Gear
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33356A — Race, 2ND Gear Bearing Inner | ||||
| 33356-20060 |
Race, 2ND Gear Bearing Inner
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33359 — Race, 5TH Gear Bearing Inner | ||||
| 33359-20020 |
Race, 5TH Gear Bearing Inner
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33359A — Ball, 5TH Gear Bearing Inner Race Lock | ||||
| 90360-05012 |
Ball, 5TH Gear Bearing Inner Race Lock
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 3335A — Race, 6TH Gear Bearing, Inner(MTM) | ||||
| 3335A-20020 |
Race, 6TH Gear Bearing, Inner(MTM)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 3335AA — Ball, 6TH Gear Bearing, Inner Race Rock(MTM) | ||||
| 90360-05012 |
Ball, 6TH Gear Bearing, Inner Race Rock(MTM)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33361 — Hub, Transmission Clutch, NO.1 | ||||
| 33361-42010 |
Hub, Transmission Clutch, NO.1
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33361-20080 |
Hub, Transmission Clutch, NO.1
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33362 — Hub, Transmission Clutch, NO.2 | ||||
| 33362-42012 |
Hub, Transmission Clutch, NO.2
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33362-20050 |
Hub, Transmission Clutch, NO.2
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33362A — Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-34003 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-34004 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-34005 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-34006 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-34007 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-34008 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-34009 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90520-39055 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-39056 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-39057 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-39058 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-39059 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 90520-39060 note |
Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33364 — Sleeve, Transmission Hub, NO.2 | ||||
| 33364-42010 |
Sleeve, Transmission Hub, NO.2
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33364-20080 |
Sleeve, Transmission Hub, NO.2
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33365 — Key, Synchromesh Shifting, NO.1 | ||||
| 33365-12040 |
Key, Synchromesh Shifting, NO.1
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33365-20070 |
Key, Synchromesh Shifting, NO.1
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33366 — Key, Synchromesh Shifting, NO.2 | ||||
| 33366-42010 |
Key, Synchromesh Shifting, NO.2
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33365-20080 |
Key, Synchromesh Shifting, NO.2
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33368H — Ring, Synchronizer (FOR 4TH GEAR) | ||||
| 33381-20030 |
Ring, Synchronizer (FOR 4TH GEAR)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33369 — Ring, Synchronizer, NO.3 | ||||
| 33369-28011 |
Ring, Synchronizer, NO.3
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33369-20060 |
Ring, Synchronizer, NO.3
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33393 — Hub, Transmission Clutch, NO.3 | ||||
| 33393-42010 |
Hub, Transmission Clutch, NO.3
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33393-20050 |
Hub, Transmission Clutch, NO.3
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33394 — Key, Synchromesh Shifting, NO.3 | ||||
| 33365-20080 |
Key, Synchromesh Shifting, NO.3
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33395 — Sleeve, Transmission Hub, NO.3 | ||||
| 33395-42011 |
Sleeve, Transmission Hub, NO.3
2006-02 → 2007-06
ended
|
ACV40 NAP 5F | — | |
| 33395-42012 |
Sleeve, Transmission Hub, NO.3
2007-06 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33395-20070 |
Sleeve, Transmission Hub, NO.3
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33396C — Ring, Synchronizer, NO.5(MTM) | ||||
| 33396-20020 |
Ring, Synchronizer, NO.5(MTM)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33402 — Gear Sub-assy, Reverse Idler | ||||
| 33402-28020 |
Gear Sub-assy, Reverse Idler
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33402-20090 |
Gear Sub-assy, Reverse Idler
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33422B — Gear, 4TH Driven | ||||
| 33422-42020 |
Gear, 4TH Driven
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33422-33010 |
Gear, 4TH Driven
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33423A — Gear, 3RD Driven | ||||
| 33423-33020 |
Gear, 3RD Driven
2008-06 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33423-42020 |
Gear, 3RD Driven
2006-02 → 2008-06
ended
|
ACV40 NAP 5F | — | |
| 33423-20100 |
Gear, 3RD Driven
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33428C — Gear, 5TH Driven | ||||
| 33428-42020 |
Gear, 5TH Driven
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33428-33010 |
Gear, 5TH Driven
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33429B — Gear, 6TH Driven | ||||
| 33429-33010 |
Gear, 6TH Driven
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33431C — Spacer, Output Gear | ||||
| 33431-20080 |
Spacer, Output Gear
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33431-20100 |
Spacer, Output Gear
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33451 — Shaft, Reverse Idler Gear | ||||
| 33451-12032 |
Shaft, Reverse Idler Gear
2006-02 → 2008-08
ended
|
ACV40 NAP 5F | — | |
| 33451-20070 |
Shaft, Reverse Idler Gear
2008-08 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33451-20070 |
Shaft, Reverse Idler Gear
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33451H — Bolt (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90105-08150 |
Bolt (FOR REVERSE IDLER GEAR SHAFT)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90105-08150 |
Bolt (FOR REVERSE IDLER GEAR SHAFT)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33451J — Gasket (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
Gasket (FOR REVERSE IDLER GEAR SHAFT)
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 90430-08010 |
Gasket (FOR REVERSE IDLER GEAR SHAFT)
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 33462 — Washer, Reverse Idler Thrust | ||||
| 33462-20050 |
Washer, Reverse Idler Thrust
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 33462-20080 |
Washer, Reverse Idler Thrust
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
