Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

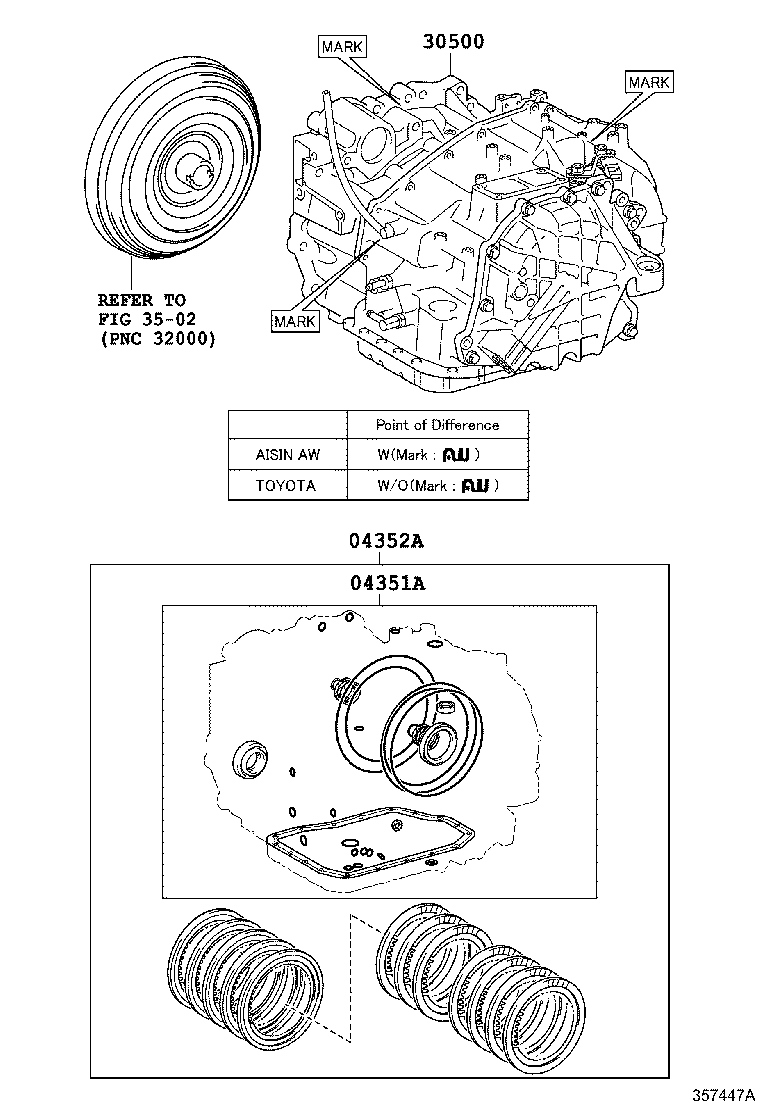

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04351A — Gasket Kit, Transaxle Overhaul(ATM) | ||||
| 04351-33400 |
Gasket Kit, Transaxle Overhaul(ATM)
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 04351-33450 note |
Gasket Kit, Transaxle Overhaul(ATM)
2007-03 → 2008-01
ended
|
ACV40 NAP 5FC | — | |
| 04351-33450 note |
Gasket Kit, Transaxle Overhaul(ATM)
2008-01 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 04351-33450 |
Gasket Kit, Transaxle Overhaul(ATM)
2006-02 → 2007-03
ended
|
ACV40 NAP 5FC | — | |
| 04351-33490 note |
Gasket Kit, Transaxle Overhaul(ATM)
2008-01 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 04351-33400 |
Gasket Kit, Transaxle Overhaul(ATM)
2009-03 → 2011-06
ended
|
GSV40 NAP | — | |
| 04351-33401 |
Gasket Kit, Transaxle Overhaul(ATM)
2011-06 → 2011-09
ended
|
GSV40 NAP | — | |
| 04351-33530 note |
Gasket Kit, Transaxle Overhaul(ATM)
2009-03 → 2011-06
ended
|
ASV40 NAP 6FC | — | |
| 04351-33531 note |
Gasket Kit, Transaxle Overhaul(ATM)
2011-06 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
| 04351-48180 note |
Gasket Kit, Transaxle Overhaul(ATM)
2009-03 → 2011-06
ended
|
ASV40 NAP 6FC | — | |
| 04351-48182 note |
Gasket Kit, Transaxle Overhaul(ATM)
2011-06 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
| 04352A — Kit, Transaxle Overhaul(ATM) | ||||
| 04352-33390 |
Kit, Transaxle Overhaul(ATM)
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 04352-33450 |
Kit, Transaxle Overhaul(ATM)
2006-02 → 2007-02
ended
|
ACV40 NAP 5FC | — | |
| 04352-33500 note |
Kit, Transaxle Overhaul(ATM)
2008-01 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 04352-33540 note |
Kit, Transaxle Overhaul(ATM)
2008-01 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 04352-33540 note |
Kit, Transaxle Overhaul(ATM)
2007-03 → 2008-01
ended
|
ACV40 NAP 5FC | — | |
| 04352-33390 |
Kit, Transaxle Overhaul(ATM)
2009-03 → 2011-06
ended
|
GSV40 NAP | — | |
| 04352-33391 |
Kit, Transaxle Overhaul(ATM)
2011-06 → 2011-09
ended
|
GSV40 NAP | — | |
| 04352-33560 note |
Kit, Transaxle Overhaul(ATM)
2009-03 → 2011-06
ended
|
ASV40 NAP 6FC | — | |
| 04352-33561 note |
Kit, Transaxle Overhaul(ATM)
2011-06 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
| 04352-48250 note |
Kit, Transaxle Overhaul(ATM)
2009-03 → 2011-06
ended
|
ASV40 NAP 6FC | — | |
| 04352-48252 note |
Kit, Transaxle Overhaul(ATM)
2011-06 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
| 30500 — Transaxle Assy, Automatic | ||||
| 30500-07020 note |
Transaxle Assy, Automatic
2007-09 → 2009-03
ended
|
GSV40 NAP | — | |
| 30500-33460 note |
Transaxle Assy, Automatic
2006-02 → 2006-09
ended
|
ACV40 NAP 5FC | — | |
| 30500-33470 note |
Transaxle Assy, Automatic
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 30500-33510 note |
Transaxle Assy, Automatic
2008-01 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 30500-33520 note |
Transaxle Assy, Automatic
2006-09 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 30500-07020 note |
Transaxle Assy, Automatic
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 30500-33470 note |
Transaxle Assy, Automatic
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 30500-33621 note |
Transaxle Assy, Automatic
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
| 30500-33631 note |
Transaxle Assy, Automatic
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
