Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

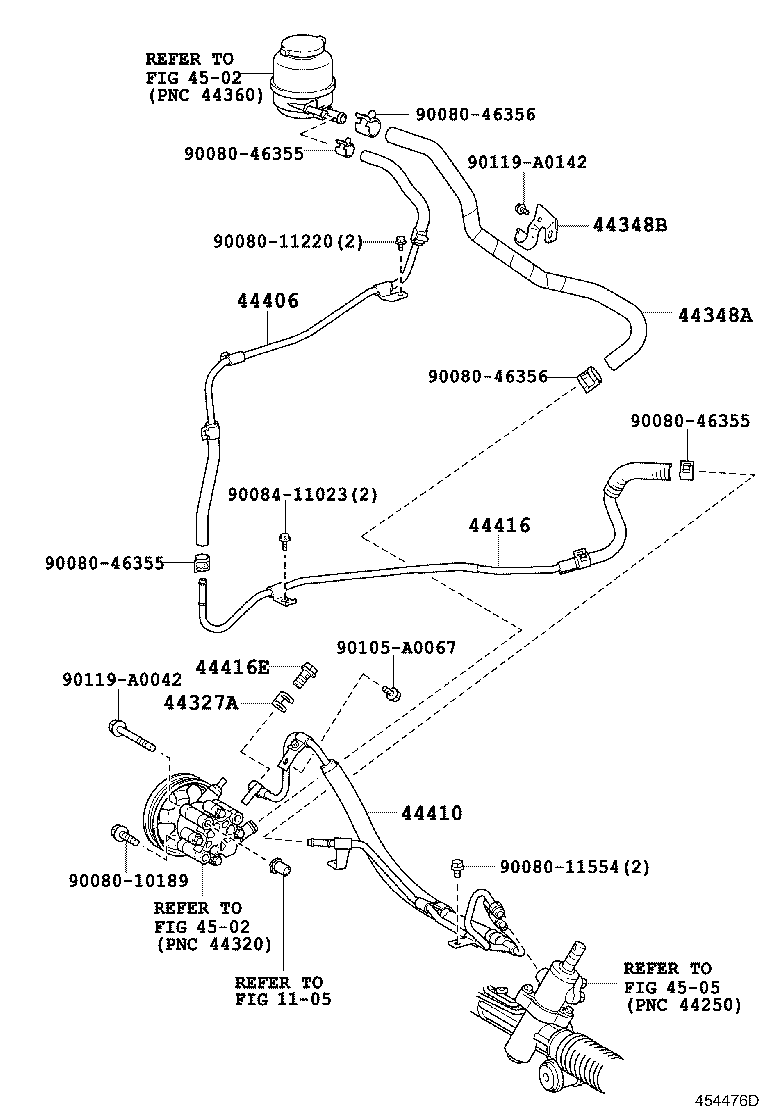

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44327A — Gasket, Pressure Port, NO.1 | ||||
| 44327-30030 |
Gasket, Pressure Port, NO.1
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 44327-30030 |
Gasket, Pressure Port, NO.1
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 44348A — Hose, Oil Reservoir TO Pump, NO.1 | ||||
| 44348-06260 |
Hose, Oil Reservoir TO Pump, NO.1
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 44348-06270 |
Hose, Oil Reservoir TO Pump, NO.1
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 44348-06260 |
Hose, Oil Reservoir TO Pump, NO.1
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 44348-06370 |
Hose, Oil Reservoir TO Pump, NO.1
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 44348B — Clamp(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 44349-41010 |
Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 44349-41010 |
Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 44406 — Tube Sub-assy, Return | ||||
| 44406-06171 |
Tube Sub-assy, Return
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 44406-06171 |
Tube Sub-assy, Return
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 44410 — Tube Assy, Pressure Feed | ||||
| 44410-06141 |
Tube Assy, Pressure Feed
2006-02 → 2007-03
ended
|
ACV40 NAP | — | |
| 44410-06142 |
Tube Assy, Pressure Feed
2007-04 → 2009-03
ended
|
ACV40 NAP | — | |
| 44410-06241 |
Tube Assy, Pressure Feed
2006-02 → 2007-03
ended
|
GSV40 NAP | — | |
| 44410-06242 |
Tube Assy, Pressure Feed
2007-04 → 2009-01
ended
|
GSV40 NAP | — | |
| 44410-06243 |
Tube Assy, Pressure Feed
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 44410-06350 |
Tube Assy, Pressure Feed
2009-03 → 2010-01
ended
|
ASV40 NAP | — | |
| 44410-06351 |
Tube Assy, Pressure Feed
2010-02 → 2011-09
ended
|
ASV40 NAP | — | |
| 44416 — Tube, Return(FOR STEERING GEAR OUTLET) | ||||
| 44416-06161 |
Tube, Return(FOR STEERING GEAR OUTLET)
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 44416-06171 |
Tube, Return(FOR STEERING GEAR OUTLET)
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 44416-06161 |
Tube, Return(FOR STEERING GEAR OUTLET)
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 44416-06290 |
Tube, Return(FOR STEERING GEAR OUTLET)
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 44416E — Bolt, Union(FOR RETURN TUBE) | ||||
| 96341-41603 |
Bolt, Union(FOR RETURN TUBE)
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 96341-41603 |
Bolt, Union(FOR RETURN TUBE)
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
