Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

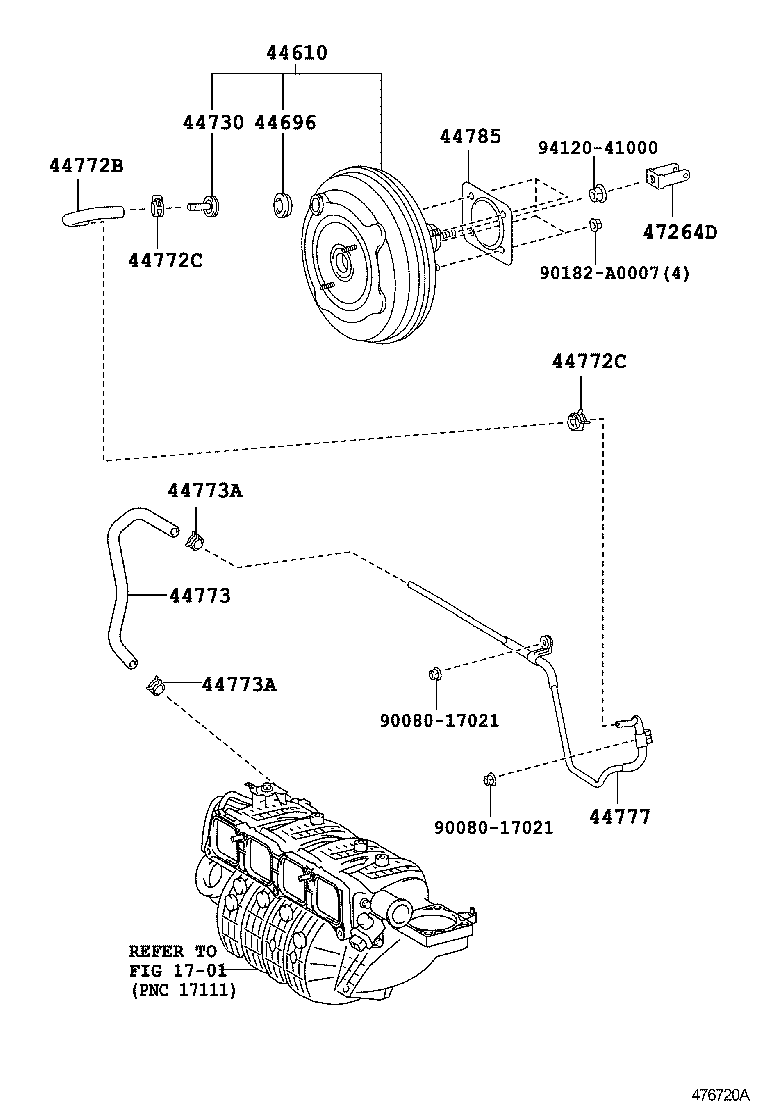

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-06300 |
Booster Assy, Brake
2006-02 → 2006-04
ended
|
ACV40,GSV40 NAP | — | |
| 44610-06301 |
Booster Assy, Brake
2006-05 → 2008-03
ended
|
ACV40,GSV40 NAP | — | |
| 44610-06302 |
Booster Assy, Brake
2008-04 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 44610-06310 note |
Booster Assy, Brake
2006-02 → 2008-04
ended
|
ACV40,GSV40 NAP | — | |
| 44610-07131 note |
Booster Assy, Brake
2008-04 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 44610-06440 note |
Booster Assy, Brake
2009-03 → 2009-08
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 44610-06441 note |
Booster Assy, Brake
2009-08 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 44610-07131 |
Booster Assy, Brake
2009-03 → 2009-08
ended
|
ASV40,GSV40 NAP | — | |
| 44610-07132 |
Booster Assy, Brake
2009-08 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 44696 — Grommet, Check Valve | ||||
| 90080-48071 note |
Grommet, Check Valve
2008-04 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90480-24439 |
Grommet, Check Valve
2008-04 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-48071 |
Grommet, Check Valve
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90080-48071 note |
Grommet, Check Valve
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-22150 |
Valve Assy, Vacuum Check(FOR BRAKE)
2008-04 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 44730-22150 |
Valve Assy, Vacuum Check(FOR BRAKE)
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 44730-22150 note |
Valve Assy, Vacuum Check(FOR BRAKE)
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 44772B — Hose, Check Valve TO Brake Booster | ||||
| 44772-06130 |
Hose, Check Valve TO Brake Booster
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 44773-06090 |
Hose, Check Valve TO Brake Booster
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 44772-06120 note |
Hose, Check Valve TO Brake Booster
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 44772-06130 |
Hose, Check Valve TO Brake Booster
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 44773-06090 |
Hose, Check Valve TO Brake Booster
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 44772C — Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90466-A0003 |
Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90466-A0003 |
Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90467-16014 note |
Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 44773 — Hose, Vacuum, NO.2 | ||||
| 44772-06140 |
Hose, Vacuum, NO.2
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 44772-06320 |
Hose, Vacuum, NO.2
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 44773A — Clip, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16014 |
Clip, NO.1(FOR VACUUM HOSE, NO.2)
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 90467-16014 |
Clip, NO.1(FOR VACUUM HOSE, NO.2)
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 44777 — Connector, Vacuum Hose, NO.1 | ||||
| 44770-06100 |
Connector, Vacuum Hose, NO.1
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 44770-06100 |
Connector, Vacuum Hose, NO.1
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 44770-06261 note |
Connector, Vacuum Hose, NO.1
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-07010 |
Gasket, Brake Booster
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 44785-07010 |
Gasket, Brake Booster
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-63020 |
Clevis, Brake Master Cylinder Push Rod
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 47264-63020 |
Clevis, Brake Master Cylinder Push Rod
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
