Factory parts data · Europe

Toyota Camry (NAP)

2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States

Supported model Data version 2011-10

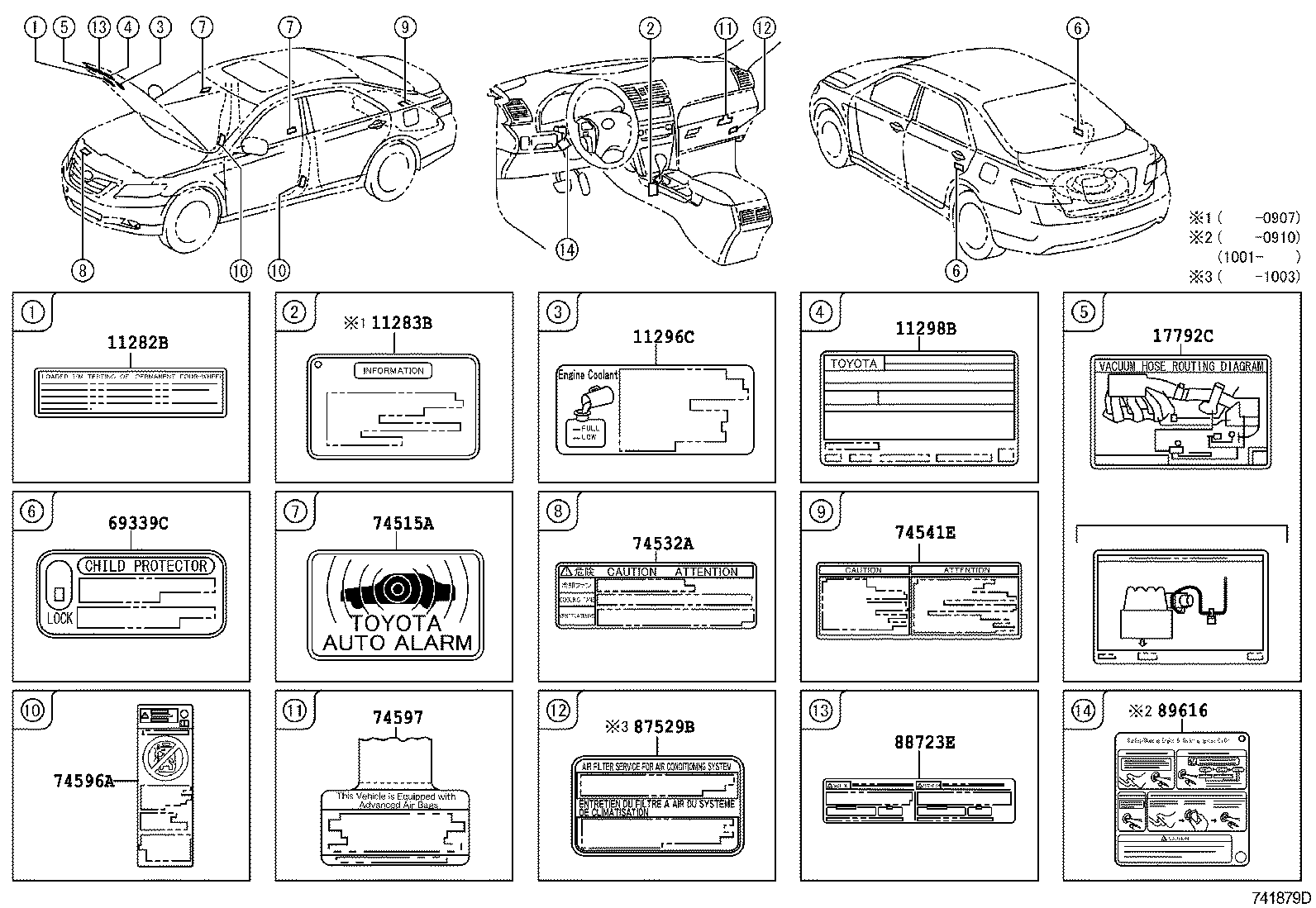

48 parts on this figure
Part number Description Fitment Price
11282B — Label, Loaded Testing Caution
11282-74010 note Label, Loaded Testing Caution
2006-02 → 2009-03 ended
2AZFE,2GRFE ACV40,GSV40 NAP —
11282-74010 note Label, Loaded Testing Caution
2006-02 → 2009-03 ended
2AZFE ACV40 NAP 5FC —
11283B — Label, Leak Detection Pump Information
11294-28010 Label, Leak Detection Pump Information
2006-02 → 2009-03 ended
2AZFE,2GRFE ACV40,GSV40 NAP —
11294-28010 Label, Leak Detection Pump Information
2009-03 → 2009-07 ended
2ARFE,2GRFE ASV40,GSV40 NAP —
11296C — Label, Engine Service Information
11296-27020 Label, Engine Service Information
2006-02 → 2007-05 ended
2AZFE,2GRFE ACV40,GSV40 NAP —
11298B — Label, Emission Control Information
11298-28390 Label, Emission Control Information
2006-02 → 2007-08 ended
2AZFE ACV40 NAP —
11298-28400 note Label, Emission Control Information
2006-02 → 2007-08 ended
2AZFE ACV40 NAP 5FC —
11298-28400 note Label, Emission Control Information
2006-02 → 2007-08 ended
2AZFE ACV40 NAP 5FC —
11298-28630 Label, Emission Control Information
2007-08 → 2008-02 ended
2AZFE ACV40 NAP —
11298-28640 note Label, Emission Control Information
2007-08 → 2008-02 ended
2AZFE ACV40 NAP 5FC —
11298-28640 note Label, Emission Control Information
2007-08 → 2008-02 ended
2AZFE ACV40 NAP 5FC —
11298-28710 Label, Emission Control Information
2008-02 → 2009-03 ended
2AZFE ACV40 NAP —
11298-28720 note Label, Emission Control Information
2008-02 → 2009-03 ended
2AZFE ACV40 NAP 5FC —
11298-28720 note Label, Emission Control Information
2008-02 → 2009-03 ended
2AZFE ACV40 NAP 5FC —
11298-31130 Label, Emission Control Information
2006-02 → 2007-08 ended
2GRFE GSV40 NAP —
11298-31400 Label, Emission Control Information
2007-08 → 2008-02 ended
2GRFE GSV40 NAP —
11298-31590 Label, Emission Control Information
2008-02 → 2009-03 ended
2GRFE GSV40 NAP —
11298-31790 Label, Emission Control Information
2009-03 → 2010-02 ended
2GRFE GSV40 NAP —
11298-31820 Label, Emission Control Information
2010-02 → 2011-09 ended
2GRFE GSV40 NAP —
11298-36070 Label, Emission Control Information
2009-03 → 2009-09 ended
2ARFE ASV40 NAP —
11298-36071 Label, Emission Control Information
2009-09 → 2011-09 ended
2ARFE ASV40 NAP —
11298-36080 note Label, Emission Control Information
2009-03 → 2009-09 ended
2ARFE ASV40 NAP 6FC +1 —
11298-36081 note Label, Emission Control Information
2009-09 → 2011-09 ended
2ARFE ASV40 NAP 6FC +1 —
17792C — Label, Engine Vacuum Hose Information
17792-0H030 Label, Engine Vacuum Hose Information
2006-02 → 2006-09 ended
2AZFE ACV40 NAP —
17792-0H050 Label, Engine Vacuum Hose Information
2006-10 → 2009-03 ended
2AZFE ACV40 NAP —
17792-0P040 Label, Engine Vacuum Hose Information
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
69339C — Label, Child Protector Information
69339-AA020 Label, Child Protector Information
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
69339-AA020 Label, Child Protector Information
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
74515A — Plate, Theft Warning
74515-06010 Plate, Theft Warning
2006-02 → 2009-03 ended
ACV40,GSV40 NAP XLE —
74515-06010 note Plate, Theft Warning
2006-02 → 2009-03 ended
ACV40,GSV40 NAP SE —
74515-06010 Plate, Theft Warning
2009-03 → 2011-09 ended
ASV40,GSV40 NAP XLE —
74532A — Plate, Caution
16793-46010 Plate, Caution
2006-02 → 2009-03 ended
GSV40 NAP —
16793-46010 Plate, Caution
2009-03 → 2011-09 ended
GSV40 NAP —
74541E — Plate, Compact Spare Tire Caution
42668-06010 Plate, Compact Spare Tire Caution
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
42668-06010 Plate, Compact Spare Tire Caution
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
74596A — Label, Side Airbag Caution
74596-02020 Label, Side Airbag Caution
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
74596-02020 Label, Side Airbag Caution
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
74597 — Label, Driver & Passenger Airbag Caution
74599-0E020 Label, Driver & Passenger Airbag Caution
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
74599-0E020 Label, Driver & Passenger Airbag Caution
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
74599-0E020 note Label, Driver & Passenger Airbag Caution
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
74599-0E020 note Label, Driver & Passenger Airbag Caution
2009-03 → 2011-09 ended
GSV40 NAP XLE;ASV40 NAP +2 —
87529B — Label, A/C Filter Information
87529-0E010 Label, A/C Filter Information
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
87529-0E010 Label, A/C Filter Information
2009-03 → 2010-03 ended
ASV40,GSV40 NAP —
88723E — Label, Cooler Service Caution
88723-07030 Label, Cooler Service Caution
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
88723-07030 Label, Cooler Service Caution
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
89616 — Label, Push Start Information
89616-30031 note Label, Push Start Information
2006-02 → 2009-03 ended
GSV40 NAP XLE —
89616-30031 note Label, Push Start Information
2009-03 → 2009-10 ended
ASV40,GSV40 NAP 6FC (SE,XLE) —
89616-30031 note Label, Push Start Information
2010-01 → 2011-09 ended
ASV40,GSV40 NAP 6FC (SE,XLE) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
