Toyota Camry (NAP)

2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

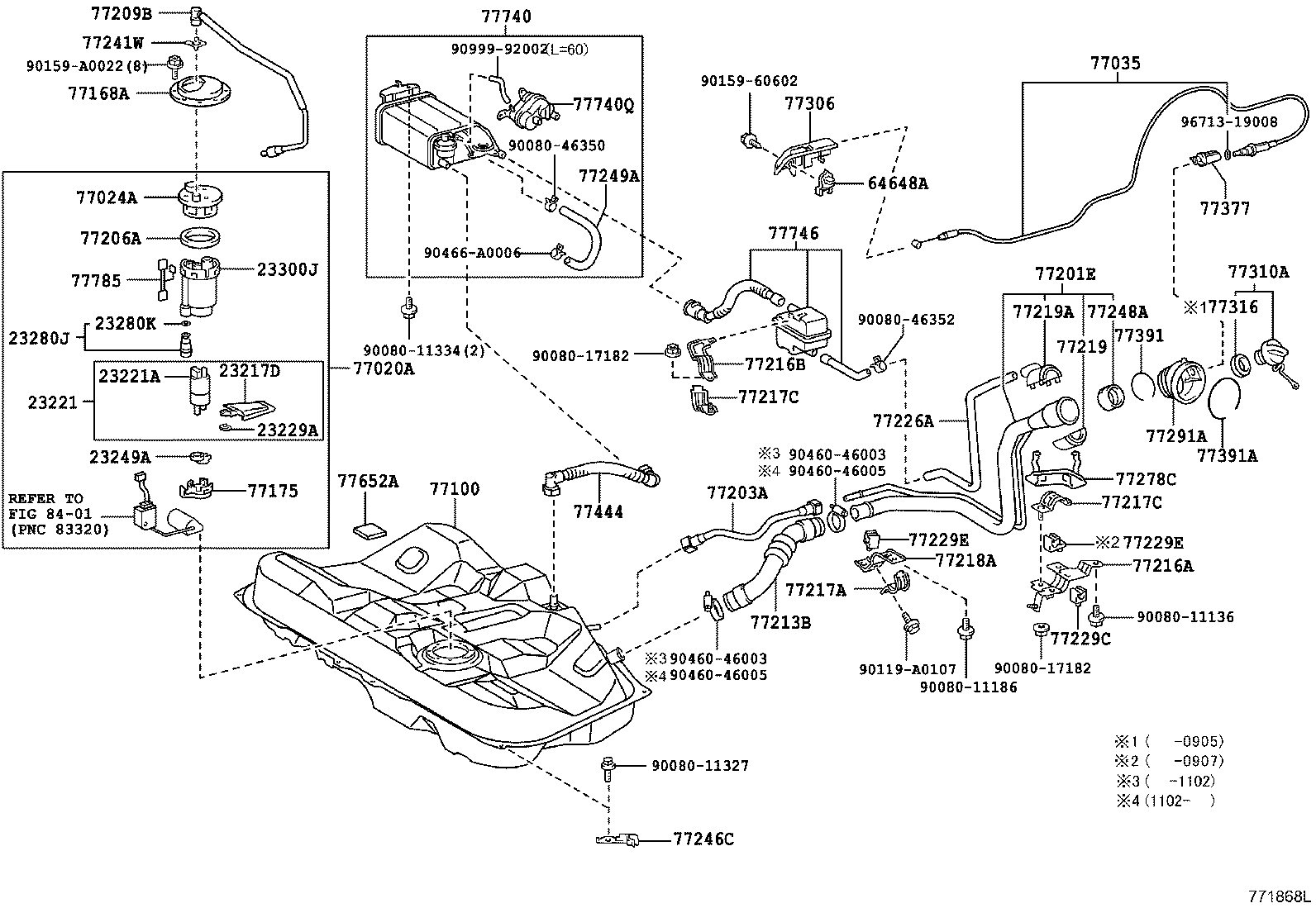

Exploded illustration 771868L 8401 — not listed in this catalogue 77310A — CAP ASSY, FUEL TANK (4 parts) 77316 — GASKET, FUEL TANK CAP (3 parts) 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (2 parts) 77100 — TANK ASSY, FUEL (8 parts) 77246C — SUPPORT, FUEL MAIN TUBE (4 parts) 77391 — RING, FUEL INLET BOX (3 parts) 77391A — RING, FUEL INLET BOX (2 parts) 77444 — HOSE, FUEL TANK VENT (2 parts) 77652A — CUSHION, FUEL TANK, NO.2 (3 parts) 23221 — PUMP, FUEL (6 parts) 9008011327 — not listed in this catalogue 23249A — RUBBER, CUSHION(FOR FUEL PUMP) (2 parts) 23280J — REGULATOR ASSY, FUEL PRESSURE (4 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (8 parts) 23300J — FILTER ASSY, FUEL (2 parts) 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (8 parts) 23221A — PUMP, FUEL, NO.1 (2 parts) 23217D — FILTER, FUEL PUMP (2 parts) 23229A — CLIP(FOR FUEL PUMP FILTER) (2 parts) 77024A — PLATE SUB-ASSY, FUEL SUCTION (4 parts) 77168A — PLATE, FUEL TANK VENT TUBE SET (2 parts) 77175 — SUPPORT, FUEL SUCTION, NO.2 (2 parts) 77206A — GASKET (FOR FUEL TANK SUCTION TUBE) (7 parts) 77209B — TUBE SUB-ASSY, FUEL PUMP (2 parts) 77241W — CLIP, TUBE JOINT (5 parts) 77785 — HARNESS, FUEL PUMP (6 parts) 90159A0022 — not listed in this catalogue 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (2 parts) 9671319008 — not listed in this catalogue 77201E — PIPE SUB-ASSY, FUEL TANK FILLER (5 parts) 77203A — TUBE SUB-ASSY, FUEL SUCTION (2 parts) 77213B — HOSE, FUEL TANK TO FILLER PIPE (2 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (5 parts) 77216B — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (2 parts) 77217A — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (5 parts) 77217C — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (5 parts) 77217C — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (5 parts) 77218A — SUPPORT, FUEL TANK FILLER PIPE, NO.3 (5 parts) 77219 — COVER, FUEL TANK FILLER PIPE (2 parts) 77226A — TUBE, FUEL TANK BREATHER, NO.6 (5 parts) 77229C — CLAMP, BREATHER TUBE (7 parts) 77229E — CLAMP, BREATHER TUBE (6 parts) 77229E — CLAMP, BREATHER TUBE (6 parts) 77248A — HOLDER, FUEL TANK FILLER PIPE COVER (2 parts) 77278C — PROTECTOR, FUEL TANK FILLER PIPE, NO.2 (5 parts) 77219A — COVER, FUEL TANK FILLER PIPE (2 parts) 77746 — FILTER, CHARCOAL CANISTER, NO.2 (5 parts) 9008011136 — not listed in this catalogue 9008011186 — not listed in this catalogue 9008017182 — not listed in this catalogue 9008017182 — not listed in this catalogue 9008046352 — not listed in this catalogue 90119A0107 — not listed in this catalogue 9046046003 — not listed in this catalogue 9046046005 — not listed in this catalogue 9046046005 — not listed in this catalogue 9046046003 — not listed in this catalogue 77291A — SHIELD, FUEL TANK FILLER PIPE (3 parts) 64648A — GROMMET, LUGGAGE DOOR LOCK OPENER (2 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (2 parts) 9015960602 — not listed in this catalogue 9008011334 — not listed in this catalogue 9008046350 — not listed in this catalogue 9099992002 — not listed in this catalogue 90466A0006 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (4 parts) 77740Q — LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER (1 parts) 77249A — HOSE, FUEL EMISSION (5 parts)
771868L · 50 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
179 parts on this figure
Part number Description Fitment Price
23217D — Filter, Fuel Pump
23217-0C010 Filter, Fuel Pump
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
23217-0C010 Filter, Fuel Pump
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
23221 — Pump, Fuel
23220-0A040 Pump, Fuel
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
23220-0H060 Pump, Fuel
2006-02 → 2007-08 ended
2AZFE ACV40 NAP —
23220-0H061 Pump, Fuel
2007-09 → 2009-03 ended
2AZFE ACV40 NAP —
23220-0A040 Pump, Fuel
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
23220-0H061 Pump, Fuel
2009-03 → 2011-04 ended
2ARFE ASV40 NAP —
23220-0H062 Pump, Fuel
2011-05 → 2011-09 ended
2ARFE ASV40 NAP —
23221A — Pump, Fuel, NO.1
23221-0A040 Pump, Fuel, NO.1
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
23221-0A040 Pump, Fuel, NO.1
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
23229A — Clip(FOR FUEL PUMP FILTER)
23219-03010 Clip(FOR FUEL PUMP FILTER)
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
23219-03010 Clip(FOR FUEL PUMP FILTER)
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
23249A — Rubber, Cushion(FOR FUEL PUMP)
23249-0A020 Rubber, Cushion(FOR FUEL PUMP)
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
23249-0A020 Rubber, Cushion(FOR FUEL PUMP)
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
23280J — Regulator Assy, Fuel Pressure
23280-20060 Regulator Assy, Fuel Pressure
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
23280-21010 Regulator Assy, Fuel Pressure
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
23280-20060 Regulator Assy, Fuel Pressure
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
23280-21010 Regulator Assy, Fuel Pressure
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
23280K — Ring, O(FOR FUEL PRESSURE REGULATOR)
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
90301-07020 Ring, O(FOR FUEL PRESSURE REGULATOR)
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
90301-A0013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2006-02 → 2009-03 ended
2AZFE ACV40 NAP —
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
90301-07020 Ring, O(FOR FUEL PRESSURE REGULATOR)
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
90301-A0013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2009-03 → 2011-09 ended
2ARFE ASV40 NAP —
23300J — Filter Assy, Fuel
23300-0A020 Filter Assy, Fuel
2006-02 → 2009-03 ended
2GRFE GSV40 NAP —
23300-0A020 Filter Assy, Fuel
2009-03 → 2011-09 ended
2GRFE GSV40 NAP —
64648A — Grommet, Luggage Door Lock Opener
64648-12020 Grommet, Luggage Door Lock Opener
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
64648-12020 Grommet, Luggage Door Lock Opener
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77020A — Tube Assy, Fuel Suction W/Pump & Gage
77020-06120 Tube Assy, Fuel Suction W/Pump & Gage
2006-02 → 2007-11 ended
ACV40 NAP —
77020-06121 Tube Assy, Fuel Suction W/Pump & Gage
2007-12 → 2009-03 ended
ACV40 NAP —
77020-06130 note Tube Assy, Fuel Suction W/Pump & Gage
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77020-06131 note Tube Assy, Fuel Suction W/Pump & Gage
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77020-07040 Tube Assy, Fuel Suction W/Pump & Gage
2006-02 → 2009-03 ended
GSV40 NAP —
77020-06121 Tube Assy, Fuel Suction W/Pump & Gage
2009-03 → 2011-09 ended
ASV40 NAP —
77020-06131 note Tube Assy, Fuel Suction W/Pump & Gage
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77020-07040 Tube Assy, Fuel Suction W/Pump & Gage
2009-03 → 2011-09 ended
GSV40 NAP —
77024A — Plate Sub-assy, Fuel Suction
77024-06020 Plate Sub-assy, Fuel Suction
2006-02 → 2009-03 ended
GSV40 NAP —
77024-06030 Plate Sub-assy, Fuel Suction
2006-02 → 2009-03 ended
ACV40 NAP —
77024-06020 Plate Sub-assy, Fuel Suction
2009-03 → 2011-09 ended
GSV40 NAP —
77024-06030 Plate Sub-assy, Fuel Suction
2009-03 → 2011-09 ended
ASV40 NAP —
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-06090 Cable Sub-assy, Fuel Lid Lock Control
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77035-06090 Cable Sub-assy, Fuel Lid Lock Control
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77100 — Tank Assy, Fuel
77001-06080 note Tank Assy, Fuel
2006-02 → 2006-08 ended
ACV40 NAP 5FC —
77001-06081 note Tank Assy, Fuel
2006-09 → 2008-07 ended
ACV40 NAP 5FC —
77001-06082 note Tank Assy, Fuel
2008-08 → 2009-03 ended
ACV40 NAP 5FC —
77001-06110 Tank Assy, Fuel
2006-02 → 2006-08 ended
ACV40,GSV40 NAP —
77001-06111 Tank Assy, Fuel
2006-09 → 2008-07 ended
ACV40,GSV40 NAP —
77001-06112 Tank Assy, Fuel
2008-08 → 2009-03 ended
ACV40,GSV40 NAP —
77001-06082 note Tank Assy, Fuel
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77001-06112 Tank Assy, Fuel
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77168A — Plate, Fuel Tank Vent Tube Set
77168-33050 Plate, Fuel Tank Vent Tube Set
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77168-33050 Plate, Fuel Tank Vent Tube Set
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77175 — Support, Fuel Suction, NO.2
77175-06020 Support, Fuel Suction, NO.2
2006-02 → 2009-03 ended
GSV40 NAP —
77175-06020 Support, Fuel Suction, NO.2
2009-03 → 2011-09 ended
GSV40 NAP —
77201E — Pipe Sub-assy, Fuel Tank Filler
77201-06080 Pipe Sub-assy, Fuel Tank Filler
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77201-33310 note Pipe Sub-assy, Fuel Tank Filler
2006-02 → 2007-09 ended
ACV40 NAP 5FC —
77201-33311 note Pipe Sub-assy, Fuel Tank Filler
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77201-06080 Pipe Sub-assy, Fuel Tank Filler
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77201-33311 note Pipe Sub-assy, Fuel Tank Filler
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77203A — Tube Sub-assy, Fuel Suction
77203-06020 Tube Sub-assy, Fuel Suction
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77203-06020 Tube Sub-assy, Fuel Suction
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77206A — Gasket (FOR FUEL TANK SUCTION TUBE)
77169-02020 Gasket (FOR FUEL TANK SUCTION TUBE)
2006-02 → 2007-11 ended
ACV40 NAP —
77169-02020 Gasket (FOR FUEL TANK SUCTION TUBE)
2006-02 → 2009-03 ended
GSV40 NAP —
77169-02020 Gasket (FOR FUEL TANK SUCTION TUBE)
2007-12 → 2009-03 ended
ACV40 NAP —
77169-33030 note Gasket (FOR FUEL TANK SUCTION TUBE)
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77169-33030 note Gasket (FOR FUEL TANK SUCTION TUBE)
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77169-02020 Gasket (FOR FUEL TANK SUCTION TUBE)
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77169-33030 note Gasket (FOR FUEL TANK SUCTION TUBE)
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77209B — Tube Sub-assy, Fuel Pump
77209-06030 Tube Sub-assy, Fuel Pump
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77209-06030 Tube Sub-assy, Fuel Pump
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77213B — Hose, Fuel Tank TO Filler Pipe
77213-06040 Hose, Fuel Tank TO Filler Pipe
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77213-06040 Hose, Fuel Tank TO Filler Pipe
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77216A — Support, Fuel Tank Filler Pipe, NO.1
77205-33030 note Support, Fuel Tank Filler Pipe, NO.1
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77205-33030 note Support, Fuel Tank Filler Pipe, NO.1
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77216-06050 Support, Fuel Tank Filler Pipe, NO.1
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77205-33030 note Support, Fuel Tank Filler Pipe, NO.1
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77216-06050 Support, Fuel Tank Filler Pipe, NO.1
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77216B — Support, Fuel Tank Filler Pipe, NO.2
77216-07020 Support, Fuel Tank Filler Pipe, NO.2
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77216-07020 Support, Fuel Tank Filler Pipe, NO.2
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77217A — Support, Fuel Tank Filler Pipe, NO.2
77217-06040 Support, Fuel Tank Filler Pipe, NO.2
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77217-33030 note Support, Fuel Tank Filler Pipe, NO.2
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77217-33030 note Support, Fuel Tank Filler Pipe, NO.2
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77217-06040 Support, Fuel Tank Filler Pipe, NO.2
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77217-33030 note Support, Fuel Tank Filler Pipe, NO.2
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77217C — Support, Fuel Tank Filler Pipe, NO.2
77217-07010 Support, Fuel Tank Filler Pipe, NO.2
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77217-33020 note Support, Fuel Tank Filler Pipe, NO.2
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77217-33020 note Support, Fuel Tank Filler Pipe, NO.2
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77217-07010 Support, Fuel Tank Filler Pipe, NO.2
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77217-33020 note Support, Fuel Tank Filler Pipe, NO.2
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77218A — Support, Fuel Tank Filler Pipe, NO.3
77218-06050 Support, Fuel Tank Filler Pipe, NO.3
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77218-33051 note Support, Fuel Tank Filler Pipe, NO.3
2006-02 → 2007-09 ended
ACV40 NAP 5FC —
77218-33052 note Support, Fuel Tank Filler Pipe, NO.3
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77218-06050 Support, Fuel Tank Filler Pipe, NO.3
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77218-33052 note Support, Fuel Tank Filler Pipe, NO.3
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77219 — Cover, Fuel Tank Filler Pipe
77219-06050 Cover, Fuel Tank Filler Pipe
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77219-06050 Cover, Fuel Tank Filler Pipe
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77219A — Cover, Fuel Tank Filler Pipe
77289-06060 Cover, Fuel Tank Filler Pipe
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77289-06060 Cover, Fuel Tank Filler Pipe
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77226A — Tube, Fuel Tank Breather, NO.6
77226-06020 Tube, Fuel Tank Breather, NO.6
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77226-33060 note Tube, Fuel Tank Breather, NO.6
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77226-33060 note Tube, Fuel Tank Breather, NO.6
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77226-06020 Tube, Fuel Tank Breather, NO.6
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77226-33060 note Tube, Fuel Tank Breather, NO.6
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77229C — Clamp, Breather Tube
77229-07010 Clamp, Breather Tube
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77229-33080 note Clamp, Breather Tube
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77229-33080 note Clamp, Breather Tube
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77229-33100 note Clamp, Breather Tube
2006-02 → 2009-03 ended
ACV40 NAP 5FC —
77229-07010 Clamp, Breather Tube
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77229-33080 note Clamp, Breather Tube
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77229-33100 note Clamp, Breather Tube
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77229E — Clamp, Breather Tube
77229-06040 Clamp, Breather Tube
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77229-33060 note Clamp, Breather Tube
2006-02 → 2009-03 ended
ACV40 NAP 5FC —
77229-06040 Clamp, Breather Tube
2009-07 → 2011-09 ended
ASV40,GSV40 NAP —
77229-06040 Clamp, Breather Tube
2009-03 → 2009-07 ended
ASV40,GSV40 NAP —
77229-33060 note Clamp, Breather Tube
2009-03 → 2009-07 ended
ASV40 NAP 6FC (LE,XLE) —
77229-33060 note Clamp, Breather Tube
2009-07 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77241W — Clip, Tube Joint
77241-02010 Clip, Tube Joint
2006-02 → 2006-11 ended
ACV40 NAP —
77241-02010 Clip, Tube Joint
2006-02 → 2009-03 ended
GSV40 NAP —
77241-06020 Clip, Tube Joint
2006-12 → 2009-03 ended
ACV40 NAP —
77241-02010 Clip, Tube Joint
2009-03 → 2011-09 ended
GSV40 NAP —
77241-06020 Clip, Tube Joint
2009-03 → 2011-09 ended
ASV40 NAP —
77246C — Support, Fuel Main Tube
77246-06010 note Support, Fuel Main Tube
2006-03 → 2009-03 ended
ACV40,GSV40 NAP —
77246-33020 note Support, Fuel Main Tube
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77246-06010 note Support, Fuel Main Tube
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77246-33020 note Support, Fuel Main Tube
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77248A — Holder, Fuel Tank Filler Pipe Cover
77248-06020 Holder, Fuel Tank Filler Pipe Cover
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77248-06020 Holder, Fuel Tank Filler Pipe Cover
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77249A — Hose, Fuel Emission
77249-06070 note Hose, Fuel Emission
2006-02 → 2009-03 ended
ACV40 NAP 5FC —
77249-07020 Hose, Fuel Emission
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77249-06070 note Hose, Fuel Emission
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77249-07020 Hose, Fuel Emission
2009-03 → 2009-09 ended
ASV40,GSV40 NAP —
77249-07021 Hose, Fuel Emission
2009-10 → 2011-09 ended
ASV40,GSV40 NAP —
77278C — Protector, Fuel Tank Filler Pipe, NO.2
77278-07030 Protector, Fuel Tank Filler Pipe, NO.2
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77278-33020 note Protector, Fuel Tank Filler Pipe, NO.2
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77278-33020 note Protector, Fuel Tank Filler Pipe, NO.2
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77278-07030 Protector, Fuel Tank Filler Pipe, NO.2
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77278-33020 note Protector, Fuel Tank Filler Pipe, NO.2
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77291A — Shield, Fuel Tank Filler Pipe
77291-06040 Shield, Fuel Tank Filler Pipe
2006-02 → 2008-03 ended
ACV40,GSV40 NAP —
77291-33060 Shield, Fuel Tank Filler Pipe
2008-03 → 2009-03 ended
ACV40,GSV40 NAP —
77291-33060 Shield, Fuel Tank Filler Pipe
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77306 — Lever Sub-assy, Fuel Lid Lock Open
64606-06020 Lever Sub-assy, Fuel Lid Lock Open
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
64606-06020 Lever Sub-assy, Fuel Lid Lock Open
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77310A — Cap Assy, Fuel Tank
77300-06040 Cap Assy, Fuel Tank
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77300-06050 note Cap Assy, Fuel Tank
2006-02 → 2009-03 ended
ACV40 NAP 5FC —
77300-06040 Cap Assy, Fuel Tank
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77300-06050 note Cap Assy, Fuel Tank
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77316 — Gasket, Fuel Tank Cap
77316-06050 Gasket, Fuel Tank Cap
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77316-06070 Gasket, Fuel Tank Cap
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77316-06090 note Gasket, Fuel Tank Cap
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-AA020 Retainer, Fuel Filler Opening Lid Lock
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77377-AA020 Retainer, Fuel Filler Opening Lid Lock
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77391 — Ring, Fuel Inlet Box
77391-02040 Ring, Fuel Inlet Box
2006-02 → 2008-01 ended
ACV40,GSV40 NAP —
77391-02041 Ring, Fuel Inlet Box
2008-02 → 2009-03 ended
ACV40,GSV40 NAP —
77391-02041 Ring, Fuel Inlet Box
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77391A — Ring, Fuel Inlet Box
77391-06010 Ring, Fuel Inlet Box
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77391-06010 Ring, Fuel Inlet Box
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77444 — Hose, Fuel Tank Vent
77404-06050 Hose, Fuel Tank Vent
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77404-06050 Hose, Fuel Tank Vent
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77652A — Cushion, Fuel Tank, NO.2
77652-06010 Cushion, Fuel Tank, NO.2
2006-02 → 2007-07 ended
ACV40,GSV40 NAP —
77652-33020 Cushion, Fuel Tank, NO.2
2007-07 → 2009-03 ended
ACV40,GSV40 NAP —
77652-33020 Cushion, Fuel Tank, NO.2
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77740 — Canister Assy, Charcoal
77740-06210 note Canister Assy, Charcoal
2006-02 → 2009-03 ended
ACV40 NAP 5FC —
77740-07020 Canister Assy, Charcoal
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77740-06210 note Canister Assy, Charcoal
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77740-07020 Canister Assy, Charcoal
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77740Q — Leak Detection Pump Sub-assy, Charcoal Canister
90910-AF002 Leak Detection Pump Sub-assy, Charcoal Canister
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77746 — Filter, Charcoal Canister, NO.2
77706-07010 Filter, Charcoal Canister, NO.2
2006-02 → 2009-03 ended
ACV40,GSV40 NAP —
77706-33030 note Filter, Charcoal Canister, NO.2
2006-02 → 2007-08 ended
ACV40 NAP 5FC —
77706-33030 note Filter, Charcoal Canister, NO.2
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77706-07010 Filter, Charcoal Canister, NO.2
2009-03 → 2011-09 ended
ASV40,GSV40 NAP —
77706-33030 note Filter, Charcoal Canister, NO.2
2009-03 → 2011-09 ended
ASV40 NAP 6FC (LE,XLE) —
77785 — Harness, Fuel Pump
77785-06020 Harness, Fuel Pump
2006-02 → 2009-03 ended
GSV40 NAP —
77785-06040 Harness, Fuel Pump
2006-02 → 2007-11 ended
ACV40 NAP —
77785-06040 note Harness, Fuel Pump
2007-09 → 2009-03 ended
ACV40 NAP 5FC —
77785-06040 Harness, Fuel Pump
2007-12 → 2009-03 ended
ACV40 NAP —
77785-06020 Harness, Fuel Pump
2009-03 → 2011-09 ended
GSV40 NAP —
77785-06040 Harness, Fuel Pump
2009-03 → 2011-09 ended
ASV40 NAP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
