Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

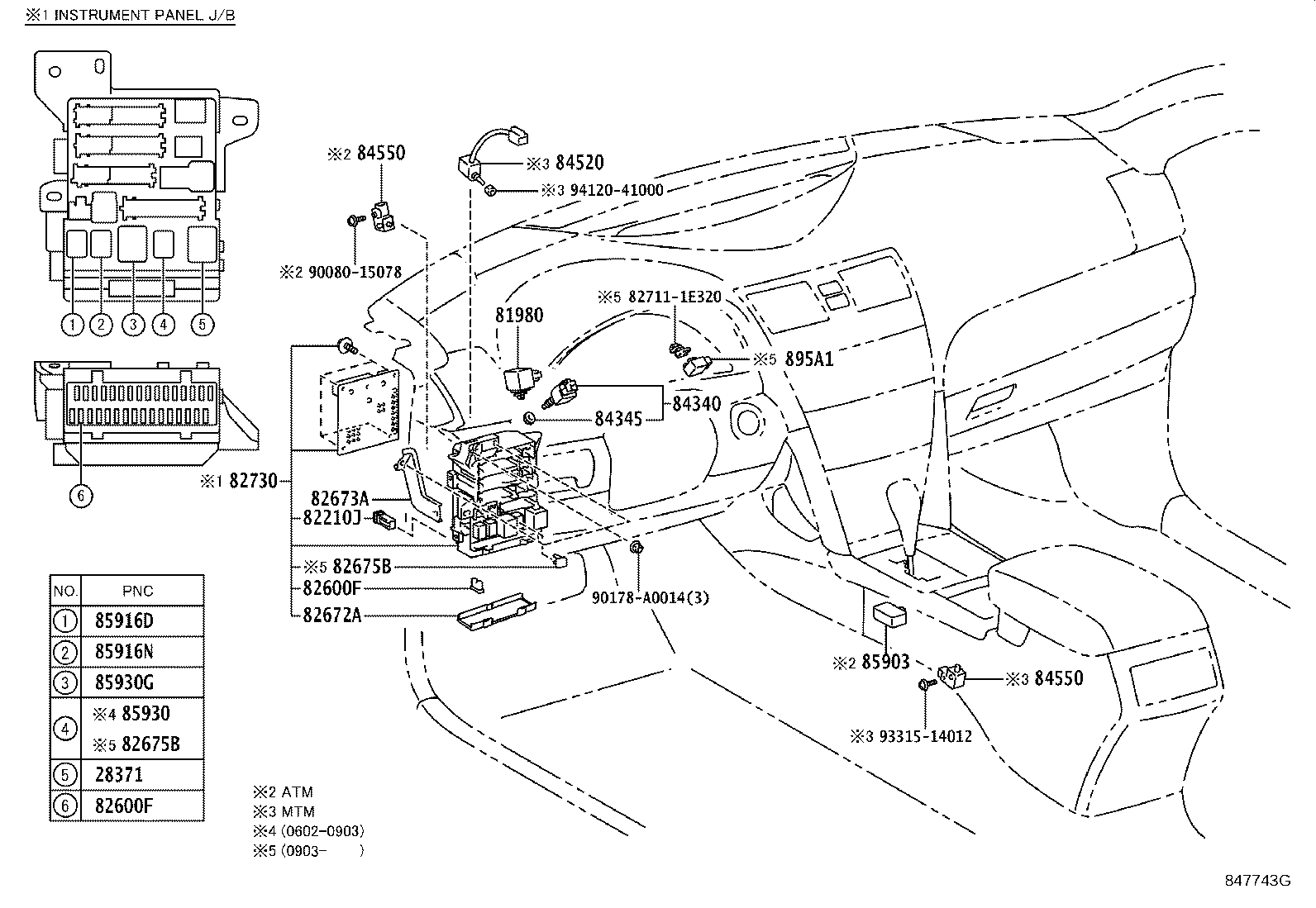

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90080-87024 |
Relay, Ignition, NO.1
2006-02 → 2007-03
ended
|
2AZFE,2GRFE ACV40,GSV40 NAP | — | |
| 90987-A2002 |
Relay, Ignition, NO.1
2007-04 → 2009-03
ended
|
2AZFE,2GRFE ACV40,GSV40 NAP | — | |
| 90987-A2002 |
Relay, Ignition, NO.1
2009-03 → 2011-09
ended
|
2ARFE,2GRFE ASV40,GSV40 NAP | — | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-06020 |
Flasher Assy, Turn Signal
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 81980-06020 |
Flasher Assy, Turn Signal
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 82210J — Fusible Link | ||||
| 90982-08283 note |
Fusible Link
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-08283 note |
Fusible Link
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-08283 note |
Fusible Link
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-08283 note |
Fusible Link
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90080-82050 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82051 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82052 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82053 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82054 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82055 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09020 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09020 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40 NAP SE | — | |
| 90982-09020 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09021 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09021 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09022 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09022 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09023 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09023 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 90982-09024 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09024 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09025 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09025 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09020 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09020 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09021 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09021 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 90982-09021 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09022 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09022 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 90982-09022 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09023 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09024 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09024 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09025 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09025 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09025 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 90080-82050 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82051 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82052 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82053 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82054 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-82055 note |
Fuse, Fuse Block
2006-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09020 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09020 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09020 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40 NAP SE | — | |
| 90982-09020 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09020 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09021 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09021 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 90982-09021 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09021 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09021 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09022 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09022 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09022 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09022 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 90982-09022 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09023 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09023 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 90982-09023 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09024 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09024 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09024 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09024 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09025 note |
Fuse, Fuse Block
2010-02 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 90982-09025 note |
Fuse, Fuse Block
2006-02 → 2006-05
ended
|
ACV40,GSV40 NAP | — | |
| 90982-09025 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 90982-09025 note |
Fuse, Fuse Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 90982-09025 note |
Fuse, Fuse Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-33320 |
Cover, Junction Block
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 82672-33320 |
Cover, Junction Block
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82673-06010 |
Bracket, Junction Block, NO.1
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 82673-06010 |
Bracket, Junction Block, NO.1
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 82675B — Terminal, Junction | ||||
| 82675-44010 |
Terminal, Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-06500 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP LE | — | |
| 82730-06500 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP LE | — | |
| 82730-06500 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP LE | — | |
| 82730-06501 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP LE | — | |
| 82730-06501 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP LE | — | |
| 82730-06501 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP LE | — | |
| 82730-06510 |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40,GSV40 NAP (LE,SE) | — | |
| 82730-06511 |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40,GSV40 NAP (LE,SE) | — | |
| 82730-06520 |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40,GSV40 NAP XLE | — | |
| 82730-06520 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40,GSV40 NAP SE | — | |
| 82730-06521 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40,GSV40 NAP SE | — | |
| 82730-06521 |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40,GSV40 NAP XLE | — | |
| 82730-06530 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
GSV40 NAP XLE | — | |
| 82730-06531 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
GSV40 NAP XLE | — | |
| 82730-06540 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP LE | — | |
| 82730-06540 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP LE | — | |
| 82730-06541 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP LE | — | |
| 82730-06541 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP LE | — | |
| 82730-06550 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40,GSV40 NAP (LE,SE) | — | |
| 82730-06551 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40,GSV40 NAP (LE,SE) | — | |
| 82730-06560 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40,GSV40 NAP SE | — | |
| 82730-06560 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40,GSV40 NAP XLE | — | |
| 82730-06561 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40,GSV40 NAP XLE | — | |
| 82730-06561 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40,GSV40 NAP SE | — | |
| 82730-06570 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
GSV40 NAP XLE | — | |
| 82730-06571 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
GSV40 NAP XLE | — | |
| 82730-06580 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP 5FC LE | — | |
| 82730-06580 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP 5FC LE | — | |
| 82730-06581 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP 5FC LE | — | |
| 82730-06581 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP 5FC LE | — | |
| 82730-06590 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40 NAP 5FC LE | — | |
| 82730-06591 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40 NAP 5FC LE | — | |
| 82730-06600 note |
Block Assy, Instrument Panel Junction
2006-02 → 2007-07
ended
|
ACV40,GSV40 NAP XLE | — | |
| 82730-06601 note |
Block Assy, Instrument Panel Junction
2007-08 → 2009-03
ended
|
ACV40,GSV40 NAP XLE | — | |
| 82730-06230 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP LE | — | |
| 82730-06230 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP LE | — | |
| 82730-06230 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP LE | — | |
| 82730-06230 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP LE | — | |
| 82730-06230 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP LE | — | |
| 82730-06240 |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP (LE,SE) | — | |
| 82730-06250 |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP XLE | — | |
| 82730-06260 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 82730-06270 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP LE | — | |
| 82730-06270 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP LE | — | |
| 82730-06280 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP (LE,SE) | — | |
| 82730-06630 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP XLE | — | |
| 82730-06640 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 82730-06650 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 82730-06650 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 82730-06660 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC LE | — | |
| 82730-06670 note |
Block Assy, Instrument Panel Junction
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP XLE | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-09010 |
Switch Assy, Stop Lamp
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 84340-69075 |
Switch Assy, Stop Lamp
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-08010 |
Adjuster, Stop Lamp Switch Mounting
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 84345-08010 |
Adjuster, Stop Lamp Switch Mounting
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 84520 — Switch Assy, Clutch Start | ||||
| 84520-33010 |
Switch Assy, Clutch Start
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 84520-33010 |
Switch Assy, Clutch Start
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-04030 |
Switch Assy, Parking Brake
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP ATM | — | |
| 84550-33010 |
Switch Assy, Parking Brake
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 84550-04030 |
Switch Assy, Parking Brake
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC | — | |
| 84550-33010 |
Switch Assy, Parking Brake
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 85903 — Computer Sub-assy, Shift Lock Control | ||||
| 85903-06010 |
Computer Sub-assy, Shift Lock Control
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP ATM | — | |
| 85903-06020 note |
Computer Sub-assy, Shift Lock Control
2006-02 → 2009-03
ended
|
GSV40 NAP XLE | — | |
| 85903-06010 |
Computer Sub-assy, Shift Lock Control
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC | — | |
| 85903-06020 note |
Computer Sub-assy, Shift Lock Control
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP 6FC (SE,XLE) | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90080-87026 |
Relay, Fog Lamp
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP (SE,XLE) | — | |
| 90080-87026 |
Relay, Fog Lamp
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP (SE,XLE) | — | |
| 85916N — Relay, Taillamp | ||||
| 90080-87026 |
Relay, Taillamp
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90080-87026 |
Relay, Taillamp
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 85930 — Relay Assy, Power Window | ||||
| 90080-87026 |
Relay Assy, Power Window
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 85930G — Relay, Acc | ||||
| 90080-87024 |
Relay, Acc
2006-02 → 2007-03
ended
|
ACV40,GSV40 NAP | — | |
| 90987-A2002 |
Relay, Acc
2007-04 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 90987-A2002 |
Relay, Acc
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 895A1 — Relay, Stop Lamp Control | ||||
| 895A1-12010 |
Relay, Stop Lamp Control
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
