Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

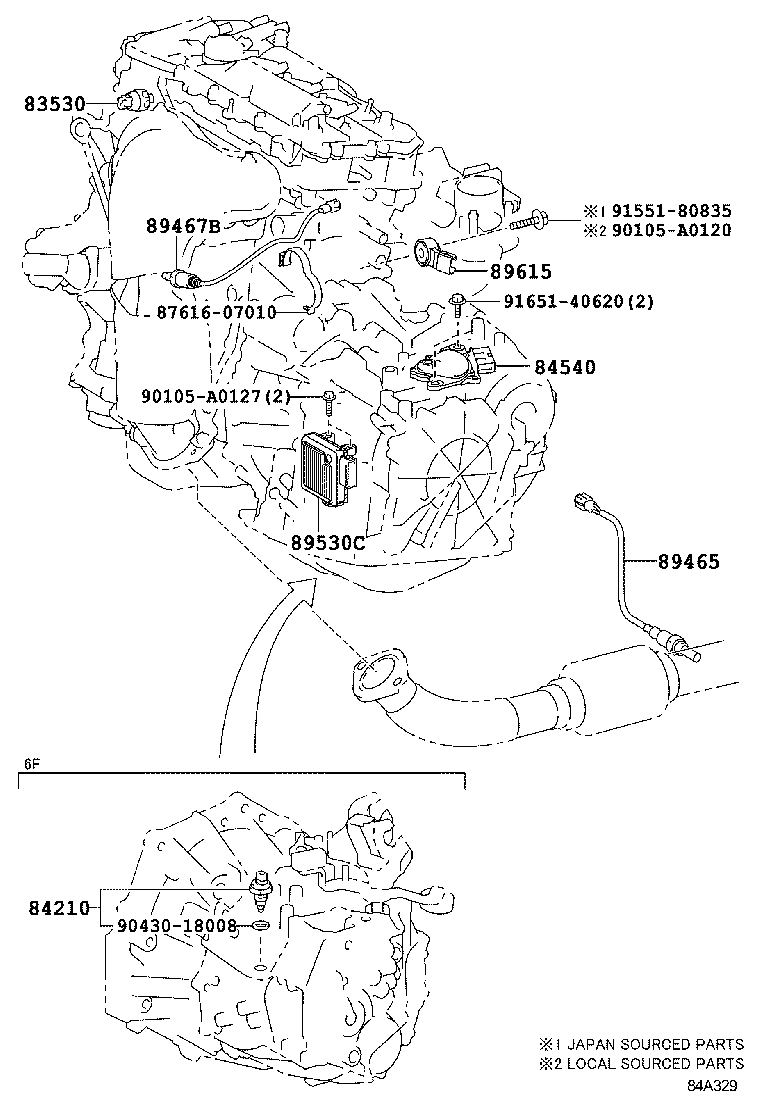

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2007-05 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 83530-AA011 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-02 → 2009-03
ended
|
ACV40,GSV40 NAP | — | |
| 83530-0E010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-05 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-03 → 2011-09
ended
|
ASV40,GSV40 NAP | — | |
| 83530-AA011 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-03 → 2009-05
ended
|
ASV40,GSV40 NAP | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-12040 |
Switch Assy, Back-up Lamp
2006-02 → 2009-03
ended
|
ACV40 NAP 5F | — | |
| 84210-12040 |
Switch Assy, Back-up Lamp
2009-04 → 2011-09
ended
|
ASV40 NAP 6F | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-07010 note |
Switch Assy, Neutral Start
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 84540-33010 note |
Switch Assy, Neutral Start
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 84540-48010 |
Switch Assy, Neutral Start
2006-02 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 84540-07010 note |
Switch Assy, Neutral Start
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 84540-33010 note |
Switch Assy, Neutral Start
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 84540-33010 |
Switch Assy, Neutral Start
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-06150 note |
Sensor, Oxygen
2006-02 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 89465-06200 |
Sensor, Oxygen
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 89465-06250 note |
Sensor, Oxygen
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 89465-07080 note |
Sensor, Oxygen
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 89465-06190 |
Sensor, Oxygen
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 89465-06250 note |
Sensor, Oxygen
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 89465-07080 note |
Sensor, Oxygen
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 89465-33450 note |
Sensor, Oxygen
2009-03 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-06030 |
Sensor, Air Fuel Ratio
2006-02 → 2007-07
ended
|
ACV40 NAP | — | |
| 89467-06030 note |
Sensor, Air Fuel Ratio
2006-02 → 2009-03
ended
|
ACV40 NAP 5FC | — | |
| 89467-06070 |
Sensor, Air Fuel Ratio
2007-08 → 2009-03
ended
|
ACV40 NAP | — | |
| 89467-07010 note |
Sensor, Air Fuel Ratio
2006-02 → 2007-08
ended
|
GSV40 NAP | — | |
| 89467-07020 note |
Sensor, Air Fuel Ratio
2006-02 → 2007-08
ended
|
GSV40 NAP | — | |
| 89467-07030 note |
Sensor, Air Fuel Ratio
2007-08 → 2009-03
ended
|
GSV40 NAP | — | |
| 89467-07040 note |
Sensor, Air Fuel Ratio
2007-08 → 2009-03
ended
|
GSV40 NAP | — | |
| 89467-06100 note |
Sensor, Air Fuel Ratio
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 89467-07030 note |
Sensor, Air Fuel Ratio
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 89467-07040 note |
Sensor, Air Fuel Ratio
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 89467-73010 note |
Sensor, Air Fuel Ratio
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 89530C — Computer Assy, Transmission Control | ||||
| 89530-33010 |
Computer Assy, Transmission Control
2006-02 → 2006-11
ended
|
GSV40 NAP | — | |
| 89530-33011 |
Computer Assy, Transmission Control
2006-11 → 2007-06
ended
|
GSV40 NAP | — | |
| 89530-33012 |
Computer Assy, Transmission Control
2007-06 → 2007-08
ended
|
GSV40 NAP | — | |
| 89530-33020 note |
Computer Assy, Transmission Control
2006-02 → 2007-08
ended
|
GSV40 NAP XLE | — | |
| 89530-33101 |
Computer Assy, Transmission Control
2007-08 → 2007-09
ended
|
GSV40 NAP | — | |
| 89530-33102 |
Computer Assy, Transmission Control
2007-09 → 2009-03
ended
|
GSV40 NAP | — | |
| 89530-06010 |
Computer Assy, Transmission Control
2009-03 → 2010-02
ended
|
ASV40 NAP 6FC | — | |
| 89530-06020 note |
Computer Assy, Transmission Control
2009-03 → 2010-02
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 89530-06020 |
Computer Assy, Transmission Control
2010-02 → 2010-08
ended
|
ASV40 NAP 6FC | — | |
| 89530-06020 note |
Computer Assy, Transmission Control
2010-08 → 2011-09
ended
|
ASV40 NAP 6FC (LE,XLE) | — | |
| 89530-06030 |
Computer Assy, Transmission Control
2010-09 → 2011-09
ended
|
ASV40 NAP 6FC | — | |
| 89530-33140 |
Computer Assy, Transmission Control
2009-03 → 2010-02
ended
|
GSV40 NAP | — | |
| 89530-33180 |
Computer Assy, Transmission Control
2010-02 → 2011-09
ended
|
GSV40 NAP | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-06010 note |
Sensor, Knock Control
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 89615-06010 note |
Sensor, Knock Control
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 89615-20090 note |
Sensor, Knock Control
2006-02 → 2009-03
ended
|
ACV40 NAP | — | |
| 89615-20090 note |
Sensor, Knock Control
2006-02 → 2009-03
ended
|
GSV40 NAP | — | |
| 89615-06010 note |
Sensor, Knock Control
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 89615-06010 note |
Sensor, Knock Control
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
| 89615-20090 note |
Sensor, Knock Control
2009-03 → 2011-09
ended
|
ASV40 NAP | — | |
| 89615-20090 note |
Sensor, Knock Control
2009-03 → 2011-09
ended
|
GSV40 NAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
