Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

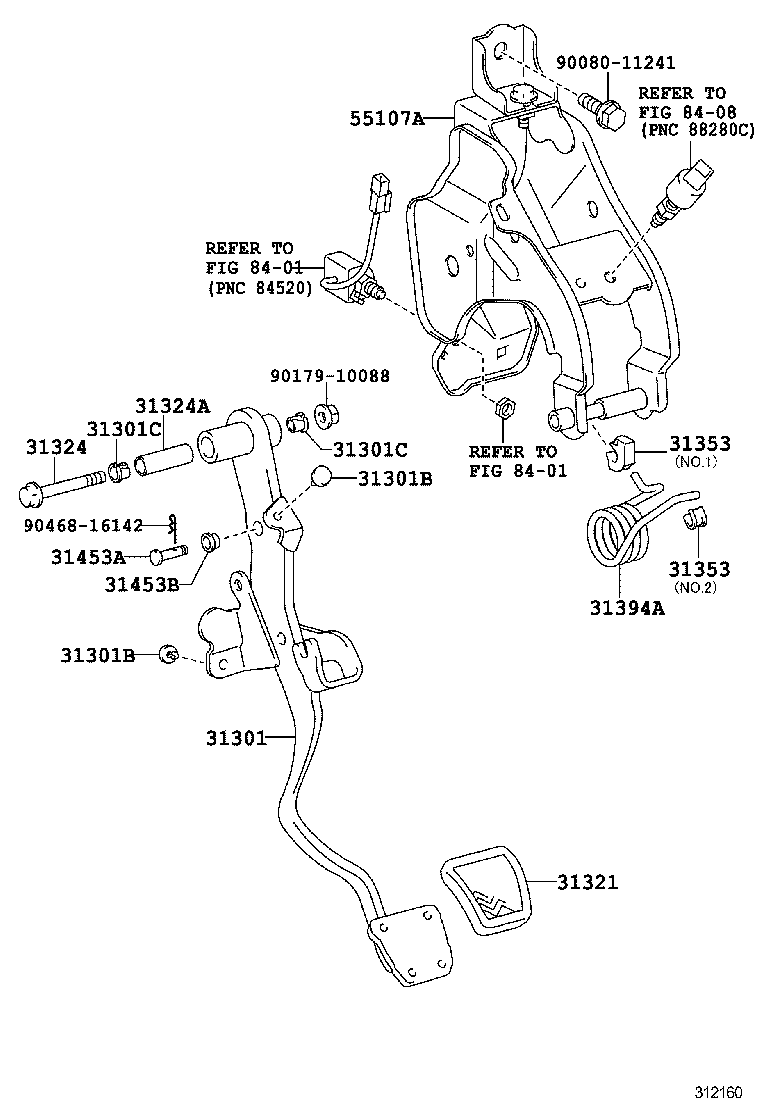

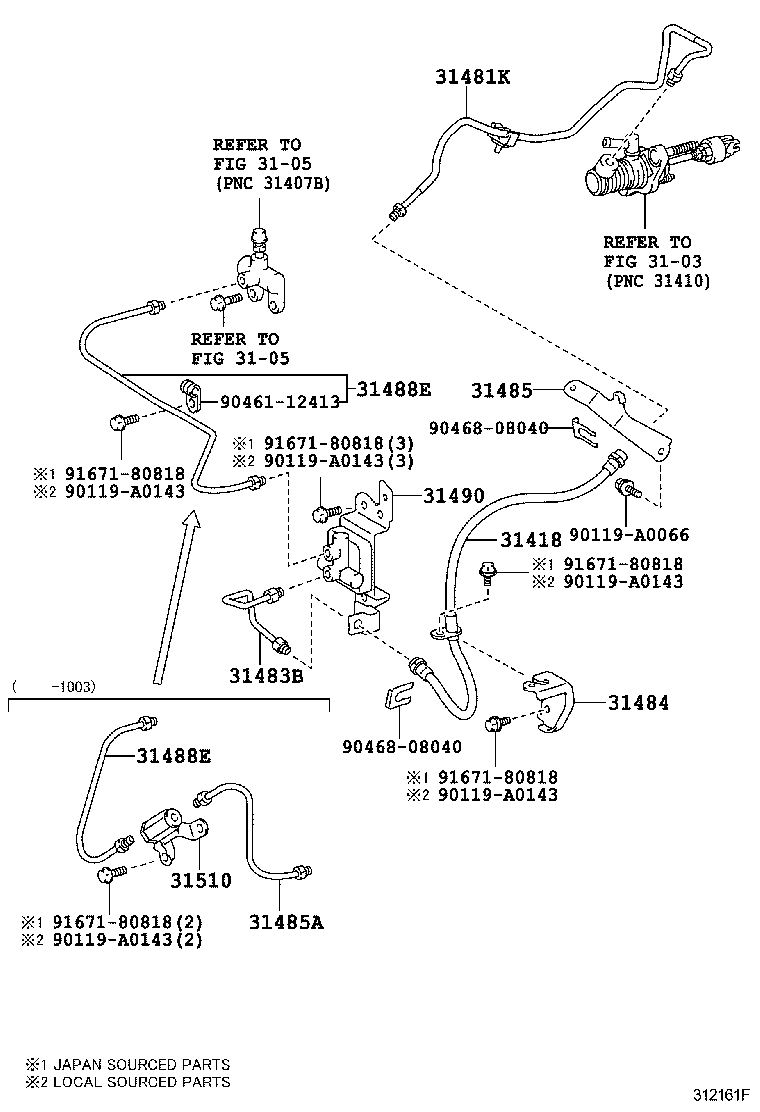

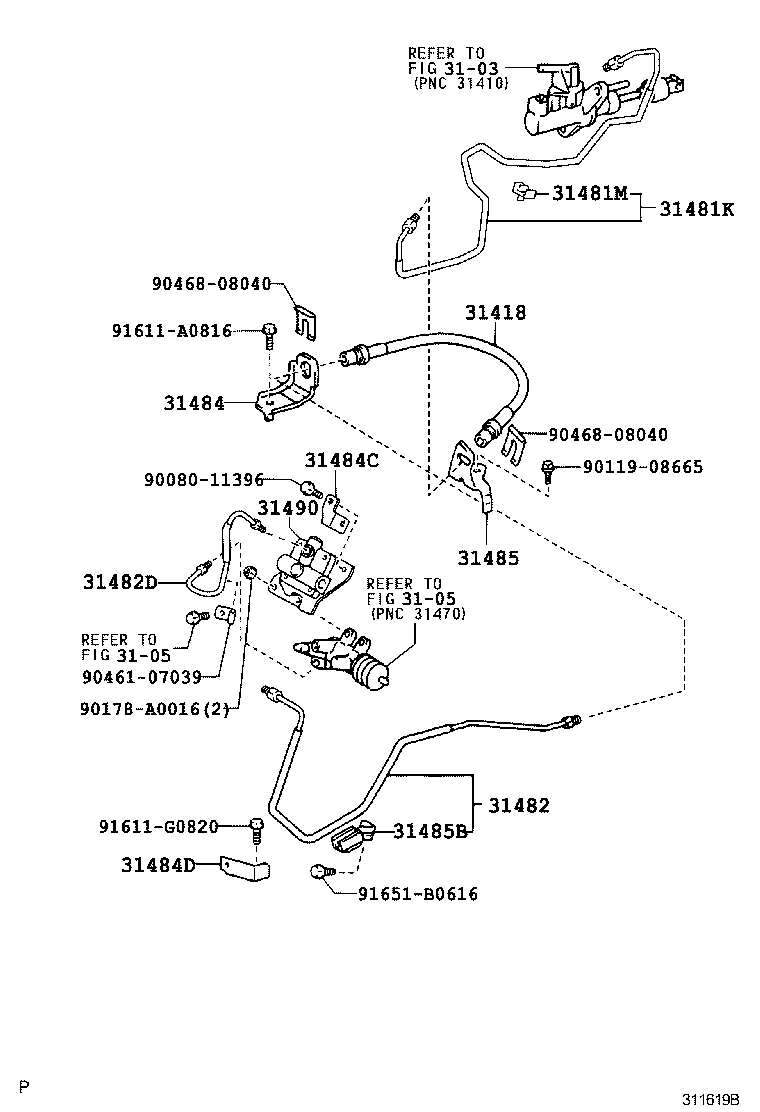

Clutch Pedal & Flexible Hose
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31394A | Spring, Pedal W/Hook |
| 31395 | Hook, Pedal Spring |
| 31395A | Hook, Pedal Spring, NO.1 |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481K | Tube, Master Cylinder TO Tube Connector |
| 31481M | Clamp(FOR CLUTCH MASTER CYLINDER TUBE) |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482D | Tube, Clutch Release Cylinder TO Accumulator |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31484D | Bracket, Clutch Tube, NO.2 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31485A | Tube, Orifice TO Flexible Hose |
| 31485B | Bracket, Tube Clamp |
| 31488E | Tube, Bleeder TO Accumulator |
| 31490 | Accumulator Assy, Clutch |
| 31510 | Orifice Assy, Clutch |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
